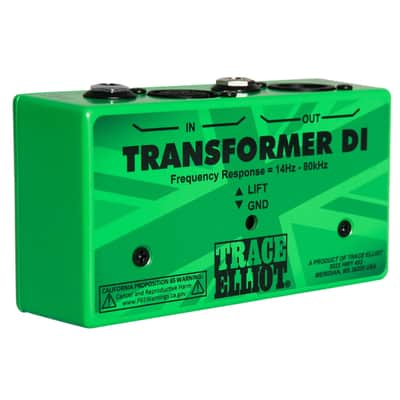

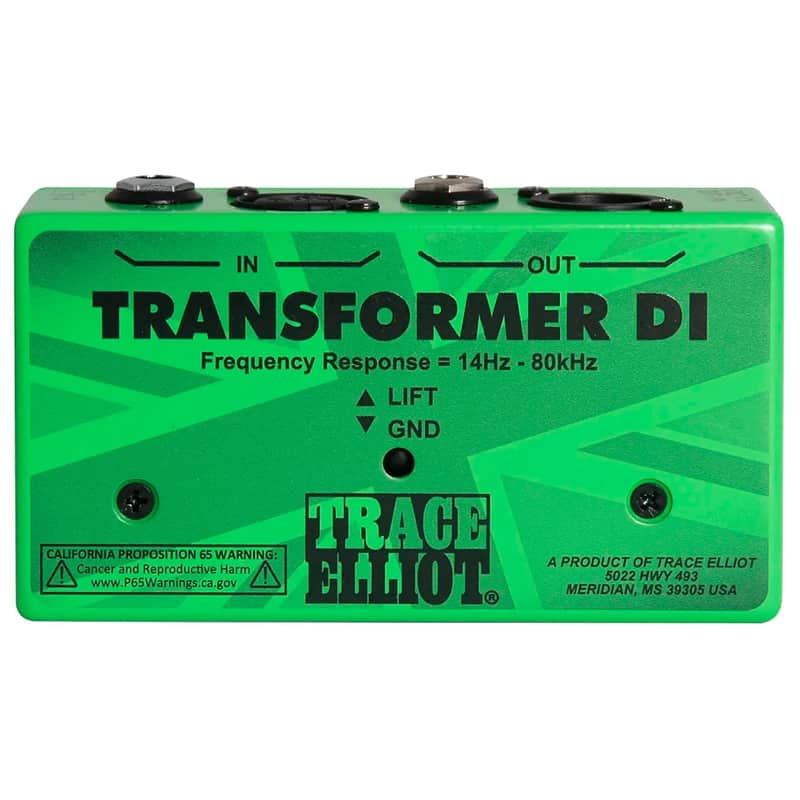

Trace Elliot Transformer DI Pedal

The Trace Elliot Transformer DI Pedal is a professional-grade utility tool designed for musicians who need to handle the conversion of balanced and unbalanced line-level signals all without tonal compromise or signal integrity. Whether you are patching a bass rig into a studio console or resolving ground loop issues on a complex pedalboard, this device delivers 1:1 audiophile-quality conversion with complete transparency.

By maintaining a clean signal path from 14Hz all the way up to 80kHz, it ensures that even the lowest frequencies of a five-string bass are preserved, rather than lost in the conversion process.

Professional Signal Conversion

At its heart, the Transformer DI is an interface engineered for total versatility. It efficiently handles the conversion between balanced and unbalanced line-level signals, allowing you to bridge the gap between various pieces of equipment in your chain. Because it accepts instrument and line-level signals up to +22.2dBu, it is equally adept at handling the high output of an active bass or the specific needs of an acoustic guitar pickup system.

This pedal is a problem-solver for both stage and studio environments. By providing a clean interface that does not colour your sound, it allows your instrument's natural character to shine through, whether you are running a long cable run to a front-of-house desk or integrating outboard gear into your setup.

Audiophile-Grade Transformer Design

The core of this pedalâs performance is its proprietary transformer design, which utilises an ultra-high permeability Ni-Fe core. This construction method provides exceptional electrical isolation between the primary and secondary windings, effectively eliminating noise and interference while maintaining a linear frequency response. With an insertion loss of less than 1.0dB, the unit ensures your signal remains strong and unaffected.

The attention to detail extends to the technical specs, with total harmonic distortion kept below 0.015% in the critical 70Hz to 80kHz range. This level of purity means you can rely on the Transformer DI for high-fidelity recording tasks, where preserving the original tone is paramount, as well as for live performances where clarity is essential to cutting through a mix.

Robust Stage Utility

Built for the realities of gigging, the unit includes an essential ground lift function equipped with RF rejection circuitry. This provides a quick, effective way to eliminate unwanted hums and buzzes caused by ground loops, a common headache for bassists and guitarists playing in venues with inconsistent power. The pedal format ensures it fits neatly onto your pedalboard, offering a reliable, road-ready solution for managing your signal chain.

Trace Elliot Transformer DI Pedal Specifications

• Effect Type - audiophile-quality 1:1 line level audio transformer interface.
• Signal Conversion - transforms balanced to unbalanced line signals, or unbalanced to balanced line signals.
• Frequency Response - 20Hz to 20kHz (-0.5dB), with variation no more than +/-1.0dB from 14Hz to 80kHz.
• Total Harmonic Distortion - <0.015% from 70Hz to 80kHz; 0.5% at 20Hz.
• Insertion Loss - <1.0dB.
• Input Capacity - accepts signals up to +22.2dBu.
• Electrical Isolation - >500V between secondary and primary winding.
• Ground Lift - includes RF rejection circuitry for noise elimination.
• Target Instruments - bass, acoustic guitar, and general line-level sources.

The Trace Elliot Transformer DI Pedal is a reliable choice for any player who requires a transparent, noiseless connection between their gear and a wider system. It provides the essential signal management needed for professional studio work and demanding live scenarios, keeping your tone intact from start to finish.
