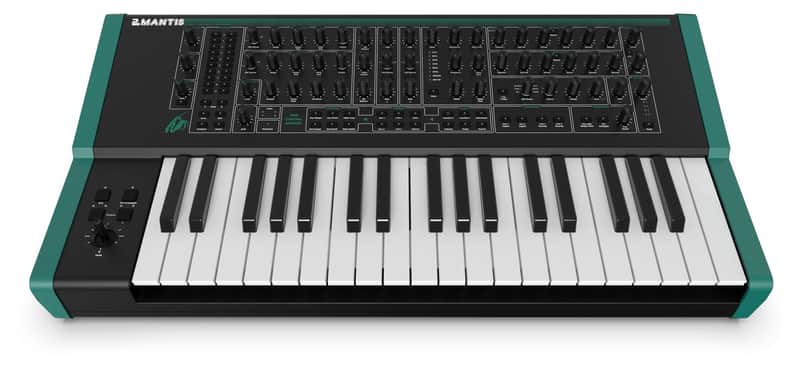

MANTIS IS A UNIQUE DUOPHONIC HYBRID-ANALOGUE SYNTHESISER WITH DUAL FILTER, PATCHES AND FULL USB MIDI CONTROL
Duophonic Hybrid-Analogue Synthesiser
• 200 Patches * All patches in RAM so can be overwritten * Bank A: 100 Factory presets * Bank B: 100 User presets (all set to initial patch) * Compare function * Initialise patch function
• Duophonic with 2 analogue signal paths * Mathematically generated oscillators designed by Chris Huggett * Analogue signal path designed by Chris Huggett
• 2 Oscillators plus sub-oscillator per voice * Sine / Triangle / Saw / Pulse plus additional wave types * Shape control and shape modulation input - Will create pulse width modulation on the pulse waveform with perfect square at the centre * Pitch modulation control * Octave selects per oscillator * OSC 1 SUB follows oscillator 1 parameters
• Oscillator Drift
* Creates random pitch variations between oscillators
• Multi-mode state variable VCA filters with overdrive * 2 Analogue filters - 1 per signal path * Low Pass / Band Pass / High Pass in 12dB and 24dB configurations * Additional WBAND (series) and WSTOP (parallel) types * Filter Cutoff * Filter Cutoff Modulation * Filter Resonance * Filter Width * Filter Width Modulation * Filter Keytrack
• LFO (Low Frequency Oscillator) * 2 LFOs * 4 waveshapes per oscillator * Fade In / Fade Out parameter * SYNCable * Rate control
• Envelopes * 2 Independent envelopes * ENV 1 normalised to amplitude * ADSR * + Sustain Fall parameter for shaping during key-down * + Repeat which can be used to create looping envelopes * Velocity positive and negative control
• Ring modulation
• Mixer * First mix: OSC1 and OSC2 * Second mix: OSCillators and noise * Third mix: OSCillators + noise and Ring modulator
• VCA (Voltage Controlled Amplifier) * All amplification is done in the analogue domain in multi-stage VCAs
• Modulation Routes * Control - 6 choices of modulation parameters * Source - 6 choices of effectors from envelopes and LFOs * Scale - choices of controls used to scale the effect of the modulation
• Glide * Glide amount * Auto-glide mode
• Indicator LEDs * Two LEDs for Voice * LED for Keyboard activity
• Master tune
• Master volume
• Triggering * ENV 1 Legato * ENV 2 Legato
* LFO Keytrig * LFO Keytrig
• CONNECTIONS * Master power switch * DC 9V input * USBC * MIDI IN / OUT / THRU * Sustain pedal input (switch) * Pedal input (continuous) * Stereo 1/4” line Outs: L/Mono and R * Stereo 1/4” headphone out
• Multi-function Joystick control * Left / right for pitch bend * Performable vibrato * Latching hold mode
• Arpeggiator * 6 arpeggiator types - Up, Down, Up/Down 1, Up/Down 2, Played & Random * Sync rates control from 2nds to 32nds * Tap tempo button * Swing including positive and negative swing * Auto clock sync - Detects MIDI or USB-MIDI clock and synchronises the arpeggiator automatically * Latch via joystick HOLD * 6 Octave range
• Dedicated tempo control
• Duophonic mode control * Duo mode * Duo mode with simple filter * Pan control for duophonic voicing
• Digital Effects * Reverb time * Reverb level * Reverb High Pass Filter * Reverb Low Pass Filter * Chorus level * Chorus type
• Keyboard Control * 37 Full-size semi-weighted velocity-sensitive keys * Channel aftertouch * Octave shift
• Weights and Dimensions (product unboxed) * 620 x 320 x 110 mm * 5.3 kg
Includes: * Power Supply (9V 600mA) * USB C lead * Getting Started Guide
Price$1,349
Free Shipping
from Royal Oak, MI
30-Day Return Policy
Enjoy peace of mind with your new gear
