About this listing

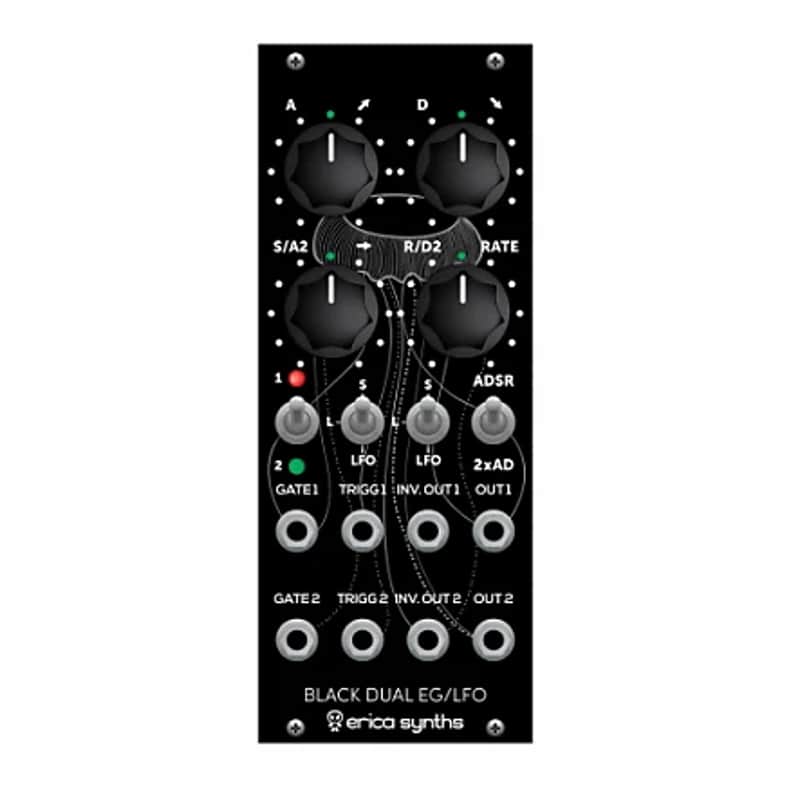

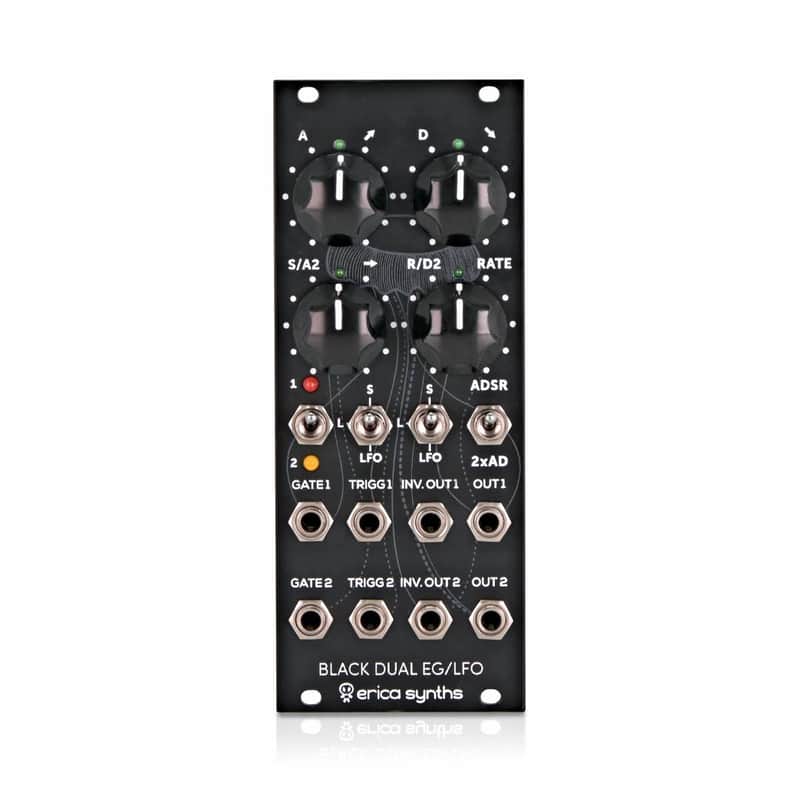

Erica Synths Black Dual EG/LFO has two full ADSR EGs and two unique LFOs with plenty of features just in 10HP! Features 2xADSR envelope or 2xASR envelope2xLFODraw your own LFO shape!Gate and Trigger inputsDirect and Inverter outputsLong/Short EG switchFull ADSR loopingLFO key follow functionEach step activity indication LEDsDiode protection on reversed power supply We managed to put two full ADSR envelope generators that you can adjust one by one or two simultaneous AD/ASR envelope generators and a unique, never seen before functionality LFO in just 10HP! This saves a lot of rack space that you can use for other Black Series modules!Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.Technical specifications:EG Output signal level0 – +10VLFO output signal level-5V – +5VLFO rate0,2Hz – 30HzSustain level0 – +10VMax Attack time0,125’’(S), 2’’(L)Max Decay time0,125’’(S), 1’’(L)Max Release time0,350’’(S), 5’’(L)Power consumption+25mA, -15mAModule width10HPModule depth25mm
Price$199
+ $10 Shipping
