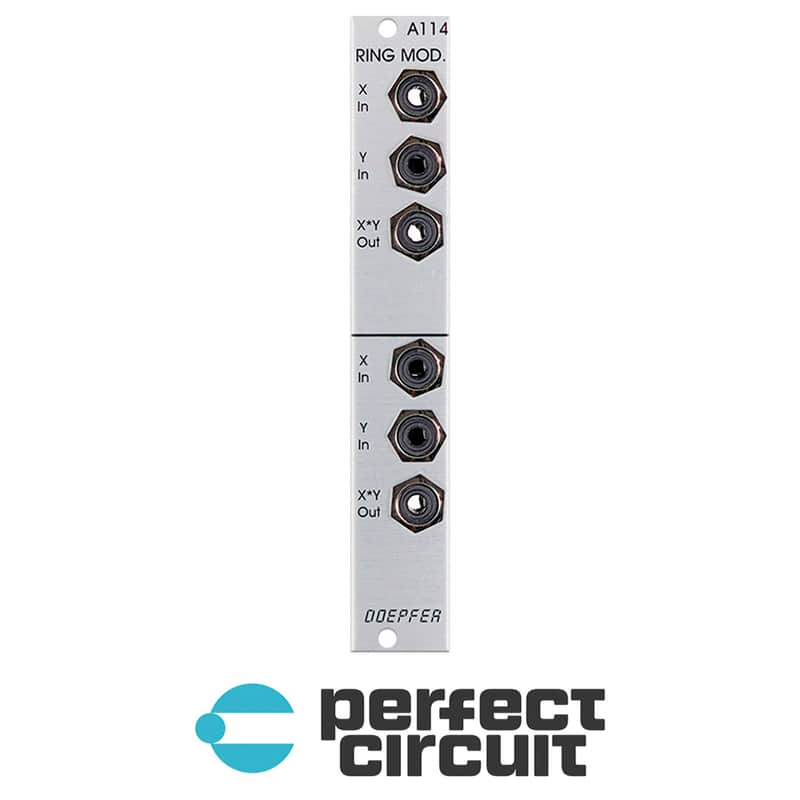

Doepfer A-114 Module A-114 contains two separate ring modulators. A ring modulator outputs the product (Multiplication X • Y) of the signals at inputs X and Y. It's similar to a VCA, but whereas a VCA only responds to positive voltages at the inputs (2-quadrant multiplication), the ring modulator responds to both positive and negative voltages (4-quadrant multiplication).The ring modulator thus provides a refinement of amplitude modulation (AM). Ordinary amplitude modulation will output the original carrier frequency fC as well as the two side bands (fC - fM, fC + fM) for each of the spectral components of the carrier and modulation signals - but ring modulation cancels out the carrier frequencies, and just lets the side-bands pass to the output (see Fig. 1).A ring modulator is used for the production of bell-like sounds, alien voices, or just to produce new timbres. A-114 Features Dual ring mod for classic synthesizer timbresDoubles as a dual VCA when fed only positive modulation signalsCompact Size!
Price$98
Free Shipping
Free Shipping
from Burbank, CA
30-Day Return Policy
Enjoy peace of mind with your new gear
1
3 in stock
