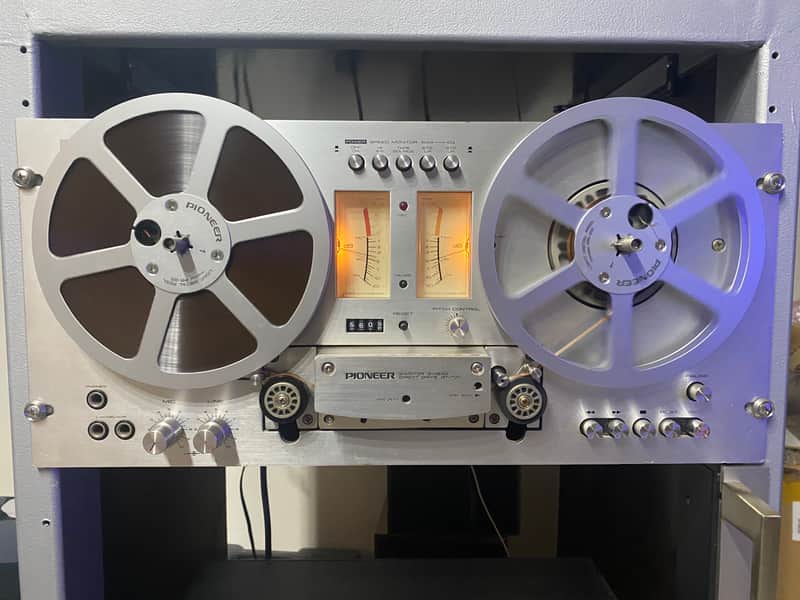

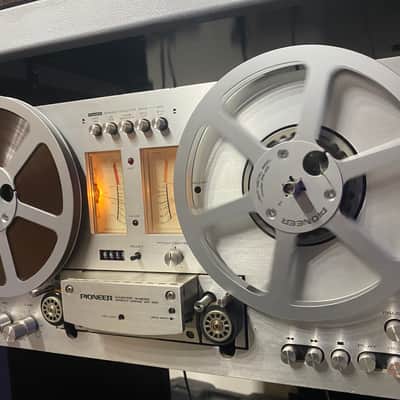

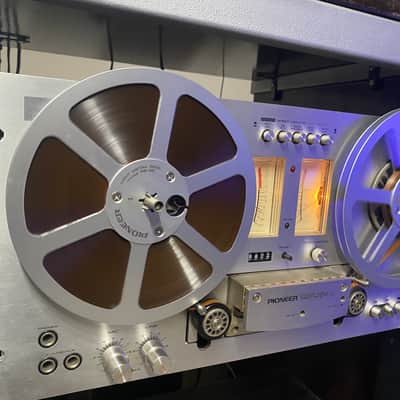

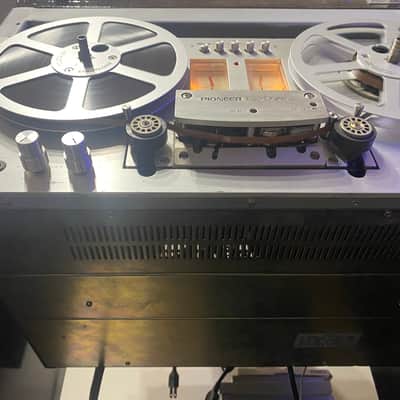

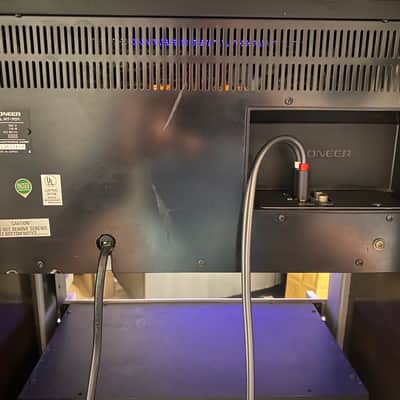

Pioneer RT-701 in good condition and fully operational.

Manufacturer: Pioneer

• Model: RT-701
• Type: 4-track stereo reel-to-reel tape
• Years of manufacture: 1976 - 1981
• Made in: Japan
• Color: Silver
• Remote control:
• Power consumption: 115 W
• Dimensions (WxHxD): 480 x 230 x 356 mm
• Weight: 19.5 kg

Connections

• Inputs:
• • Line In : 50 mV / 100 kOhm

Line In DIN: 15 mV / 1.5 kOhm

• • Microphone: 0,25 / 27 kOhm
• Outputs:
• • Line Out: 450 mV / 50 kOhm

Line Out DIN: 316 mV / 50 kOhm

• • Headphone: 60 mV / 8 Ohm, stereo 6.3mm jack

Technical Data

• Max. Coil diameter: 18 cm
• Drive: 3 motors, 2x bobbins, 1x capstan
• Heads: 4, 2x playback, 1x record, 1x erase
• Tracks: 4-track, 2-channel stereo
• Tape speeds:
• • 9.5 cm/s: ± 0,8 %
  • 19 cm/s: ± 0,8 %
• Synchronization fluctuations:
• • 9.5 cm/s: < 0.08% (WRMS)
  • 19 cm/s: < 0.05% (WRMS)
• Frequency response:
• • 9.5 cm/s: 30 - 20'000 Hz, ± 3 dB

19 cm/s: 20 - 28'000 Hz, ± 3 dB

• Distortion factor: < 1 %
• Fremdspannungsabstand: >58 dB
• Crosstalk attenuation: > 50 dB
• Channel separation: > 50 dB
• Equalization: NAB
• Cancellation attenuation: > 70 dB
• Premagnetization and cancellation frequency: 125 kHz

Special Features

• Bias 2-stage
• Equalization 2-stage
