HD I/O is a multi-channel digital audio interface designed for use with Pro Tools|HD and Pro Tools|HD Native systems.

HD I/O features 24-bit analog-to-digital (A/D) and digital-to-analog (D/A) converters, and supports sample rates of up to 192 kHz.

This HD I/O comes 8x8x8 configuration: 8 analog in, 8 analog out, and 8 digital in and out)

Cards can be removed and swapped for a different configuration.

HD I/O provides up to sixteen discrete channels of Pro Tools input and output, each with a 4-segment LED meter. The total available analog and digital I/O is dependent on the configuration of Analog and Digital Expansion I/O cards installed in HD I/O.

Analog I/O

• Up to sixteen channels of 24-bit D/A and A/D converters for superior analog input and out- put at sample rates of 44.1 kHz, 48 kHz,

88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz with Analog In and Analog Out HD I/O cards

• Soft Clip and Curv limiting circuits to protect against clipping on analog input

Digital I/O

• Up to sixteen channels of 24-bit digital I/O, using AES/EBU, TDIF DB-25, or Optical at sample rates of 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz with a Digital HD I/O card

• Real-time sample rate conversion on digital inputs with a Digital I/O card (up to sixteen channels of AES/EBU, Optical, or TDIF)

• SupportforS/MUXOpticalforsampleratesof 88.2 kHz and higher

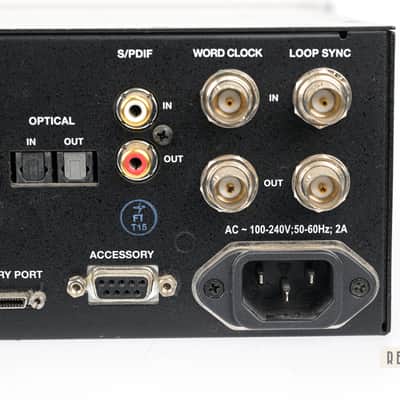

• Support for 2 channels of S/PDIF Optical (en- closed) with sample rates of up to 96 kHz

• 2 channels of AES/EBU I/O (enclosed) with support for sample rates up to 192 kHz

• 2 channels of 24-bit-capable S/PDIF I/O (en- closed) with support for sample rates up to 192 kHz

Synchronization

• Loop Sync input and output for connecting additional Pro Tools|HD interfaces and peripherals

• External Clock input and output for synchronizing HD I/O with external Word Clock devices

Expandability

• Optional addition of I/O cards to expand analog or digital I/O

• Simultaneous use of multiple Pro Tools|HD audio interfaces to further expand system input and output

Excellent working and visual condition, carefully serviced and cleaned by our tech team.

Serial no: #ACDCP11700097E

PSU works on 100-240V. EU power cord included.

We ship worldwide, feel free to ask for a precise shipping quote.

Price shown in EU includes 24% VAT unless you have entered your valid EU VAT number to your Reverb account. VAT can be deducted if you have a company with a valid EU VAT number or if you're based outside of EU. Non-EU buyer pays any import duties and tax as regulated by their local customs.
