Obsidian Custom 7-Way / Gilmour Mod For Strat® Gen 2 2026

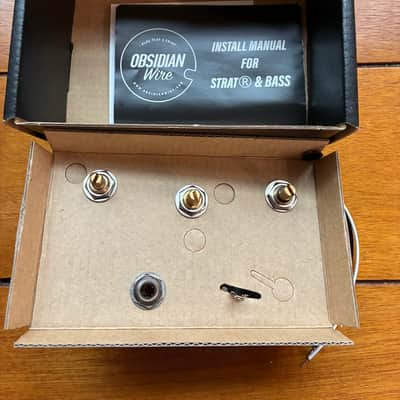

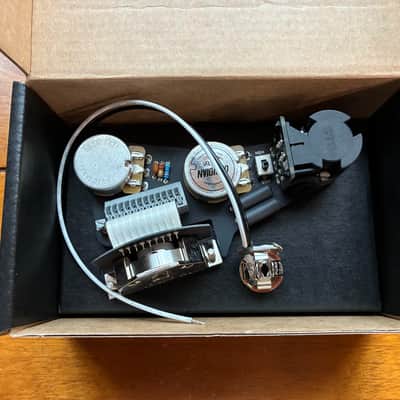

Nearly new Obsidian no-solder Stratocaster harness for USA Strats, fits Mexican models with slight modifications (see Obsidian website for details). This is a very easy install for most with some aptitude. Obsidian site has all the instructions, color coding for diff pick up mfgs and easy install instructions and videos. obsidianwire.com

This is a great way to easily install and change out pick ups yes, but it also is an upgrade as the the components are first rate. The treble bleed is fantastic! This is a great set up, only reason i'm selling is I'm moving to an SSS config.

• For HSS & HSH Strat® (Switchable Modes)
• Intelligent Switching
• 500k for Humbucker Clarity
• 250k for Single Coil Warmth
• Crystal Clear Tone (Treble Bleed)
• Smooth Tone Control
• '7-Way' Switching (Gilmour Mod) Upgrade Option
• Fits Fender® HSS & HSH Strat®
• Fits Squier® HSS & HSH Strat® with Adjustments
• Includes Pro-Wired Jack

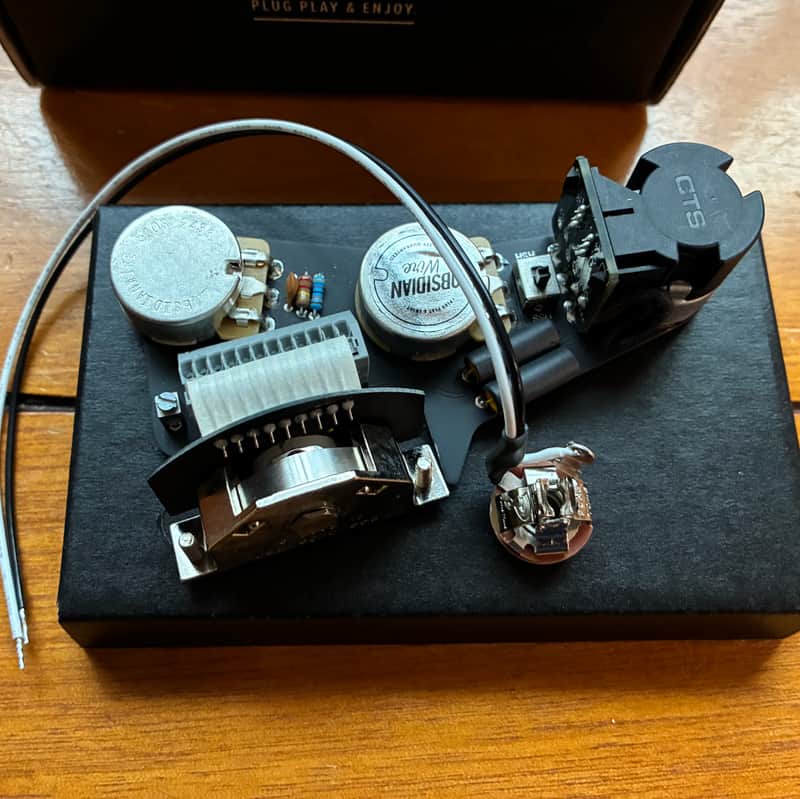

PREMIUM HSS STRAT WIRING HARNESS - NOW FOR HSH STRATOCASTER® TOO...

Our all new 'Gen2' HSS Strat wiring harness incorporates intelligent switching to give you the full clarity of your humbuckers AND tame your single coils, more useable tone and volume controls, greater clarity and an on board 'Mode' switch to allow you to switch between HSS & HSH modes. For ultimate versatility, we also offer you a 7-way switch upgrade option.

INTELLIGENT SWITCHING

Optimized for humbuckers & single coils. When building an HSH or HSS Stratocaster, there is a toss-up between choosing 500k controls to retain the life of a humbucker, or 250k controls to balance brighter single coils.

We use Obsidian® Intelligent Switching to give you the absolute best of both your humbuckers and single coils with a wiring harness that will automatically switch between the two.

AUTO SPLIT

A balanced humbucker & single coil combo. Achieving the right balance between your humbuckers and single coils is an important part of hearing the full dynamics of both pickups together. With Obsidian® auto split, your humbucker automatically splits into singlecoil mode when matched with your other singlecoils on the selector switch.
- Requires split coil compatible humbuckers

CRYSTAL CLEAR TONE (TREBLE BLEED)

Retain clarity at lower volumes. To make your tone crystal clear at lower volumes we include an Obsidian® Custom spec treble bleed mod. This prevents tone 'muddiness' at low volumes by allowing high frequencies to pass along a separate path to your amp, rather than being stopped short by the increasing resistance at the volume control.

7-WAY SWITCH // GILMOUR MOD - UPGRADE OPTION

The sweetest bell like Strat® tone. The Obsidian® 7-Way Switch allows you to play your neck and bridge pickups together for the sweetest bell like tones, or even all three pickups together. The switch is built in to your tone control by use of a push/pull pot, so no extra mods are required to your guitar.
