ART DualZDirect Dual Passive Direct Box

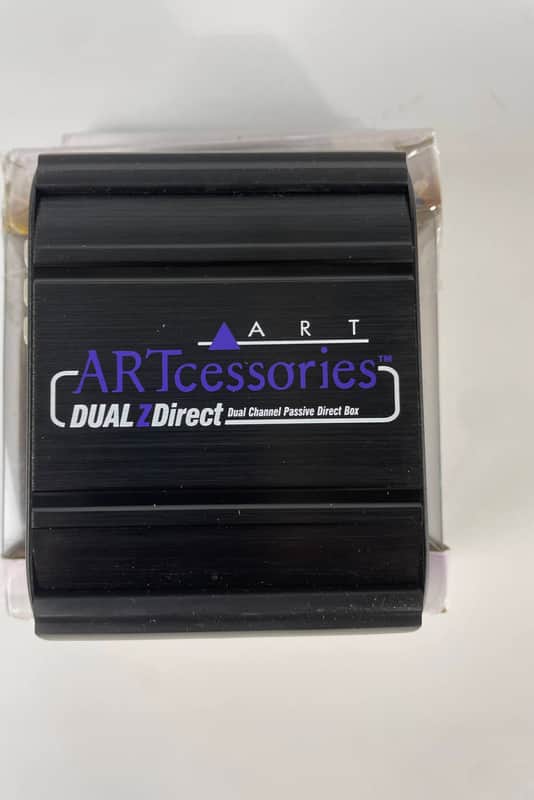

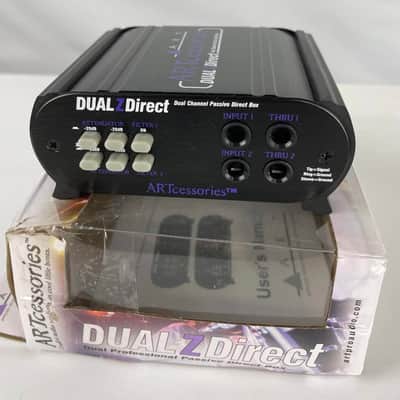

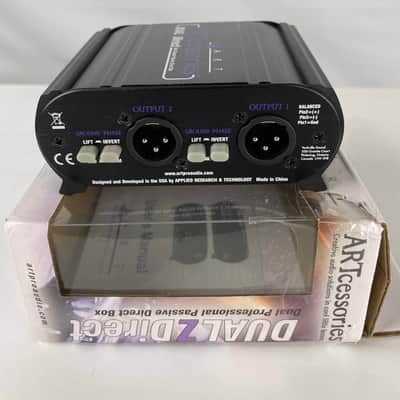

Damage: None. Note: Open box - Wear and tear on the original packaging.

The DualZDirect is a 2-channel passive direct box for connecting unbalanced instrument, line, or speaker signals to balanced inputs. Each input signal is sent to a transformer-isolated XLR output and a parallel Thru jack so it can simultaneously be connected to an amplifier on stage. Front panel switches engage up to 40 dB of attenuation to accommodate high-level signals, and a low-pass Bessel filter to eliminate high-frequency interference. Rear switches activate a ground lift to reduce hum, and invert the signal polarity to resolve phase issues, such as those which can occur when combining DI and mic sources. As a fully passive design, the PDB doesn’t require an external power source. Passive DIs are often a great match for powered sources such as synthesizers or guitars and basses with active preamps. Simple and durable, the DualZDirect is a compact DI in a rugged aluminum enclosure with two indpendent channels and a versatile feature set.

Product Features

• 2 Independent Channels
• 1/4" TRS Inputs and Thru Connectors
• Balanced XLR Outputs
• Switchable Attenuation (-20 dB, -40 dB) per Channel
• Switchable Low-Pass Filter, Ground Lift, and Phase Invert per Channel
• Passive Design - No Power Required

Technical Specifications

• Features: Ground Lift
• Active/Passive: Passive
• # of Channels: 2
• Dimensions: 1.85" H x 3.9" W x 4.6" D
• Inputs: 2 x 1/4" TRS
• Outputs: 2 x XLR, 2 x 1/4" TRS Thru
• dB Pad: -20 / -40 dB
