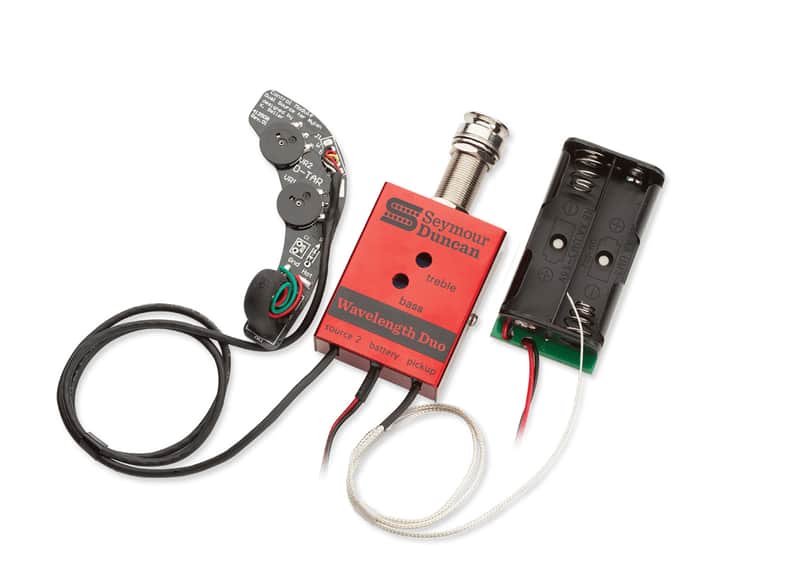

Seymour Duncan Wavelength™ Duo Steel Nylon String Pickup

The Wavelength Duo combines a piezoelectric under-saddle pickup with an integrated condenser microphone to capture both the direct string vibration and the acoustic character of your instrument. The dual-source design lets you blend these two independent channels for a natural amplified tone that preserves the complexity of nylon or steel strings. This is a serious tool for players who need authentic acoustic amplification without sacrificing control or feedback rejection.

Dual-Source Capture & Blending

A piezoelectric co-polymer under-saddle pickup and a miniature omni-directional electret condenser microphone work independently, each feeding its own volume control. The microphone sits in a special absorptive visco-elastic polymer shock mount that isolates it from vibration noise while letting you dial in room tone and body resonance. Two lightweight, low-profile knobs let you adjust master volume and microphone level separately, giving you precise control over the blend.

Electronics & Feedback Control

An 18-volt, low-noise, high-input impedance preamp delivers twice the dynamic range of typical 9-volt systems, powered by two AA batteries. The microphone channel includes two stages of low-frequency roll-off to combat low-frequency feedback, while full coverage copper shielding protects the pickup from external electromagnetic noise. Stereo wiring is available to keep the pickup and microphone channels completely separate through your mixing or amplification chain.

Key Features

• Piezoelectric co-polymer under-saddle pickup element
• Miniature omni-directional electret condenser microphone
• Microphone mounted in absorptive visco-elastic polymer shock mount
• 18-volt preamp with twice the dynamic range of 9-volt systems
• Two AA batteries power the preamp
• Separate master volume and microphone volume controls
• Two stages of low-frequency roll-off on microphone channel
• Full coverage copper shielding for noise immunity
• Stereo wiring option available to separate pickup and mic channels
• Available for both nylon-string and steel-string instruments

The Wavelength Duo excels when you need the natural resonance of a microphone without fighting feedback, and the articulation of a piezo without losing body tone.
