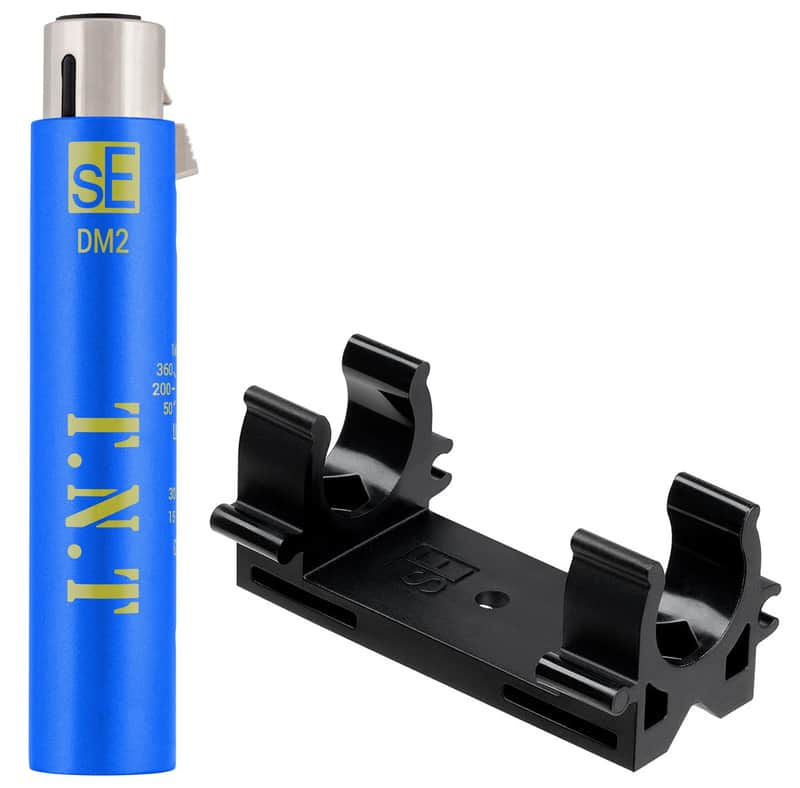

Se Electronics DM2 TNT Metal Microphone Preamp For Ribbon Mics+Mounting Clip

Package Includes:

• (1) Se Electronics DM2 TNT Metal Microphone Preamp For Dynamic+Passive Ribbon Mics
• (1) Se Electronics DM PRO CLIP Modular Mounting Clip for DM1/DM2 Preamps+DM3 DI

What's in the box:

• DM2
• sE Logo Sticker
• User Manual with Warranty Card

Description:

Explosive level for all your passive mics
The DM2 TNT lets you choose between a moderate +15dB or explosive +30dB of gain with an ultra-high impedance input and eight load settings to perfectly match any passive microphone.

Features:

• Now also available in a matte-black finish
• Switchable, clean and consistent gain from moderate +15dB to explosive +30dB
• Eight load settings ranging from 50 ohms to stunningly high 10 mega ohms to precisely match any mic
• Sophisticated class-A design and specially-selected high-grade FETs for a signal boost without coloration
• Vastly lower output impedance and nearly half the noise of anything else on the market to raise any mic level with clarity
• All-metal housing and premium finish ensures the DM2 can handle demanding on-tour or recording/broadcast studio lifestyles
• Gold plated XLR connector for loss-free reliable signal connection

Specifications:

• Recommended Use:
  • Dynamic & passive ribbon microphones
• Power:

  • Electrical Impedance: 135 Ohms
  • Recommended Load Impedance: >1K Ohms
  • Connectivity: 3-pin male/female XLR connector
  • Powering: 48V Phantom Power (P48 according to IEC 61938)
• Sound:

  • Frequency Range: 10 Hz - 120 kHz (-0.3 dB)
  • Gain: 15 dB / 30 dB
  • Current Consumption: 3.1 mA
  • Max Output Level (0.5% THD): 9.5 dBV (3.0 V)
  • Output Noise Level: 1 μV @ 15 dB / 6.6 μV @ 30 dB
• Dimensions:

  • Preamp Diameter: 19 mm (0.75 in.)
  • Preamp Length: 96 mm (3.78 in.)
  • Preamp Weight: 80 g (2.82 oz.)

Description:

A smart, interlocking clip providing secure, reliable mounting for the DM series attenuators and active inline DI

Recommended Use
The  DM Pro Clip is a smart, interlocking mounting solution for sE’s DM Series attenuators and active inline DIs. Designed to securely hold inline devices in place, it helps keep signal chains tidy, stable, and worry-free in professional audio environments.

Suitable for:

• DM1

• DM2

• DM3
