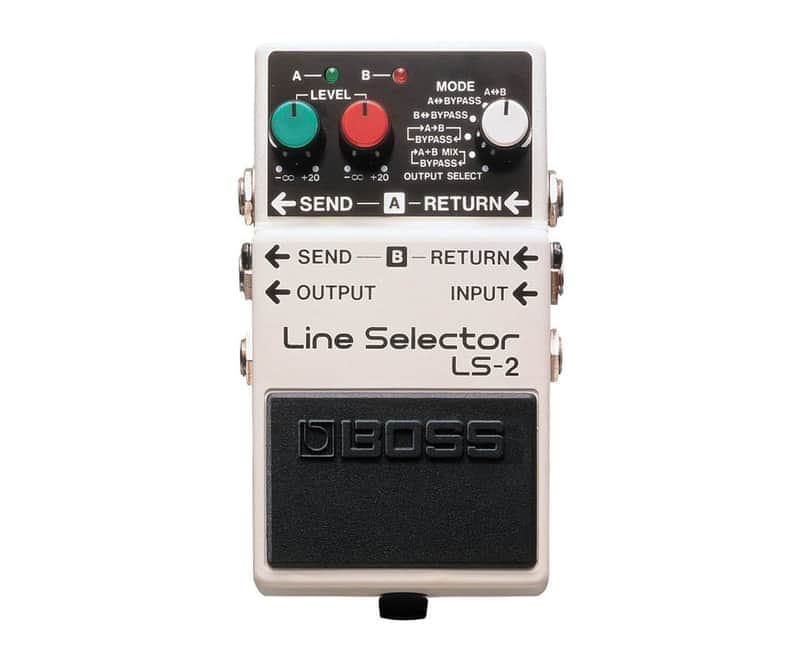

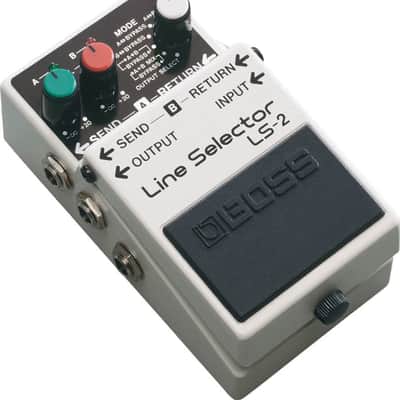

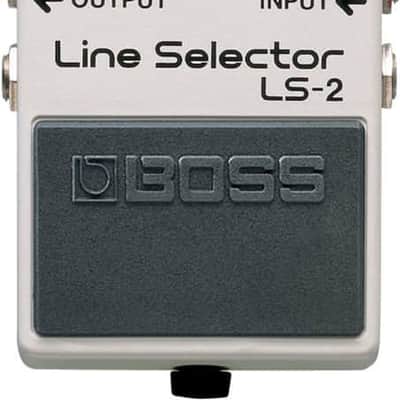

The LS2 makes it easy to switch settings among several effects and to route input and output signals. Two line loops and 6 looping modes provide a wide variety of applications. Used with an AC adapter, the LS2 can also supply 9V DC power to up to 7 other Boss compact pedals. This makes it an ideal power supply and master switching unit for multiple effects setups.

Features

• Compact line selection pedal for connecting and switching between multiple amplifiers and effects devices
• Provides two line loops with Level control and six looping modes
• Can supply power to several BOSS compact pedals when used with an AC adaptor
• The ideal power supply and master switching unit for multiple effects setups
• Nominal Input Level : -20 dBu
• Input Impedance : 1 M ohm
• Nominal Output Level : -20 dBu
• Output Impedance : 1 k ohms
• Recommended Load Impedance : 10 k ohms or greater
• Bypass : Buffered  bypass
• Controls : Mode selector switch
• Level knobs A/B
• Pedal switch
• Indicator : Line indicator A/B (Used for indication of check battery)
• Connectors : INPUT jack: 1/4-inch phone type
• Send jacks A/B : 1/4-inch phone type
• Return jacks A/B : 1/4-inch phone type
• Output Jack : 1/4-inch phone type
• Dc In/Out Jack
• Power Supply : Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
• AC adaptor (PSA series: sold separately)
• Current Draw : 30 mA
• Expected battery life under continuous use : Carbon: Approx. 14.5 hours
• Alkaline : Approx. 29.5 hours
• These figures will vary depending on the actual conditions of use.
• Accessories : Leaflet ("Using The Unit Safely," "Important Notes," And "Information")
• Carbon-zinc battery (9 V, 6F22)
• Options :  (sold separately)AC adaptor: PSA series
• Parallel DC Cord : PCS-20A
