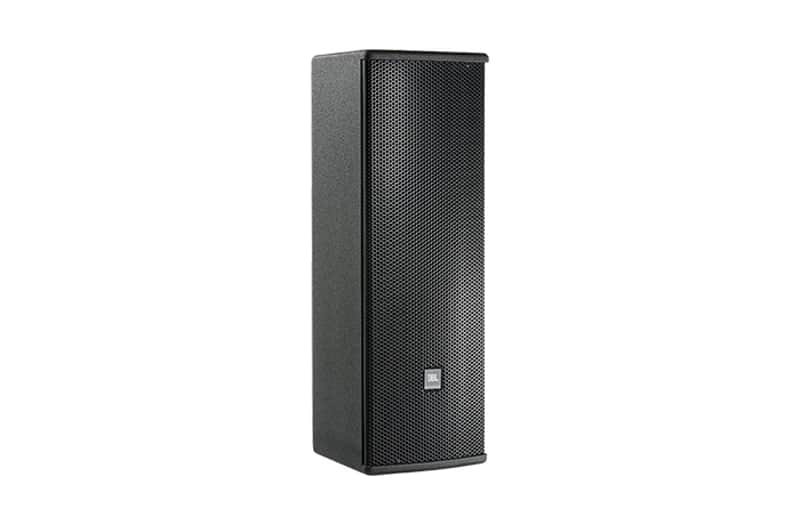

JBL AC28/95 Compact 2-Way Loudspeaker with 2 x 8 LF

JBL AC28/95 Compact 2-Way Loudspeaker with 2 × 8 LF

The AC28/95 is a versatile compact loudspeaker engineered for installed sound, portable reinforcement, and live event applications where controlled directivity and consistent output are essential. Its dual 8-inch woofer configuration delivers authoritative low-end response in a footprint small enough for versatile deployment, while the compression driver high-frequency section ensures clarity across speech and music content.

Acoustic Performance and Coverage

This system achieves a 120 dB maximum SPL at 1 meter with 94 dB system sensitivity, making it capable of substantial sound pressure levels without requiring excessive amplifier headroom. The 90° × 50° coverage pattern provides controlled directional output ideal for fixed installations and staged applications where coverage precision matters.

Durability and Connectivity

Constructed from 12 mm and 15 mm exterior grade multi-ply hardwood plywood with Black DuraFlex™ finish, the enclosure is built to withstand regular transport and installation demands. Dual Neutrik NL4 plus screw terminal connectors accommodate both professional speakon and traditional wired approaches, while six M8 suspension points enable secure rigging in any orientation.

Key Features

• 2 × JBL 228J 205 mm (8 in) woofers with 64 mm edge wound voice coils
• 1 × JBL 2408H-1 compression driver with 25 mm exit and 38 mm voice coil
• Passive crossover design
• Frequency Response ±3 dB: 65 Hz – 20 kHz
• Frequency Range (−10 dB): 53 Hz – 20 kHz
• Power Rating: 375W Continuous / 750W Program / 1500W Peak
• Coverage Pattern: 90° × 50°
• 8 Ohms nominal LF driver impedance
• Dimensions: 679.5 × 237.5 × 254.0 mm (26.8 × 9.4 × 10.0 in)
• Net Weight: 18.6 kg (40.9 lb)
• Six M8 suspension points (1 top, 3 bottom, 2 rear)
• Dual Neutrik NL4 plus screw terminal connectors

The AC28/95 combines professional acoustic engineering with straightforward rigging and connectivity, delivering consistent performance across installed venues, touring rigs, and temporary event installations.
