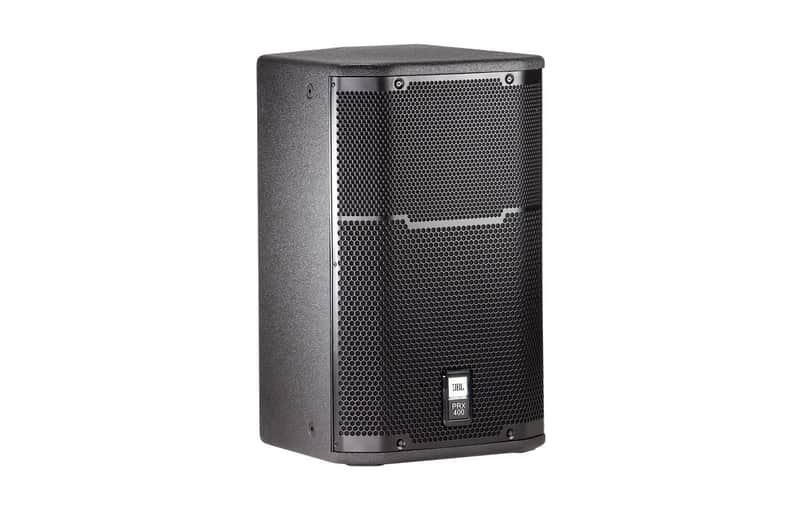

JBL PRX412M 12" Two-Way Stage Monitor and Loudspeaker System

The PRX412M is a compact, lightweight workhorse designed to deliver consistent output across live performance, stage monitoring, and speech reinforcement applications. At 35 lbs with a footprint of 22.6" x 13.9" x 15.7", it balances portability with serious acoustic capability, making it equally at home on a tripod or suspended from rigging points.

Audio Performance & Coverage

This two-way system pairs a 12" woofer with a 1" polymer diaphragm compression driver to achieve a 95 dB SPL sensitivity (1W@1m) and a rated maximum output of 126 dB SPL peak. The 90° x 50° coverage pattern ensures even, smooth response both on and off axis, while the frequency response of 62Hz–19kHz (±3dB) and full range down to 50Hz (–10dB) handles everything from kick drum to vocals without gap or coloration.

Design & Build Quality

The PRX412M employs a birch/poplar multi-laminate hardwood enclosure finished in tough DuraFlex™ for road durability. A 16-gauge protective steel grille backed with acoustically transparent cloth guards the drivers, while SonicGuard™ high-frequency driver protection prevents damage from excessive power handling without interrupting performance. Dual-angle pole sockets and twelve M10 suspension points constructed from 14-gauge steel provide flexible mounting options for both temporary and light-duty permanent installations.

Key Features

• 12" woofer and 1" polymer diaphragm compression driver
• Power Rating: 300W Continuous / 600W Program / 1,200W Peak
• Nominal Impedance: 8 ohms
• Frequency Range (–10dB): 50Hz–20kHz
• Frequency Response (±3dB): 62Hz–19kHz
• System Sensitivity: 95dB SPL (1W@1m)
• Rated Maximum SPL: 126dB peak
• Coverage Pattern: 90° x 50° nominal
• Parallel Neutrik® Speakon® NL-2 / ¼" phone combination jacks
• Dual-angle pole mount sockets with twelve M10 suspension points
• Birch/poplar multi-laminate hardwood enclosure with DuraFlex™ finish
• 16-gauge protective steel grille with acoustically transparent cloth backing
• SonicGuard™ high-frequency driver protection
• Net Weight: 35 lbs (16 kg)

The PRX412M combines proven JBL engineering with practical field design, delivering reliable output and controlled coverage for touring musicians, live sound engineers, and venues requiring dependable monitor and reinforcement capability.
