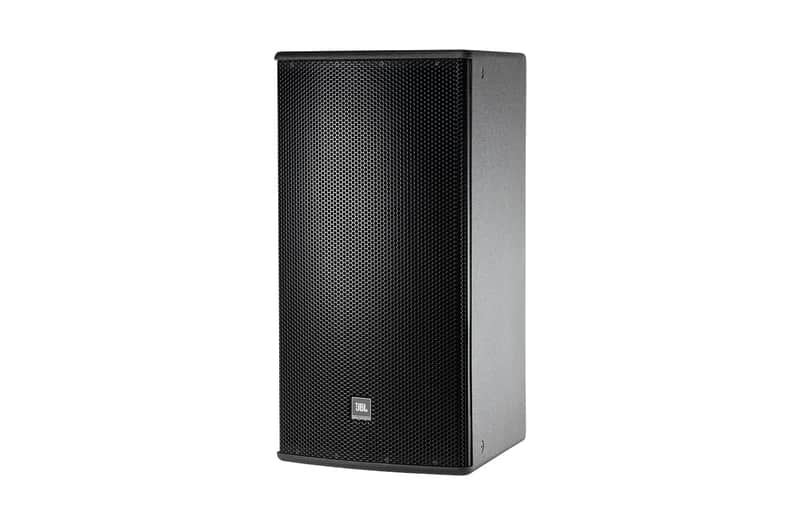

JBL AM7215/26 High Power 2-Way Loudspeaker with 1 x 15 LF & Rotatable Horn

JBL AM7215/26 High Power 2-Way Loudspeaker with 1 x 15 LF & Rotatable Horn

The AM7215/26 is a professional-grade 2-way system engineered to deliver commanding lows and articulate highs with impressive immediacy and clarity. The 15-inch woofer provides a deep, room-filling foundation that makes bass frequencies feel tangible and present, while the rotatable horn lets you dial in perfect high-frequency dispersion for any space. This is the kind of dependable reinforcement designed for live band work, DJ sets, theater productions, and larger venues where articulate sound is non-negotiable.

Audio Performance & Coverage

The AM7215/26 delivers 124 dB SPL continuous average (130 dB peak) in passive mode, with capability to reach 128 dB SPL continuous average (134 dB peak) in bi-amp mode for the low-frequency driver. A 120° x 60° coverage pattern with rotatable waveguide ensures even sound distribution across your venue, while the 96 dB system sensitivity (1W @ 1m) provides efficient power conversion for extended output.

Driver Design & Construction

The system pairs a 2265H 380 mm (15 in) low-frequency driver with JBL Differential Drive dual voice coil and dual magnetic gap architecture alongside a 2432H high-frequency compression driver (75 mm / 3 in voice coil, 38 mm / 1.5 in exit). The enclosure is constructed from multi-ply birch with JBL's rugged DuraFlex™ finish and fitted with fifteen M10 threaded attachment points for secure rigging and installation.

Key Features

• Frequency Range (-10 dB): 34 Hz – 20 kHz
• Frequency Response (±3 dB): 40 Hz – 18 kHz
• System Sensitivity: 96 dB SPL (1W @ 1m, passive mode)
• Maximum SPL (passive mode): 124 dB-SPL continuous average, 130 dB peak
• Maximum SPL (bi-amp mode): LF 128 dB-SPL continuous / 134 dB peak; HF 133 dB-SPL continuous / 139 dB peak
• 2265H 380 mm (15 in) low-frequency driver with dual voice coil and dual magnetic gap
• 2432H high-frequency compression driver (75 mm voice coil, 38 mm exit)
• 120° x 60° coverage pattern with rotatable waveguide
• Passive crossover at 1.4 kHz with bi-amp/passive switchable modes
• Long-term power rating (IEC, passive): 600 W (2400 W peak), 100 hrs
• Multi-ply birch enclosure with DuraFlex™ finish and 14-gauge steel grille
• Fifteen M10 threaded attachment points for rigging and mounting

The AM7215/26 combines robust engineering, high directivity, and professional-grade power handling into a system that delivers transparent, dependable reinforcement across a broad range of live sound and installed audio applications.
