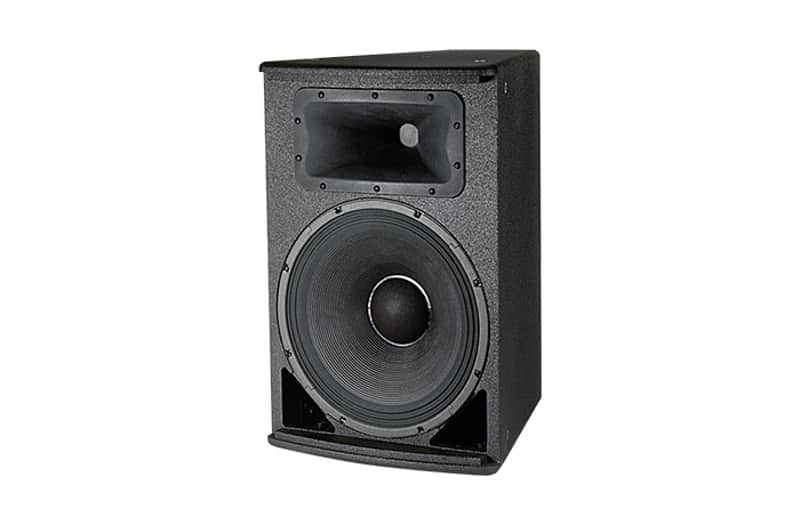

JBL AC2215/64 Compact 2-Way Loudspeaker with 1 x 15 LF

JBL AC2215/64 Compact 2-Way Loudspeaker with 1 x 15 LF

The AC2215/64 delivers authoritative punch and warmth through its genuine 15-inch woofer, giving bass and kick drums that chest-hitting presence without strain. The compact yet powerful 2-way design responds immediately to dynamic input, offering crisp highs and articulate mids that sit beautifully alongside deep, musical lows. Quick transient response lets every note breathe naturally, making this speaker equally at home in jazz clubs, theater productions, worship settings, and intimate rock venues where precision matters.

Acoustic Performance & Coverage

The AC2215/64 achieves a system sensitivity of 97 dB SPL (1W @ 1m in passive mode) with a maximum continuous output of 121 dB SPL (127 dB peak), delivering full-range tone from 50 Hz to 17 kHz (±3 dB). Its 60° x 40° coverage pattern ensures even sound distribution across medium-sized venues without dead zones or excessive reflections.

Driver Configuration & Crossover Design

Built around a 380 mm (15 in) low-frequency driver paired with a 38 mm (1.5 in) exit compression driver featuring a voice coil of 25 mm (1 in), the AC2215/64 uses PT Progressive Transition waveguide technology for coherent off-axis response. The switchable bi-amp/passive crossover with 4th order (24 dB/oct) Linkwitz-Riley slopes at 2.2 kHz ensures clean frequency separation and flexible deployment options.

Key Features

• One 380 mm (15 in) low-frequency driver with high-excursion design
• 38 mm (1.5 in) exit / 25 mm (1 in) voice-coil compression driver
• PT Progressive Transition waveguide for consistent pattern control
• Frequency range (-10 dB): 42 Hz – 19 kHz
• Frequency response (±3 dB): 50 Hz – 17 kHz
• System sensitivity: 97 dB SPL (1W @ 1m, passive mode)
• Maximum SPL: 121 dB continuous / 127 dB peak
• Long-term power rating: 250 W (1000 W peak) IEC, 100 hrs
• Bi-amp/passive switchable crossover with 4th order Linkwitz-Riley slopes at 2.2 kHz
• 60° x 40° coverage pattern for controlled directivity
• Dimensions: 25.1" H x 16.6" W x 19.9" D (637 x 422 x 504 mm)
• M10 threaded suspension points for flexible mounting

The AC2215/64 combines honest, full-range tone with the flexibility to operate as a passive or bi-amped system, making it a reliable choice for sound professionals who demand precise audio reproduction and dependable performance night after night.
