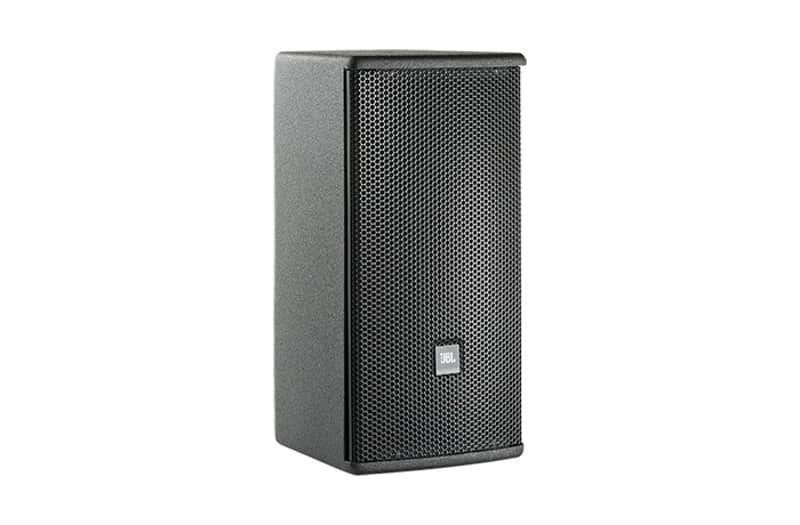

JBL AC18/95 Compact 2-Way Loudspeaker with 1 x 8 LF

JBL AC18/95 Compact 2-Way Loudspeaker with 1 x 8 LF

The AC18/95 is a compact professional-grade loudspeaker built to deliver impressive output and clarity from a genuinely portable form factor. Its punchy 8-inch low-frequency driver paired with a rotatable compression driver makes this unit equally at home in live sound reinforcement, small-venue installations, or as a studio monitoring reference. The hardwood enclosure and professional-grade components mean this speaker handles real-world touring and installation work without compromise.

Audio Performance & Output

Maximum SPL reaches 117 dB, with 500W rated program power and 1000W peak handling delivering clean, directional output across a 63 Hz to 19 kHz frequency range (±3 dB). The directivity factor of 8 and directivity index of 9 dB ensure controlled coverage that minimizes reflections and feedback in real installations, while the 375W AES power rating provides a realistic measure of sustained performance.

Design & Build Quality

Constructed with a multi-ply hardwood enclosure finished in JBL's textured DuraFlex coating, the speaker resists the wear of transport and use. The heavy-duty powder-coated steel grille with acoustically transparent foam backing protects drivers while maintaining sonic transparency, and the compact 18.5" H x 9.4" W x 10.0" D footprint at 28.2 lbs makes it genuinely portable for tour and installation work.

Key Features

• 1 x JBL 228H 8-inch (205 mm) SFG low-frequency driver with 64 mm (2.5 in) edge wound voice coil
• 1 inch exit compression driver with 90° x 50° rotatable PT (Progressive Transition) waveguide
• Frequency response (±3 dB): 63 Hz – 19 kHz
• Frequency range (−10 dB): 52 Hz – 20 kHz
• Maximum SPL: 117 dB
• Rated maximum program power: 500W; peak power handling: 1000W; 375W AES rating
• Directivity Factor (Q) of 8 and Directivity Index (DI) of 9 dB (average 500 Hz – 16 kHz)
• Multi-ply hardwood enclosure with JBL textured DuraFlex finish
• Heavy-duty powder-coated steel grille with acoustically transparent foam backing
• Dual Neutrik NL4 connectors plus screw terminals
• Multiple mounting points for U-bracket, OmniMount type bracket, or stand mount accessories
• IP53 environmental rating per IEC 529; optional WRC or WRX upgrades available

The AC18/95 combines proven JBL engineering with a genuinely portable design, making it an excellent choice for professionals who need reliable output without excess weight or footprint.
