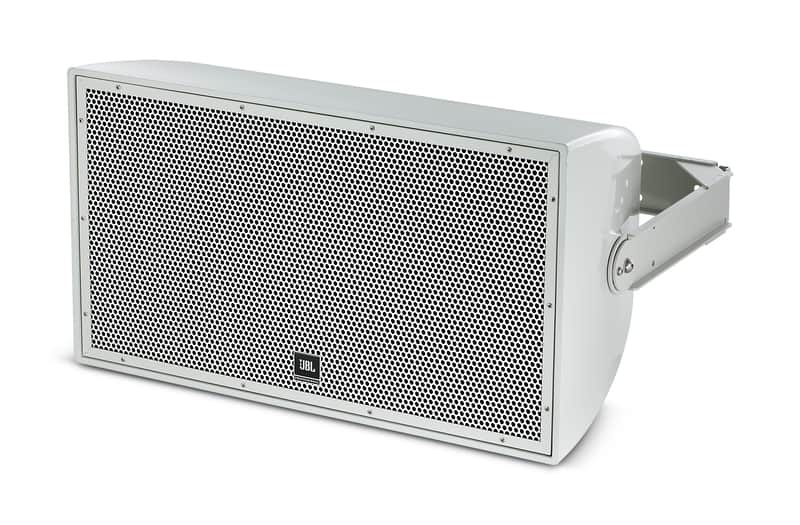

JBL AW295 High Power 2-Way All Weather Loudspeaker with 1 x 12 LF & Rotatable Horn

JBL AW295 High Power 2-Way All Weather Loudspeaker with 1 x 12 LF & Rotatable Horn

The AW295 delivers commanding presence and crystal-clear projection that cuts through any outdoor environment with authoritative power. This all-weather system combines a punchy 12-inch woofer with a rotatable horn that gives you exceptional flexibility in shaping your sound across venues ranging from festival stages to permanent installations. The natural, articulate response across the frequency spectrum makes this speaker equally at home reinforcing live rock, funk, reggae, or speech—a versatile workhorse that responds with honest, no-nonsense character.

Audio Performance & Coverage

The AW295 produces 126 dB-SPL continuous average output (132 dB peak) with a system sensitivity of 98 dB SPL at 1W/1m, delivering authoritative projection across 43 Hz – 20 kHz frequency range (±3 dB: 53 Hz – 18 kHz). The 90° x 50° coverage pattern with rotatable waveguide lets you dial in tight, focused highs for clarity or rotate to spread your sound wide across a larger audience depending on your setup.

Design & Build Quality

Heavy-duty multilayer glass composite enclosure construction with extensive internal bracing handles outdoor weather exposure rated IP56 per IEC529. A 16-gauge stainless steel grille backed with open cell foam and stainless steel mesh protects the drivers while maintaining acoustic transparency, and the included U-bracket suspension hardware with M10 mounting points accommodates quick rigging for both temporary and permanent installations.

Key Features

• 1 x JBL 2262H 300 mm (12 in) Differential Drive dual voice coil low-frequency driver with 75 mm (3 in) voice coil
• 1 x JBL 2432H high-frequency 38 mm (1.5 in) exit compression driver with 75 mm (3 in) voice coil
• 500 W long-term system power rating (IEC) / 2000 W peak
• 70V / 100V transformer taps: 70V at 400W, 200W, 100W; 100V at 400W, 200W
• 126 dB-SPL continuous average output; 132 dB peak SPL
• Frequency range (-10 dB): 43 Hz – 20 kHz; response (±3 dB): 53 Hz – 18 kHz
• 90° x 50° coverage pattern with rotatable waveguide for vertical or horizontal orientation
• Multilayer glass composite enclosure, heavily braced with IP56 environmental rating
• 16-gauge stainless steel grille with open cell foam and stainless steel mesh backing
• CE-compliant covered barrier strip terminals accepting up to 5.2 sq mm (10 AWG) wire or spade lugs
• Suspension attachment points: 2 x M10 for U-bracket, 2 x M6 for aiming stabilization, 1 x M10 rear safety point
• Dimensions (H x W x D): 16.1" x 28.8" x 17.8" (409 x 732 x 452 mm); Weight: 55.5 lbs (25.2 kg)

The AW295 is engineered to deliver consistent, full-bodied tone night after night while handling the elements—a dependable choice for any outdoor venue demanding reliability and impact without compromise.
