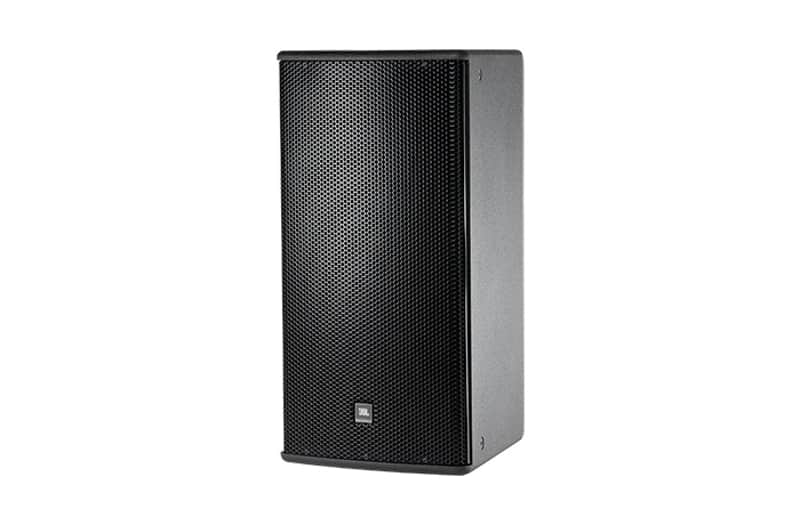

JBL AM5212/64 2-Way Loudspeaker System with 1 x 12 LF

JBL AM5212/64 2-Way Loudspeaker System with 1 x 12 LF

The AM5212/64 is a professional 2-way loudspeaker engineered for powerful, articulate sound that responds with impressive immediacy and clarity. The 12-inch woofer delivers punchy low-end presence with tight control, while the precisely tuned horn-loaded tweeter cuts through with crystalline highs, making this system feel responsive and alive This running live vocals, mixing in the studio, or pushing full-range music through a demanding venue. The balanced frequency response invites you to dial in your exact sonic vision without fighting the speaker, and the robust construction means you can drive this system hard without compromising definition or introducing listener fatigue.

Audio Performance & Coverage

This system achieves a frequency response of ±3 dB from 43 Hz to 18 kHz, delivering extended low-end reach and transparent highs across the full audible spectrum. The 60° × 40° rotatable waveguide provides controlled directivity and consistent coverage, while the 96 dB SPL sensitivity in passive mode means the speaker responds efficiently to moderate input levels, and its peak output reaches 131 dB SPL continuous average in bi-amp mode, making it suitable for live sound reinforcement and critical monitoring applications alike.

Design & Build Quality

Construction centers on a multiply birch cabinet heavily braced and finished in JBL's DuraFlex™ coating for durability and protection in touring and fixed-installation environments. The 262H-1 300 mm woofer features JBL Differential Drive® dual voice coil and dual magnetic gap technology for enhanced control and distortion reduction, while the 2408H-1 compression driver ensures articulate midrange and treble reproduction. At 45 lbs, the cabinet strikes a practical balance between portability and acoustic mass.

Key Features

• 2-way, full-range loudspeaker system with rotatable waveguide for vertical or horizontal orientation
• 262H-1 300 mm (12 in) low frequency driver with JBL Differential Drive® dual voice coil and dual magnetic gap
• 2408H-1 high frequency 38 mm compression driver with 38 mm voice coil exit
• Frequency response ±3 dB: 43 Hz – 18 kHz; extended range to 37 Hz (–10 dB)
• 60° × 40° coverage pattern with rotatable waveguide for flexible deployment
• System sensitivity: 96 dB SPL (1W @ 1m) in passive mode
• Long-term power rating (IEC): 300 W (1200 W peak) passive mode
• Maximum SPL: 121 dB continuous average (127 dB peak) in passive mode; 122 dB LF / 131 dB HF in bi-amp mode
• Switchable bi-amp and passive crossover modes at 1.6 kHz
• NL4 Neutrik speakON® and barrier strip connectivity
• Multiply birch cabinet with JBL DuraFlex™ finish and heavy internal bracing
• Dimensions: 28.06" H × 14.6" W × 18.1" D; net weight 45 lbs

The AM5212/64 rewards your attention with transparent, engaging sound that makes every detail matter—a dependable choice for sound engineers seeking honest monitoring, live sound professionals needing reliable output, or audio professionals who demand integrity in their speakers.
