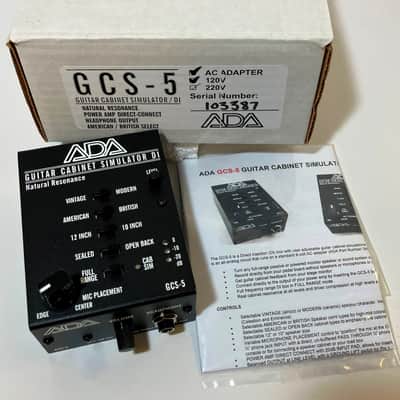

The GCS-5 is a Direct Injection (DI) box with user adjustable guitar cabinet simulations and a headphone output, designed for the studio, stage and silent practice. The GCS-5 is an all-analog circuit that runs on a standard 9-volt AC adapter (ADA Part Number 240013G5) or a pedal board power supply rated at 200mA or more.

• Turn any full-range passive or powered monitor speaker or sound system into a dynamic guitar cabinet

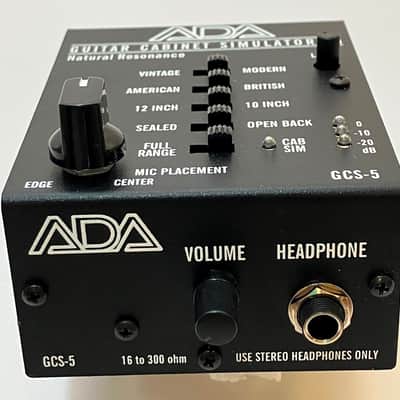

• Record directly from your pedal board without speakers or microphones or use the HEADPHONE OUTPUT for silent practice
• Get guitar cabinet feedback from your stage monitor
• Connect directly to the output of your power amp by inserting the GCS-5 between the power amp output and your speaker cab or load box
• Full frequency range DI box in FULL RANGE mode
• Real cabinet resonance at all levels and driver compression at high levels adds an organic depth and realism to your guitar tone

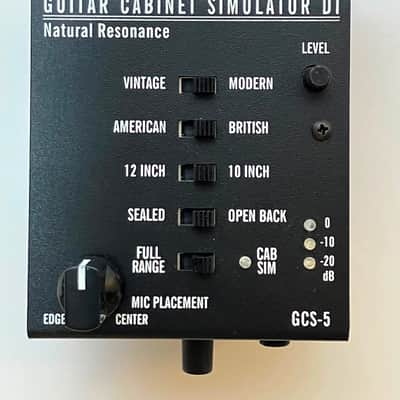

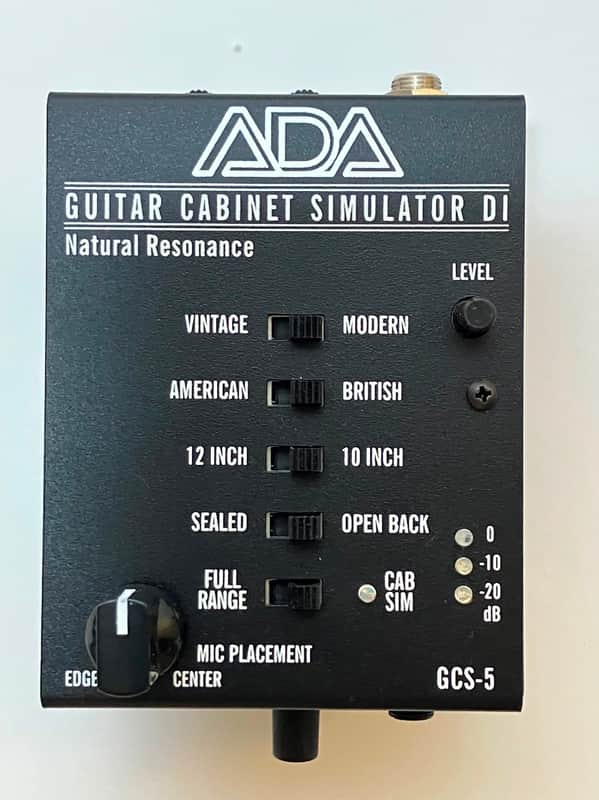

CONTROLS

• Selectable VINTAGE (alnico) or MODERN (ceramic) speaker character. We have focused on the two extremes of speakers, the alnico (Jensen) and the ceramic (Celestion and Eminence)
• Selectable AMERICAN or BRITISH Speaker cone types for high-mid coloration
• Selectable SEALED or OPEN BACK cabinet types to emphasize the cabinet’s natural resonance between low and mid frequencies
• Selectable 12” or 10” speaker size
• Variable MICROPHONE PLACEMENT control to “position” the mic at the EDGE for deep or CENTER for bright frequency responses

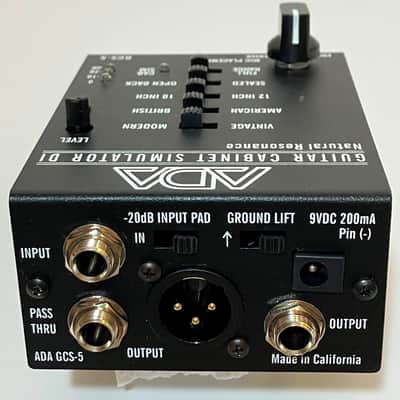

• ¼” phone jack INPUT with a direct, un-buffered PASS THROUGH ¼” phone jack.  This effectively splits the signal to feed both a guitar amplifier and a mixing console or for connecting a speaker cabinet or your load box
• POWER AMP DIRECT CONNECT with 20dB INPUT PAD, allows for inserting the GCS-5 between your power amp output and your speaker cabinet or load box.
• Balanced OUTPUT at LINE LEVEL with a GROUND LIFT switch for Pin 1

SPECIFICATIONS

INPUT IMPEDANCE: 105k Ohms

OUTPUT IMPEDANCE: 1000 Ohms

HEADPHONE OUTPUT: 45 to 300 Ohms

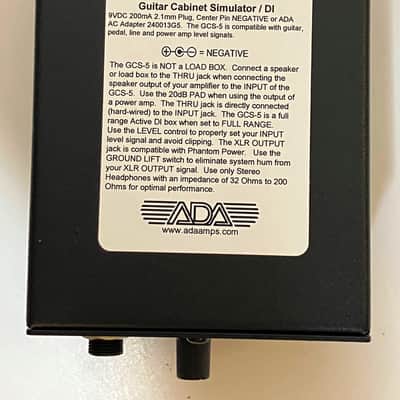

External Power Supply: 9VDC 200mA  2.1mm pin

Shipping weight:   1.6 lbs

Dimensions:  3.35" (w) x 4.2" (l) x 1.8" (h)
