K-SPEC Western Electric 111C Stereo Transformer Processor | Mix Bus Color Box

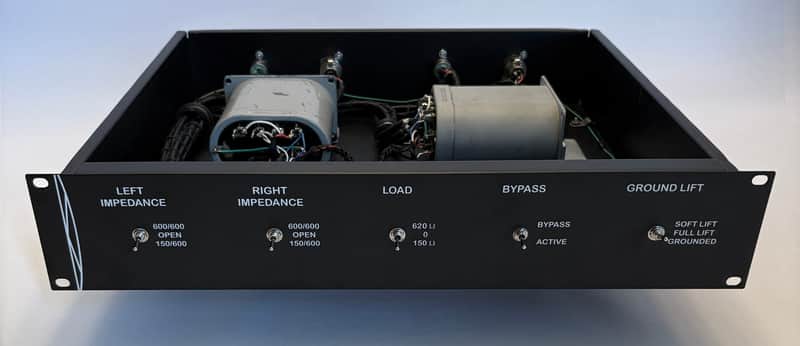

The K-SPEC Western Electric WE111C Stereo Transformer Processor is a handcrafted, completely passive studio processor built around a carefully selected pair of vintage Western Electric WE111C transformers.

Unlike many transformer boxes that simply house a pair of WE111Cs, this processor provides extensive control over transformer behavior through selectable 600:600 or 150:600 impedance, three-position loading (Open / 620Ω / 150Ω), true hard-wire bypass, and a three-position Ground / Soft Lift / Full Lift system with individual Zobel stabilization networks.

Few passive WE111C processors offer this level of control, allowing you to explore a much broader range of transformer behavior than a fixed-configuration design.

This is no random pair of WE111C transformers. K-SPEC processors are built around carefully selected transformer pairs. The transformers installed in this processor measure approximately 99.56% matched (<0.44% difference) based on documented winding resistance measurements. Unlike many listings that simply state “matched,” this processor includes the measurements to support that claim.

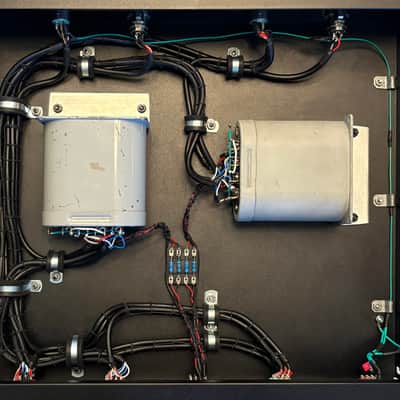

Construction emphasizes low-noise wiring practices, premium Canare internal wiring, point-to-point construction, 90° transformer orientation to minimize magnetic coupling, and long-term serviceability. A printed wiring diagram is included for documentation and future service.

Features

● Genuine Western Electric WE111C transformer pair

● Approximately 99.56% matched (<0.44% difference), based on documented winding resistance measurements

● Independent Left and Right 600:600 or 150:600 impedance selection

● Three-position transformer loading: Open / 620Ω / 150Ω

● True hard-wire bypass

● Ground / Soft Lift / Full Lift switching

● Individual Zobel stabilization networks

● Premium Canare internal wiring

● UV-printed aluminum front panel

● Printed wiring diagram included

Ideal for stereo mix bus processing, mastering chains, stems, synthesizers, keyboards, acoustic instruments, bass, electric guitar, and other line-level applications where the classic sound of Western Electric WE111C transformers is desired.

Each K-SPEC processor is individually assembled, thoroughly tested, and verified prior to shipment.

If your processor arrives not as described or develops a functional defect under normal use within 30 days of delivery, I will repair it, replace it (if possible), or refund the purchase price upon return of the unit.
