Details:

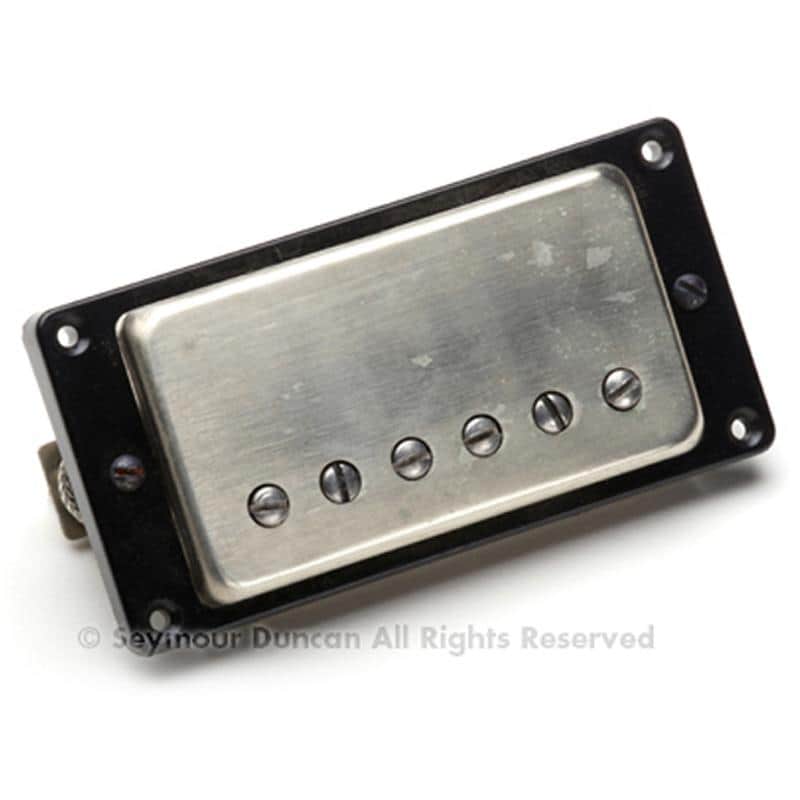

Antiquity - Bridge

Like the neck position model, the bridge position humbucker is a faithful replica of the great sounding "patent applied for" humbuckers that Seth E. Lover designed in 1955. The pickup comes with slight variations in DC resistance, just like the old ones. Seymour Duncan decided to wind the bridge pickup a little hotter and better balanced for its position. The mounting ring is slightly higher for the increased pickup height. The pickup is not wax potted to retain the sound and appearance of the originals. Again, each pickup is built by hand in the "Antiquity" room and every magnet and bottom plate are signed to guarantee that you are getting an original Seymour W. Duncan Antiquity. Hookup wire includes the classic braided "push back" cloth braid wire.

width: 1.494
length: 2.750
max height with leg: 1.095
mounting ring width: 1.756
mounting ring length: 3.537
mounting ring max height: .420
minimal height: .350
adjustable pole piece length: .750
height adj. screw height: 1.250
magnet calibration: S-adj. side
magnet gauss: 15-20 gauss
DC Ohms: 8.52K
inductance: 5.12 henries
Q: 2.38
