Pioneer RT 2022 late 80s - Excellent

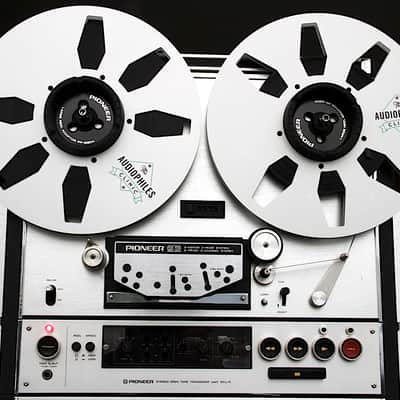

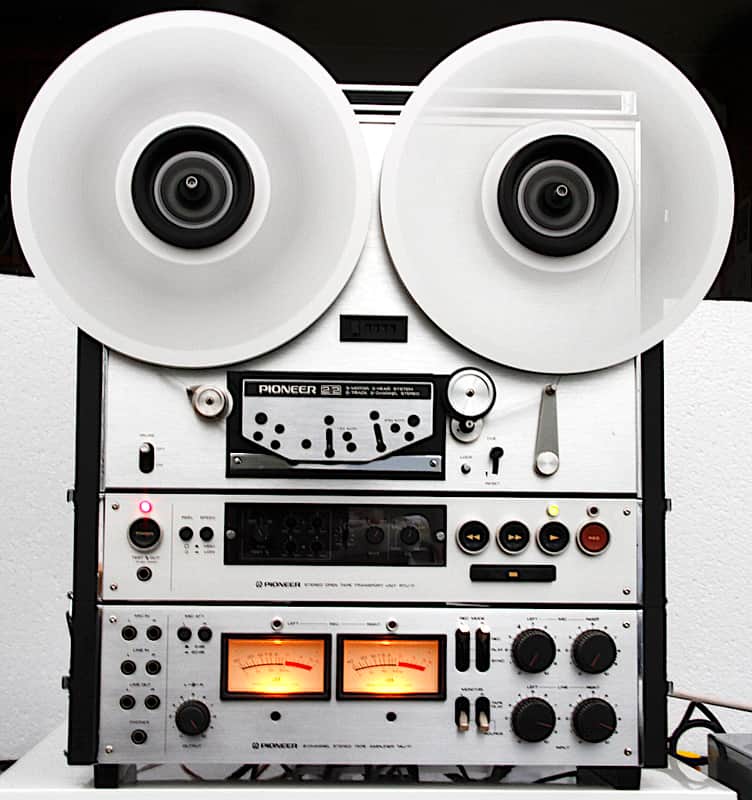

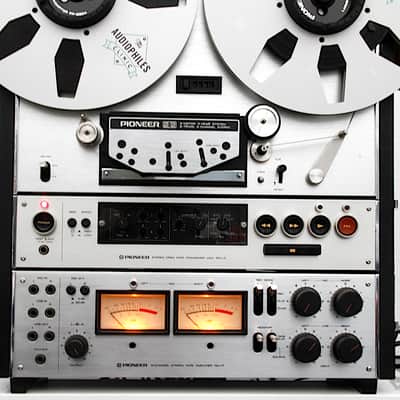

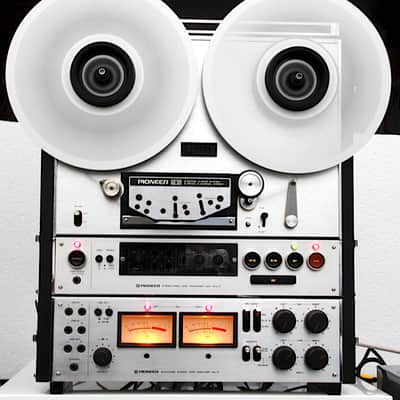

The Pioneer RT-2022 is a vintage, semi-professional semi-modular reel-to-reel tape recorder introduced by Pioneer in late 1976. It stands as one of the largest, heaviest, and most expensive open-reel tape decks Pioneer ever manufactured, highly regarded by audiophiles for its tank-like build quality and superior audio reproduction.

System Design & Architecture

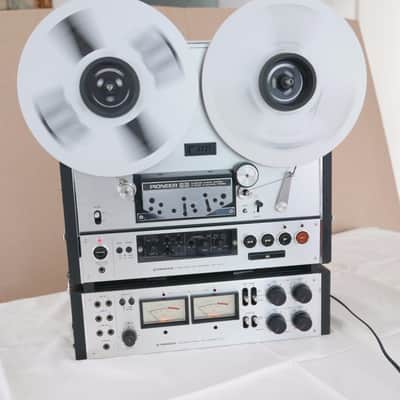

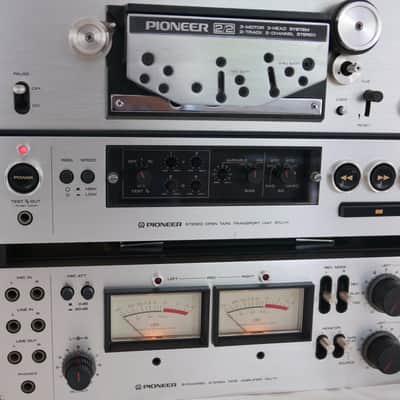

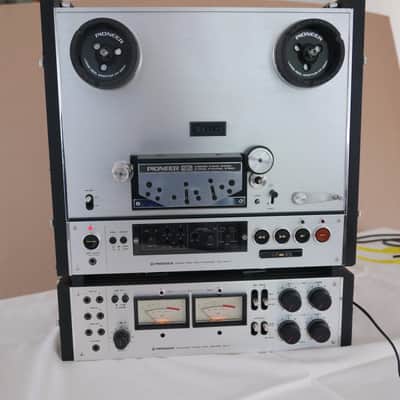

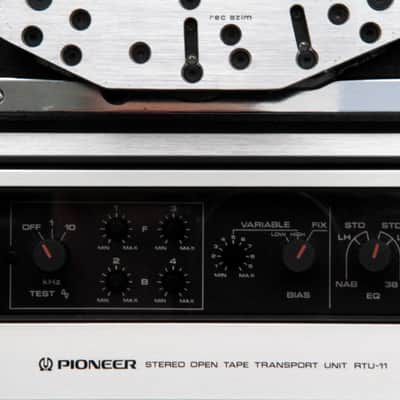

• Two-Unit Modular Layout: Consists of the RTU-11 tape transport mechanism and the TAU-11 recording/playback pre-amplifier unit.
• Channel Configuration: Operates standardly as a 2-track, 2-channel stereo master deck.

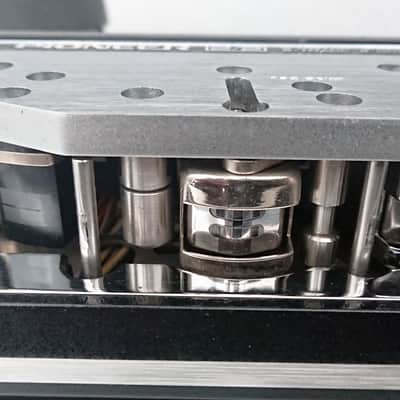

• Expandability: The head assemblies are interchangeable. By pairing the transport with two TAU-11 pre-amplifiers and a 4-channel head block, the system transforms into a 4-track quadraphonic deck known as the RT-2044.

Core Technical Specifications

• Tape Speeds: Supports professional tracking speeds of 7½ ips (19 cm/s) and 15 ips (38 cm/s).
• Reel Compatibility: Built specifically to accommodate large 10½-inch reels as well as standard smaller sizes.
• Motor Drive: Employs a robust 3-motor drive system to ensure precise tape tension and minimal wow and flutter.

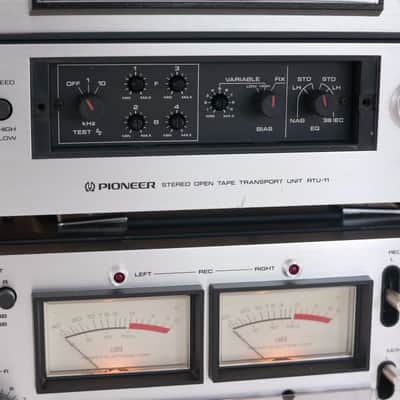

• Equalization Standards: Offers selectable NAB and IEC EQ settings, making it highly compatible with modern high-end boutique master tape dubs. [1, 2, 3, 4]

Physical Dimension & Presence

• Weight: Heavyweight design coming in at over 62 pounds (approx. 28 kg).
• Dimensions: Measures 18¼" Wide × 21¾" High × 10¾" Deep
