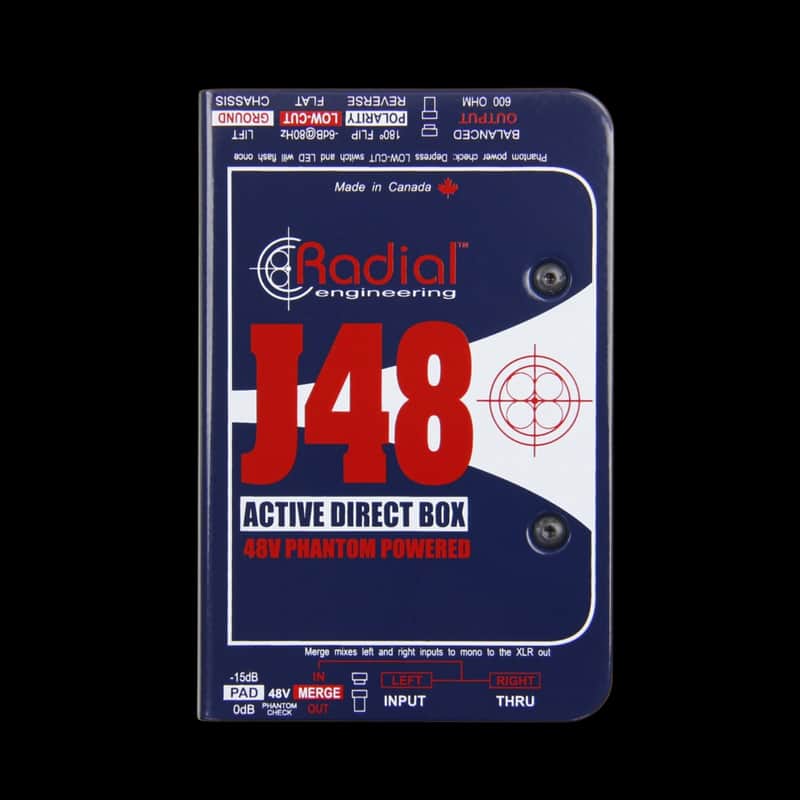

The J48 is a high performance active direct box for live concert touring and professional recording studio applications, with the ability to handle extreme transients without distortion while delivering the natural sound of your instrument.

Most battery-powered guitars and basses will produce as much as 7 Volts when played at maximum volume, which can easily overload typical active direct boxes which have are only able to handle about 3 Volts. The J48 uses a unique switching power supply that raises the internal rail voltage so it can handle up to an incredible 9 Volts, resulting in improved signal handling and greater headroom. This additional headroom significantly reduces distortion of all types, allowing the natural tone and character of the instrument to shine through.

• Exceptional headroom & dynamic range
• Retains the natural sound of the instrument
• Merge switch sums stereo instruments to mono
• Powered by 48V phantom, no batteries required

• Type:Active DI
• Channels:1
• Pads:-15dB
• Polarity Switch:Yes
• Ground Lift:Yes
• Inputs:1 x 1/4"
• Outputs:1 x XLR, 1 x 1/4" thru
• Power Source:48V Phantom Power
• Height:2"
• Depth:5"
• Width:3.3"
• Weight:1.55 lbs.
• Manufacturer Part Number:R800 3001
