Key Technical Specifications
- Pedal Type: Tremolo
- Circuitry: Analog
- Bypass: Buffered bypass
- Controls:
- Rate: Adjusts the speed of the LFO (Low Frequency Oscillator)
- Wave: Morphs the LFO waveform continuously from triangle to square
- Depth: Determines the strength/intensity of the effect
- Nominal Input Level: -20 dBu
- Input Impedance: 1 MΩ
- Nominal Output Level: -20 dBu
- Output Impedance: 1 kΩ
- Recommended Load Impedance: 10 kΩ or greater
Power & Connectivity
- Power Supply: DC 9V (either a 9V battery or an optional AC adapter, such as the Boss PSA series)
- Current Draw: 20 mA

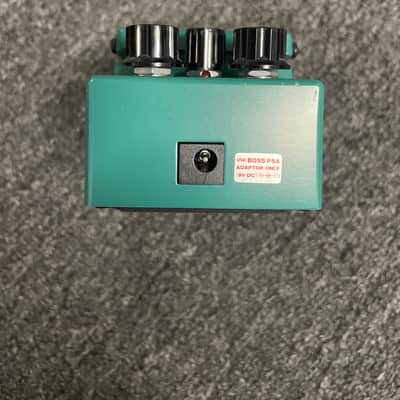

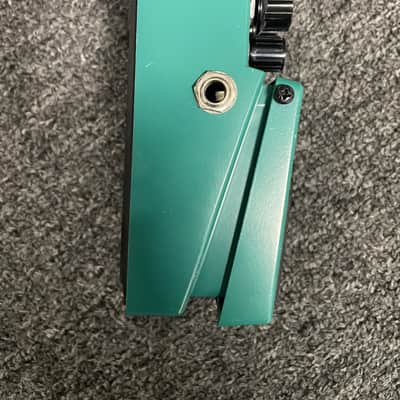

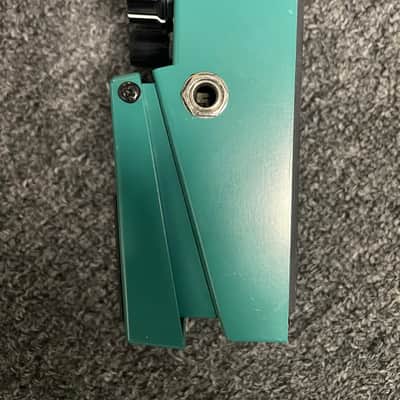

- Connectors: 1/4-inch Input jack, 1/4-inch Output jack, DC IN jack
Dimensions & Weight
- Width: 2-7/8 inches (73 mm)
- Depth: 5-1/8 inches (129 mm)
- Height: 2-3/8 inches (59 mm)
- Weight: 15 oz (400 to 420 g) including the battery
Does not include battery, power supply, or original box.
