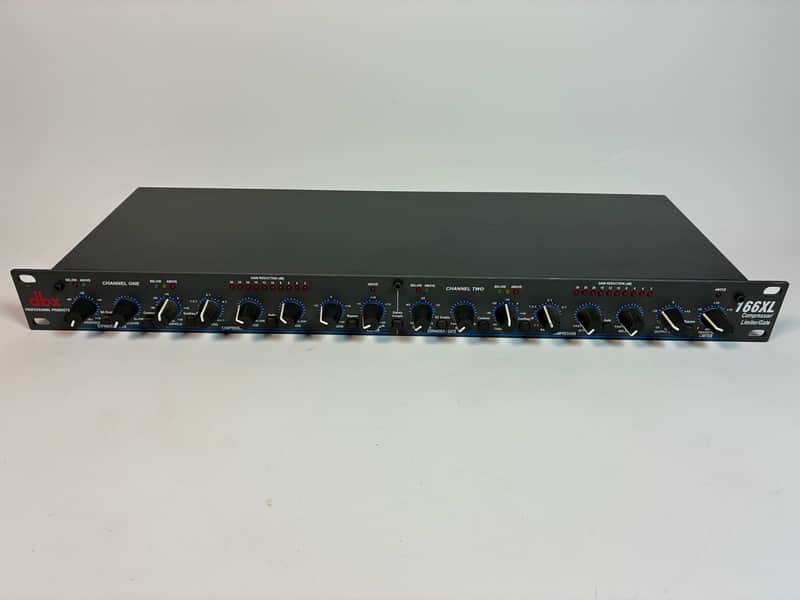

The dbx 166XL is a dual-channel compressor/limiter/gate with independent controls per channel plus a stereo couple switch that links detection via true RMS power summing. Each channel has threshold, ratio, attack, release, auto mode, output gain, expander/gate threshold and ratio, plus OverEasy or hard-knee compression and a PeakStop limiter. Sidechain insert on TRS allows external keying or filtering. It runs on standard IEC power and fits a single rack space. The gate has fast attack under 500 µs and adjustable release, while the compressor offers program-dependent timing from a few milliseconds up to several seconds. Metering shows gain reduction plus threshold activity for both compressor and gate sections.

Specifications

• Dimensions: 1.75 in x 19 in x 6.75 in
• Power requirements: 100-120 VAC 60 Hz or 230 VAC 50 Hz, 15 W maximum via IEC
• Dynamic range: >115 dB
• Compressor attack time: variable program-dependent, 3 ms to 340 ms for 15 dB gain reduction
• Expander/gate attack time: <500 µs from maximum depth

Condition

This item has been tested and is in good working condition. It does not come with original packaging. No power supply included.
