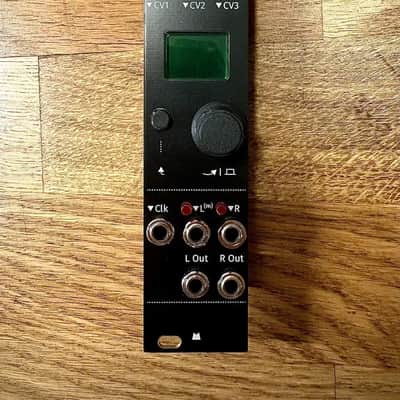

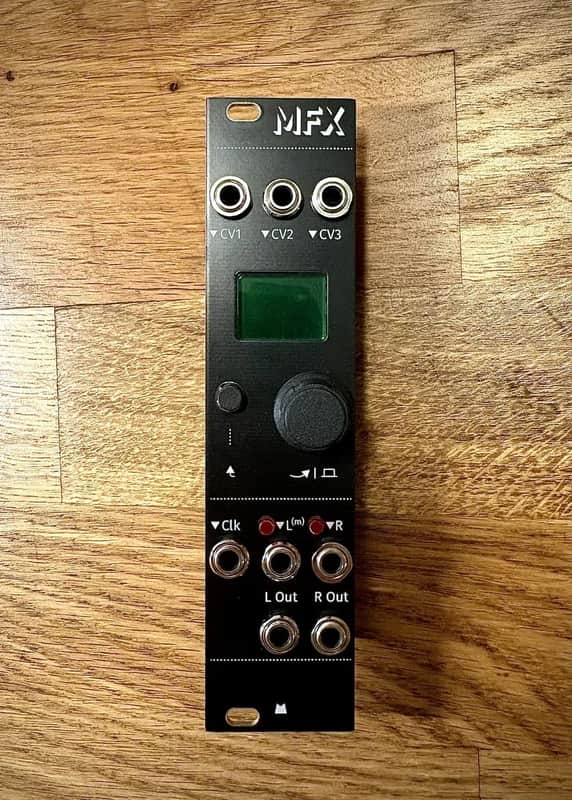

ALM Busy Circuits MFX / ALM032 — compact 6HP Eurorack stereo multi-effects processor.
- ALM MFX is a full DSP effects rack crushed into 6HP.
- Current firmware/manual platform covers 17 effect programs + utilities: Digi-PCM Echo, Tape-Tech Echo, Crumbular Echo, Ursa Minor Echoverb, Pocket PL8, Almicon, Quaidra, Yetti, Slinky, TY-50 Dynamics, TH-30 Distortion, 2051 Bit Corrupter, Modulating Panner, Ring + Freq Modulator, Ensembles Ensemble, Multi Phaser, Squoval Resonator, plus utility tools.
- Effect range is stupidly dense: digital rack delay, tape echo, granular delay, multi-tap echoverb, early digital reverb, 80s studio reverb, 90s rack-style reverb, FDN modern reverb, spring-style reverb, compression/transient shaping, distortion, bit corruption, panning, ring mod, frequency shifting, chorus/ensemble, phaser, resonator.
- 3 freely assignable CV inputs on-panel. Instead of locking modulation to one sad parameter, MFX lets parameters be assigned to CV per program.
- CV inputs expect 0–5V and include digital attenuation/offset. That matters: it is not just “CV in”; it is scaled, patchable control.
- Dedicated clock / trigger input. Delays and time-based engines can lock to external modular timing instead of floating loose.
- Stereo audio inputs and stereo outputs. Patch mono into left or stereo into both inputs, then route to stereo outs.
- Honest stereo note: some engines are true stereo, some are mono-to-stereo or mode-dependent. Better to say this clearly than fake “true stereo everything.”
- OLED + encoder workflow. Browse programs, edit parameters, assign CV, save/recall presets without turning the module into a laptop chore.
- Factory presets + user presets. Current manual documents 32 shared user preset slots and a preset-loader style live workflow.
- All states preserved across power cycles. No dumb reset-to-zero behavior when the rack turns off.
- Global 100% wet option for send/return use. Built for mixer FX loops, not just end-of-chain patching.
- USB-C firmware update system. Drag/drop update workflow; no weird programmer box needed.
- Expandable with Axon-1 / Axon-2 for up to 7 assignable CV inputs. That is the real “nothing else compares” angle: 6HP core module, expandable modulation depth.
- Skiff-friendly 32mm depth with reverse power protection.
- Power draw: +12V 50mA max / -12V 15mA.
- 16-bit / 44.1kHz stereo processing on ARM CPU DSP.
- Made in England.
- Use it as a compact end-of-chain stereo FX block, send/return processor, clocked delay bank, weird granular/glitch box, pitch/modulation processor, dynamics tool, tuner/scope utility, or small-rack space saver.
- Where most small modules force a choice between one effect, weak routing, or limited modulation, MFX stacks deep DSP engines, CV assignment, preset memory, clocking, and utility tools into one narrow slot.
Shipping only $6.95 as I am splitting the actual cost of shipping with you.
