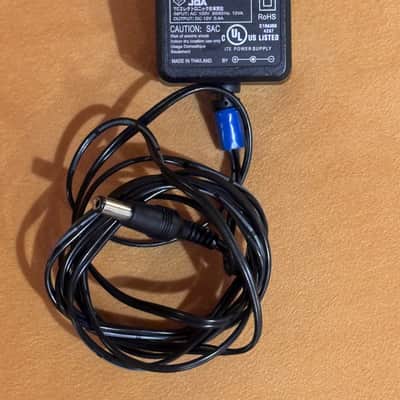

Used in excellent condition. Includes the original power supply.

Create features 99 preset combinations of reverb, delay, thickening/micro-tuning, distortion and telephone/megaphone effects that can inspire creativity and bring the sound of the CD to the stage. The straightforward controls, A/B effects switching and simple radio button preset selection give singers easy access to a rich palette of effects.


Features:

  • TC-quality reverb and delay processing
  • Contemporary vocal distortion effects
  • Telephone and megaphone sounds
  • 99 music-style-based effects combinations offer fast setup
  • Flexible A/B effects switching
  • 5 favorite user presets
  • Quick and easy tweaking of patches

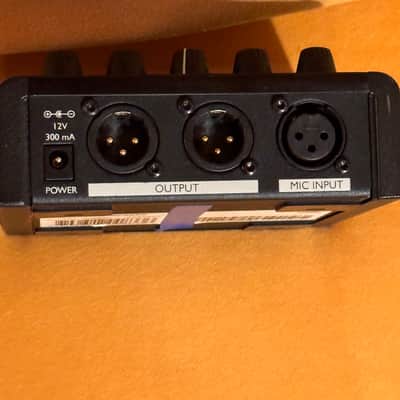

  • XLR mic level I/O in stereo or mono
  • Clean, studio-quality mic preamp with phantom power


Specifications:

  • Analog Inputs
    • Connectors: Balanced XLR
    • Input Impedance: 1 kOhm
    • Mic Input Sensitivity @ 0 dBFS: -44 dBu to +2 dBu
    • Mic Input Sensitivity @ 12 dB headroom: -56 dBu to -10 dBu
    • EIN: -128 dBu @ max. mic amp gain, Rg = 150 Ohm
  • Analog Outputs
    • Connectors: Balanced XLR
    • Output Impedance: 40 Ohm
    • Output Level @ 0dBFS: +2dBu
  • Input to Output Analog Audio Performance
    • Dynamic Range, Mic. @ Min gain: >108 dB, 20 Hz - 20 kHz (A-weighted)
    • Dynamic Range, Mic. @ -18dBu sensitivity: > 104dB, 20hz - 20kHz (A-weighted)
    • THD+ Noise, Mic. @ Min gain:
    • Frequency Response, max gain: -1.5 dB @ 40 Hz, +0/-0.3 dB (200 Hz to 20 kHz)
  • Conversion Characteristics
    • Sample Rate: 48 kHz
    • Converter: AKM AK4620B
    • A to D / D to A Conversion: 24 bit, 128x oversampling bitstream
    • A to D Delay: 0.65 ms
    • D to A Delay: 0.63 ms
    • EMC
    • Complies with: EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B
  • Safety
    • Certified to: IEC 65, EN 60065, UL6500 and CSA E60065 CSA FILE #LR108093
  • Environment
    • Operating Temperature: 32° F to 122° F (0° C to 50° C)
    • Storage Temperature: -22° F to 167° F (-30° C to 70° C)
    • Humidity: Max. 90% non-condensing
  • Supplementary
    • Dimensions: 130mm x 132mm x 41mm (5" x 5.25" x 1.5")
    • Weight: 1.5 lb. (0.72 kg)

Listeda day ago
ConditionExcellent (Used)
Excellent items are almost entirely free from blemishes and other visual defects and have been played or used with the utmost care.Learn more
Brand
Model
  • VoiceTone Create
Finish
  • Black
Categories
Year
  • 2007 - 2009
Pedal Format
  • Standard
