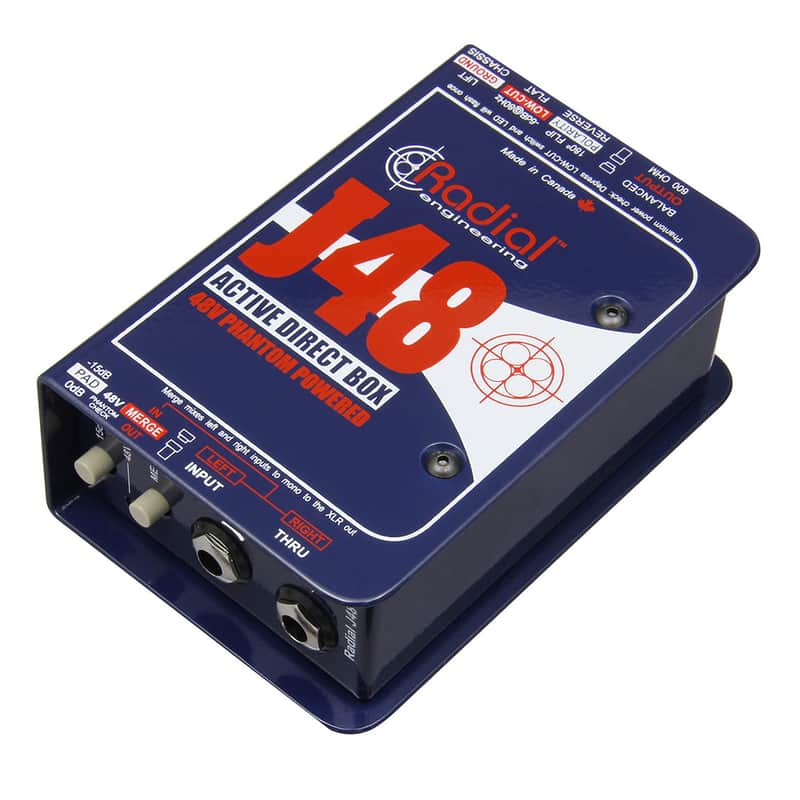

Phantom Powered Active Direct Box

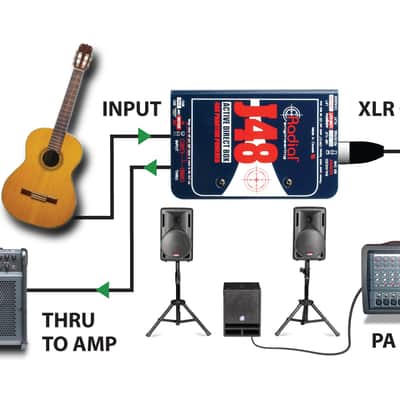

The J48 is a high performance active direct box for live concert touring and professional recording studio applications, with the ability to handle extreme transients without distortion while delivering the natural sound of your instrument.

Higher Rail Voltage, Higher Headroom

Most battery-powered guitars and basses will produce as much as 7 Volts when played at maximum volume, which can easily overload typical active direct boxes that are only able to handle about 3 Volts. The J48 uses a unique switching power supply that raises the internal rail voltage so it can handle up to an incredible 9 Volts, resulting in improved signal handling and greater headroom. This additional headroom significantly reduces distortion of all types, allowing the natural tone and character of the instrument to shine through.

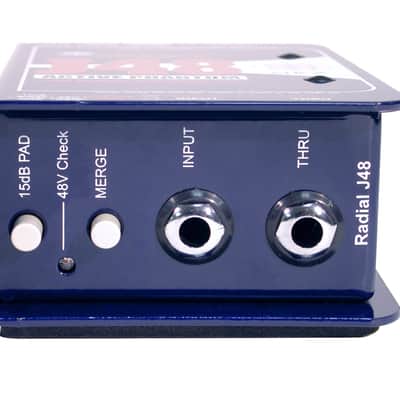

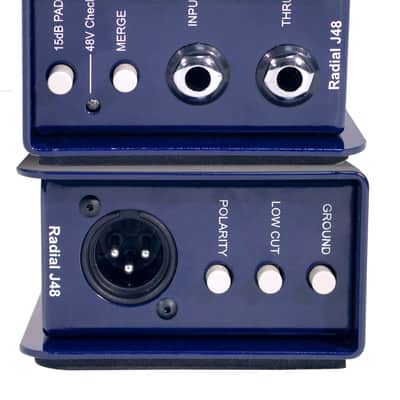

Specifications Audio circuit type: Proprietary analog circuit with low-noise op-amp Frequency response: 20Hz ~ 20kHz Dynamic range: 109dB Total harmonic distortion: 0.002% @ -5dBu Intermodulation Distortion: 0.003% @ -3dBu Phase Deviation: +10º at 20Hz | 0º at 1kHz | -1º at 20kHz Input Impedance: 220kΩ - ¼" input Output Impedance: 200Ω - XLR output Equivalent Input Noise: -103dBu Noise Floor: -99dB below 0dBu Maximum Input: +10dBu Features Input pad, Mono Sum, 180° polarity reverse, Ground lift, HPF Input Connectors: 1/4" Output Connectors: Balanced XLR, 1/4" Thru General Construction: 14 gauge steel chassis and outer shell Size (L x W x D): 3.3" x 5.0" x 2" (84 x 127 x 48mm) Weight: 1.55 lb (720 g) Power: 48V phantom - proprietary digital switching Conditions: For use in dry locations only between 5°C and 40°C Warranty:
