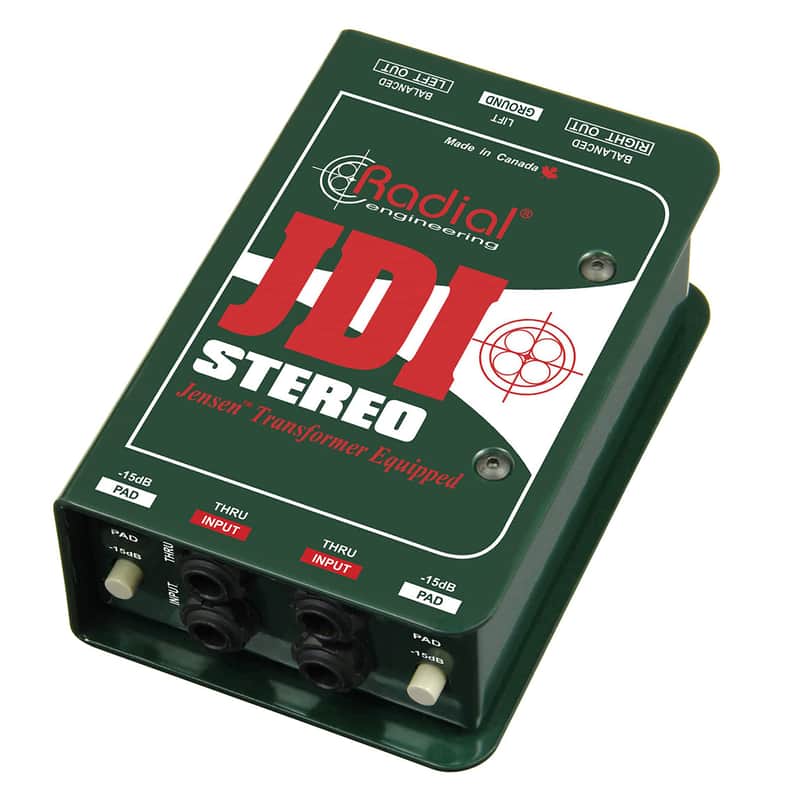

The World's Finest Stereo Direct Box

The JDI Stereo is a high performance 2-channel passive direct box for live concert touring and professional recording applications, featuring premium Jensen transformers for exceptional audio performance.

Pure sound of the instrument

The Radial JDI Stereo is a passive two-channel direct box designed to handle extreme signal levels without distortion of any kind. It employs two world-class Jensen JT-DB-EPC audio transformers to deliver a smooth, warm sounding Bessel curve, reminiscent of the finest vintage gear. Ruler flat from 10Hz to 40kHz and with virtually zero phase deviation, the JDI Stereo delivers the natural, pure sound of the instrument without artifact. By its no-power passive design, the JDI Stereo performs both high-to-low impedance conversion and signal balancing over a magnetic bridge that passes signal while rejecting stray DC voltage. This makes it particularly adept at eliminating hum and buzz caused by ground loops.

Specifications Audio circuit type: Passive, transformer based Transformer: Jensen JT-DBE Number of channels: Two channels (dual mono) Frequency response: 20Hz ~ 20KHz (± 0.2dB) Dynamic range: 135dB Total harmonic distortion: 0.05% from 20Hz ~ 20kHz @-10dB Phase Deviation: 0.3° @ 100Hz; 3° @ 20Hz Input Impedance: 140k Ohms, unbalanced Output Impedance: 150 Ohms, balanced Maximum Input: +21dB @ 20Hz ~ 20kHz Features Input pad, Ground lift Input Connectors: Unbalanced 1/4" Output Connectors: XLR out, 1/4" thru General Construction: 14 gauge steel chassis & outer shell Size (L x W x D): 5" x 3.3" x 1.8" (127mm x 84.1mm x 45.5mm) Weight: 1.55 lbs (703 grams) Shipping size (L x W x D): 6.5" x 4" x 3" (165mm x 102mm x 76mm) Shipping weight: 1.92 lbs (870.9 grams) Power: Passive, no power required Conditions: For use in dry locations only between 5°C and 40°C Warranty:
