BRAND NEW

The original box has been in storage hence the condition of it, but the item is completely mint condition unused.

Up for sale is a dbx iEQ-15 Dual 15-Band Graphic Equalizer/Limiter. This unit offers professional-grade equalization alongside dbx’s proprietary Type V™ Noise Reduction and Advanced Feedback Suppression (AFS) configurations.

Condition: Mint / Open Box

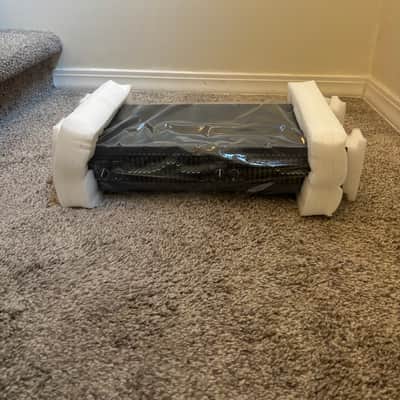

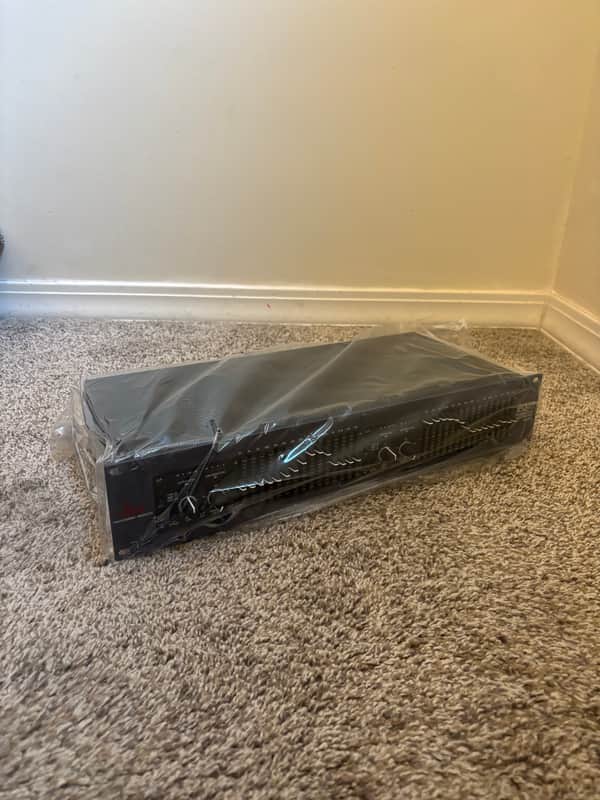

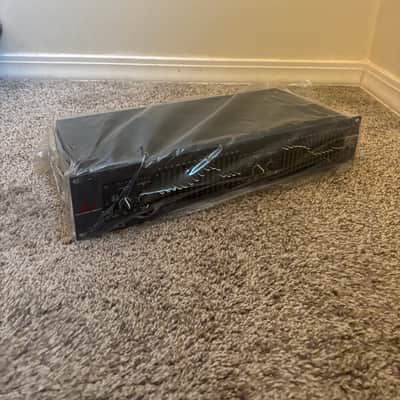

 Unit Condition: The equalizer is brand new, never used, and remains sealed in its original protective factory plastic wrap.

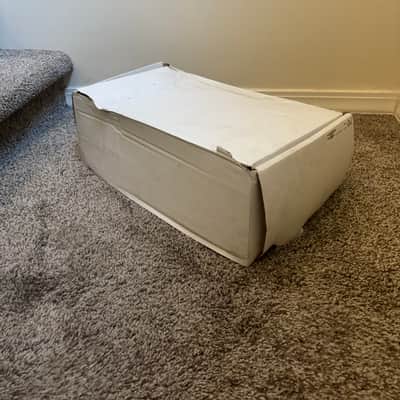

 Packaging: It includes the original form-fitting foam inserts and comes housed inside its white factory shipping box.

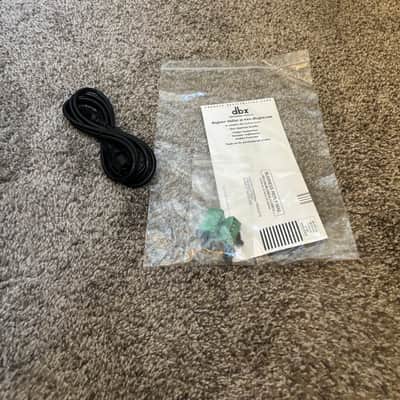

 Accessories Included: Comes complete with the original heavy-duty AC power cable, standard dbx terminal block connectors, and the official dbx product registration documentation.

Key Features & Internal Processing

 Advanced Feedback Suppression (AFS™): Features dedicated one-touch feedback elimination processing to automatically locate and notch out problem frequencies before they cause feedback.

 Type V™ Noise Reduction: Employs dbx’s proprietary Type V noise reduction circuit, capable of providing up to 10\text{ dB} of dynamic broadband noise reduction to maintain a crystal-clear signal path even with aggressive EQ cuts or boosts.

 PeakStopPlus® Limiting: Includes an integrated smooth, transparent limiter with a threshold control ranging from 0\text{ dBu} to +20\text{ dBu} (Off) to protect downstream equipment and speakers from clipping.

 Constant Q Frequency Bands: Utilizes 2/3-octave Constant Q bands across both channels for highly predictable and accurate frequency manipulation.

 Switchable Boost/Cut Range: Offers a toggle between \pm6\text{ dB} or \pm15\text{ dB} slider ranges for either precise macro-tweaking or aggressive frequency adjustments.

 Low-Cut Filter: Features an 18\text{ dB} per octave 40\text{ Hz} Bessel high-pass filter per channel to instantly clean up low-end stage rumble and muddy sub frequencies.

 Hardware Relay Bypass: Built with a power-failure system protection relay that automatically drops the unit into physical bypass if power is accidentally lost.

Technical Specifications

 Frequency Response: 10\text{ Hz} to 22\text{ kHz} (System performance rated at 20\text{ Hz} to 20\text{ kHz}, +0.5/-0.25\text{ dB}).

 Dynamic Range: Greater than 113\text{ dB} ("A" weighted).

 Total Harmonic Distortion (THD + Noise): <0.003\% typical at +4\text{ dBu}, 1\text{ kHz}.

 Interchannel Crosstalk: <-80\text{ dB} from 20\text{ Hz} to 20\text{ kHz}.

 Digital Architecture: High-fidelity 24-bit resolution operating at a 48\text{ kHz} sample rate with an ultra-low system latency of just 2\text{ msec}.

 Input Gain Range: \pm12\text{ dB} input gain control knob.

 Faders: 40mm faders using durable, nonconductive nylon sliders.

Inputs & Outputs

 Connectors (Per Channel): Female XLR, 1/4" TRS phone jacks, and Euroblock terminal barrier strips for both inputs and outputs.

 Input Impedance: Electronically balanced 40\text{ k}\Omega (20\text{ k}\Omega unbalanced), fully RF filtered.

 Maximum Input Level: +22\text{ dBu} balanced or unbalanced.

 Output Impedance: Active balanced 120\Omega (60\Omega unbalanced).

 Maximum Output Level: +20\text{ dBu} balanced/unbalanced into 2\text{ k}\Omega or greater.

Physical & Power

 Power Supply: Internal Toroidal Transformer (Operating voltage: 120VAC 60Hz / 220-240VAC 50/60Hz via standard IEC receptacle).

 Power Consumption: 17 Watts.

 Dimensions: 3.5” H x 19” W x 7.9” D (8.9\text{cm} \times 48.3\text{cm} \times 20.1\text{cm}) — occupying standard 2U of rack space.

 Net Weight: 7.5 lbs.
