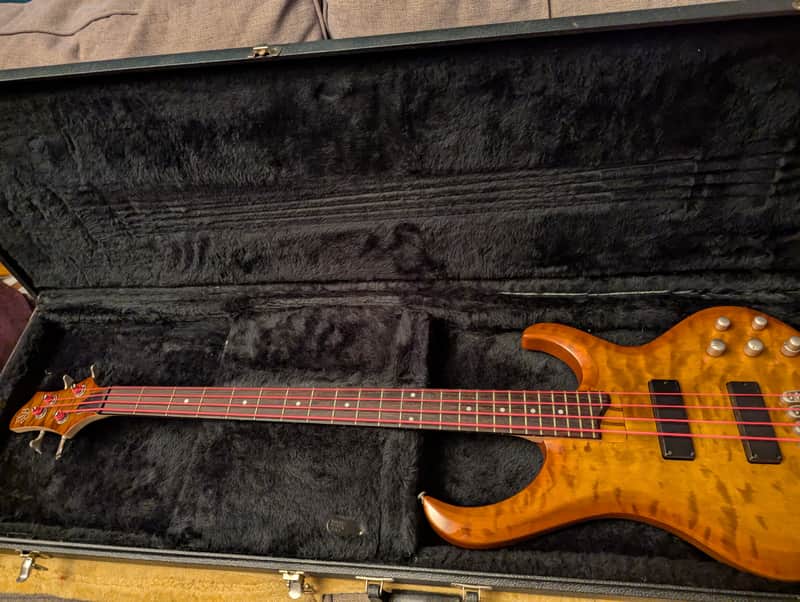

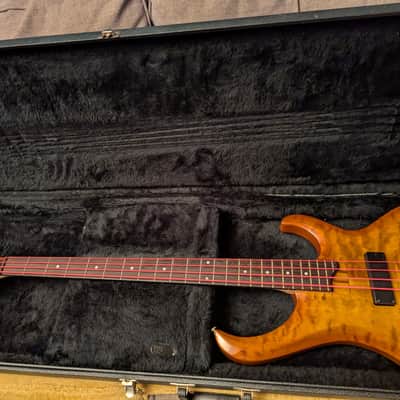

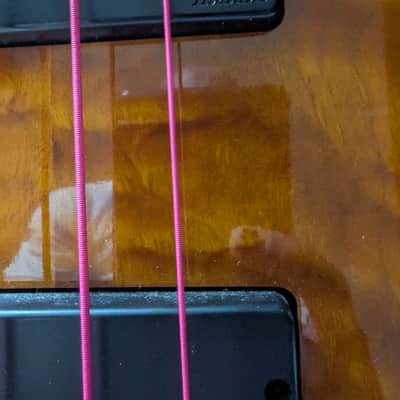

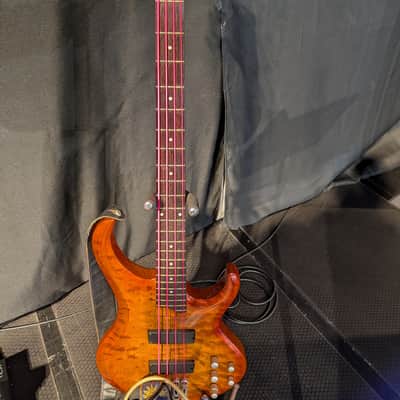

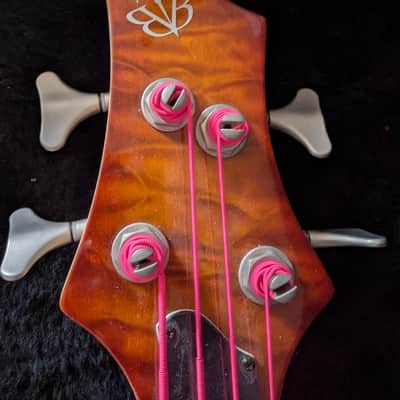

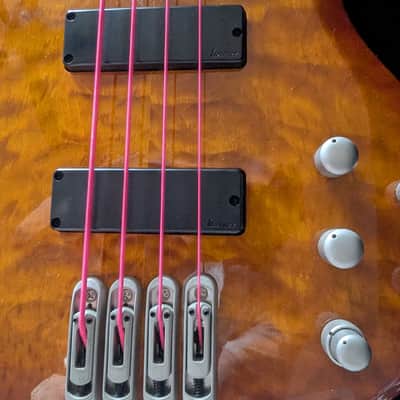

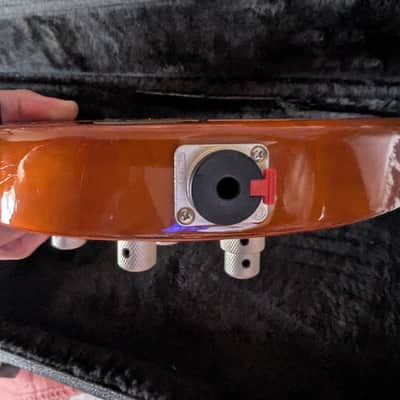

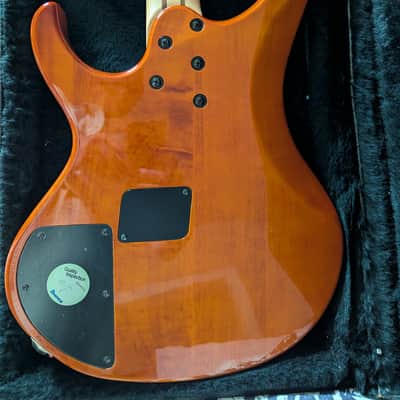

### Body & Construction Body Material: Basswood core Top Wood: Quilted Maple Body Shape: Deep double-cutaway BTB shape with long, sweeping horns Neck Joint: AANJ (All Access Neck Joint) via a 5-bolt pattern Finish: Honey Sunburst (HS) High-Gloss Polyurethane ### Neck & Fretboard Neck Type: BTB4 profile Neck Material: 5-piece Maple and Walnut Scale Length: Extra-long 35 inches (889\text{ mm}) for high string tension and extra clarity Fingerboard Material: Rosewood Fretboard Radius: 400\text{ mmR} (15.75") Number of Frets: 24 Medium frets Inlays: Mother of Pearl face dots with white side-dot position markers Nut Width: 41\text{ mm} (1.61") Graphite nut ### Electronics & Controls Neck Pickup: Ibanez DFR-N4 (Dynamix Full Range) passive humbucker Bridge Pickup: Ibanez DFR-B4 (Dynamix Full Range) passive humbucker Preamp/Active EQ: Onboard Vari-Mid III 3-band EQ powered by an 18-volt system (uses two 9V batteries for massive headroom and low noise) Control Layout: 5 Knobs total: Master Volume Pickup Balancer/Blend Bass Boost/Cut Treble Boost/Cut Stacked Concentric Knob: Top ring is Midrange Boost/Cut, bottom ring is the Midrange Frequency selector sweep ### Hardware Bridge: Ibanez Mono-Rail II (isolates each string completely to prevent cross-vibration, with a wide 19\text{ mm} string spacing) Tuning Machines: Gotoh die-cast tuners Output Jack: Heavy-duty, side-mounted Neutrik locking \frac{1}{4}" stereo jack (prevents your cable from pulling out accidentally) Hardware Color: Satin Silver Nickel
