GENERAL DESCRIPTION:

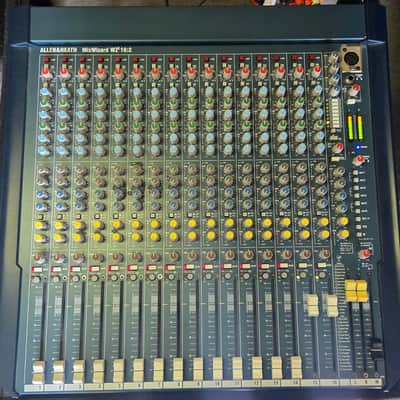

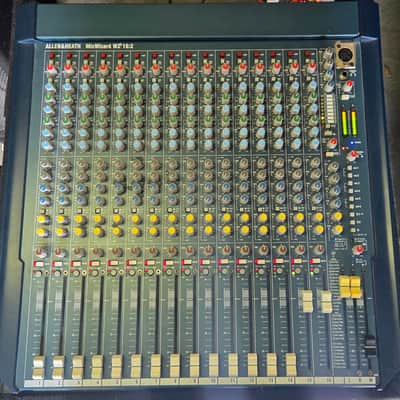

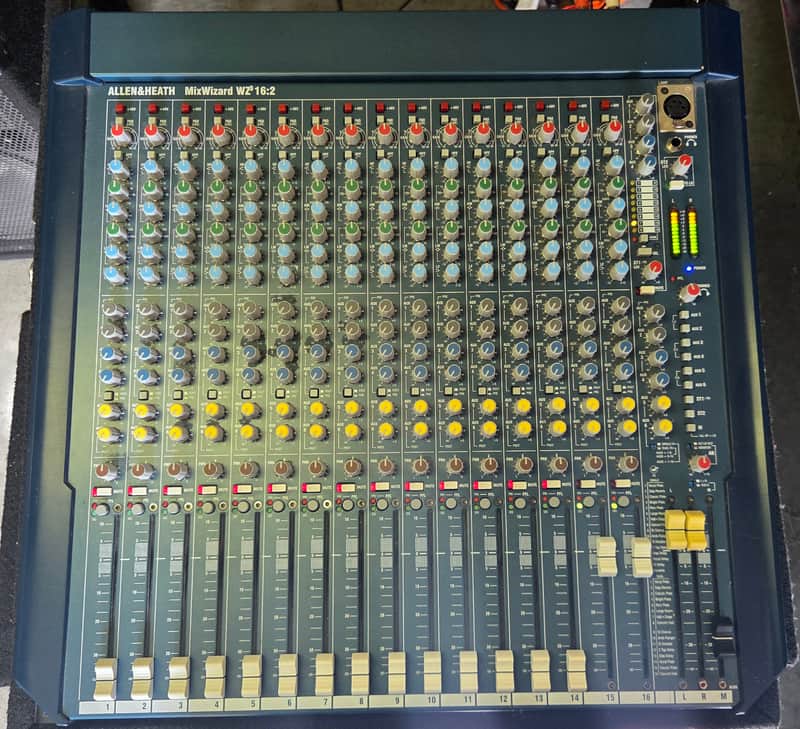

The MixWizard is a compact console designed for professional live sound mixing. It is built to the same high standards as our top of the range consoles, with individual circuit cards, potentiometers nutted to the panel for absolute strength, steel chassis, and no compromise circuit design ensuring the finest sonic performance.

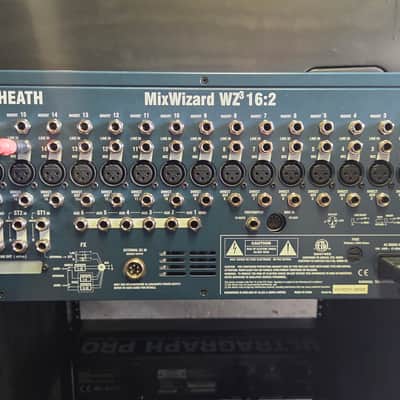

The console can be operated free standing or in a 19” rack or flightcase. It is supplied with protective side trims fitted. These can be removed for rack mounting. The rear connector pod can be easily rotated for rear facing or underside connectors when rack mounted.

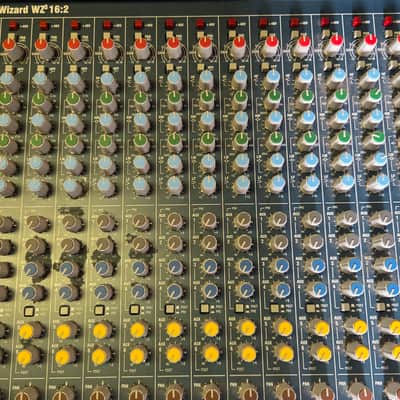

Both models feature a 4 band semi-parametric EQ and high pass filter per mic/line channel, 6 aux sends with combinations of pre/post switching, 100mm faders, a built-in dual effects processor with parameter control using Allen & Heath PC software, dedicated mono output with separate fader and innovative operating mode for aux fed sub systems, additional AB stereo output, comprehensive metering and engineers monitoring, dual redundant backup supply input, and a lamp socket.

The WZ316:2 provides 16 mono mic/line inputs and 2 stereo return inputs, a total of 20 input connections. The base of the console can be removed to access a host of internal option jumpers. These set user preference for the aux, direct output and AB sources.

The aux outputs are impedance balanced but may be electronically balanced if required by fitting an optional part. A kit is also available to fit the optional Sys-Link II output card which allows the console to be linked to other Allen & Heath consoles.

Software for editing the effects parameters using a PC computer can be downloaded free from the Allen & Heath web site.

CONDITION:
This mixer was in active use in a small church up until a month ago, when it was replaced by a larger mixer. There are no known issues with this mixer. All inputs and outputs work great and no noise or scratchy controls. Lamp socket was not used and is untested, but presumed to be working.
