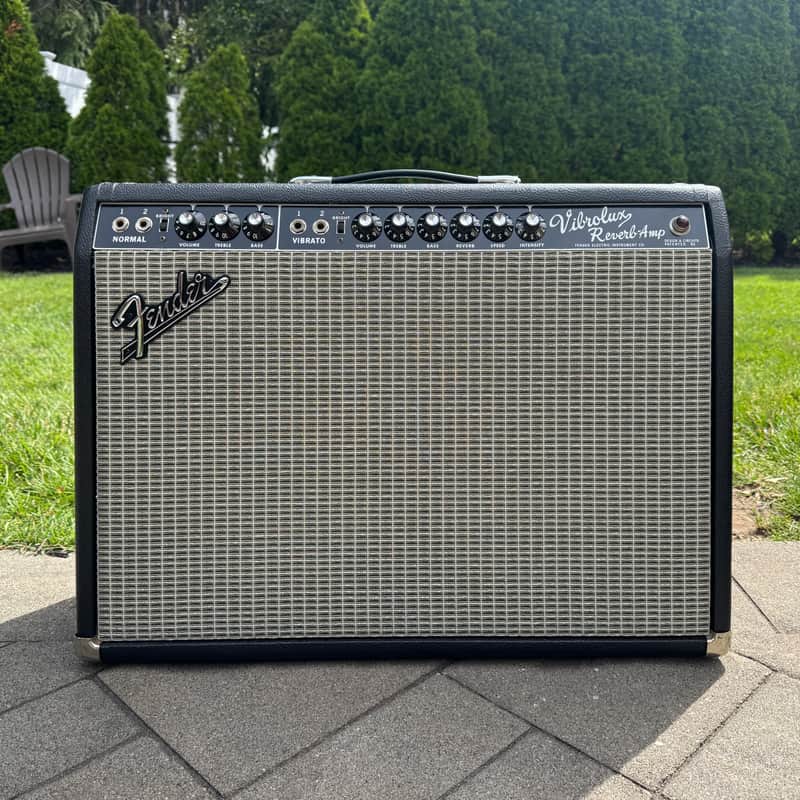

Offered for sale is a documented vintage Fender Vibrolux Reverb built around an original late-1965 blackface Vibrolux Reverb chassis with its original Schumacher transformer set, original Jensen C10NS speakers, and an original 1966 Vibrolux Reverb cabinet professionally restored by Mojotone in 2024.

This amp has been in my possession since 2003. I purchased the original orphaned chassis and speakers as a project and have spent more than two decades carefully restoring and preserving it while retaining as much originality as possible. The sale includes extensive documentation, original removed components, restoration receipts, and photographs dating back to the original acquisition.

This is not a collector-grade "all-original" museum piece, but rather a professionally maintained, highly documented vintage Vibrolux Reverb with original transformers, original Jensen speakers, original blue molded signal capacitors, and a circuit that remains substantially original to Fender's AA864 blackface specification.

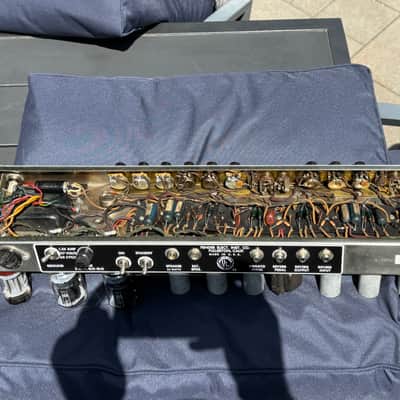

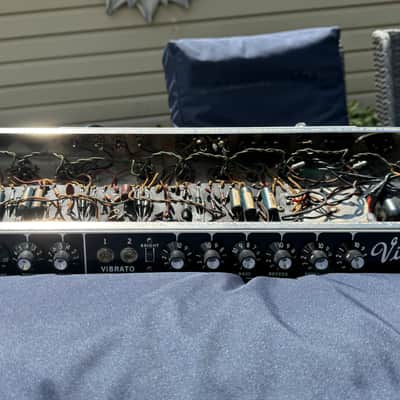

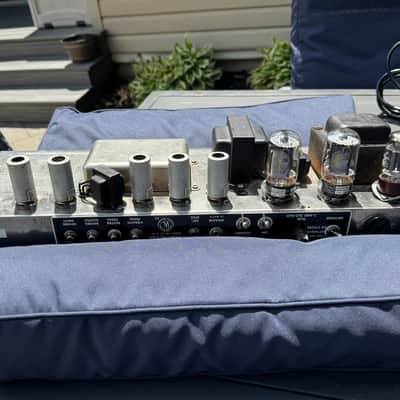

Chassis & Circuit

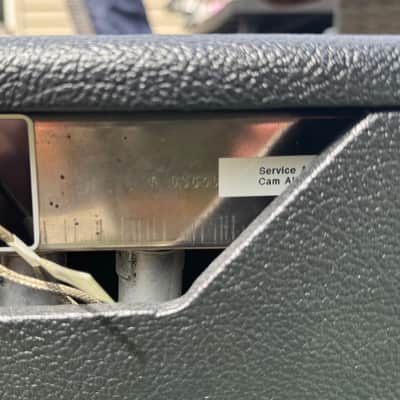

• Original Fender Vibrolux Reverb chassis, serial A03640

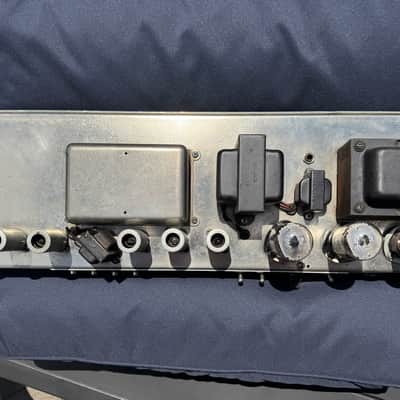

• Original Schumacher power transformer, Fender 125P26A, Schumacher 606-5-36
• Original Schumacher output transformer, Fender 125A6A, Schumacher 606-5-39
• Original Schumacher choke, Fender 125C3A, Schumacher 606-5-39
• Original Schumacher reverb driver transformer, Schumacher 606-5-39

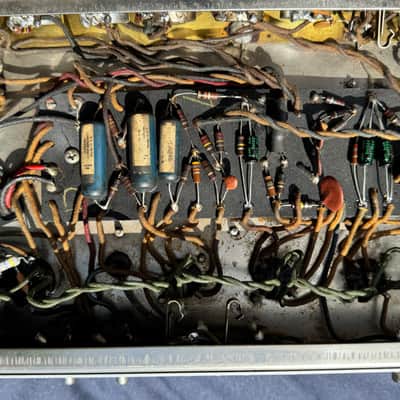

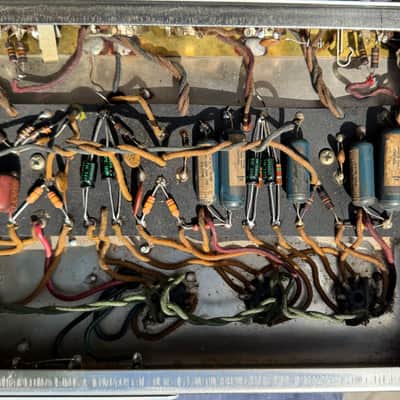

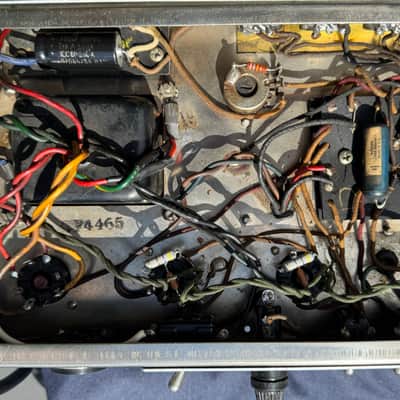

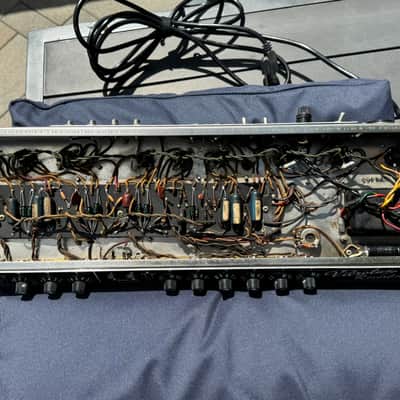

• Original eyelet board
• Original lead dress
• Original blue molded signal capacitors retained
• Circuit remains substantially original and consistent with Fender's AA864 blackface Vibrolux Reverb specification
• Replacement front & rear control panels and knobs.

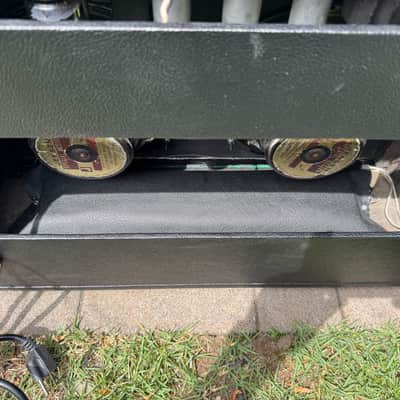

Speakers

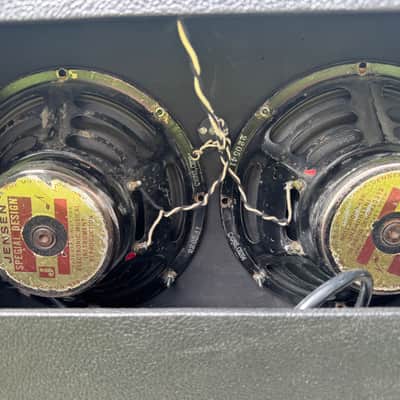

• Matching pair of original Jensen C10NS speakers
• Jensen EIA code 220541
• Original 1965 Jensen-labeled speakers from the final period before transition to Fender-branded labels
• Both speakers professionally reconed by WeberVST in November 2003
• Ribbed Weber cones with light edge doping specified to closely replicate original Jensen characteristics

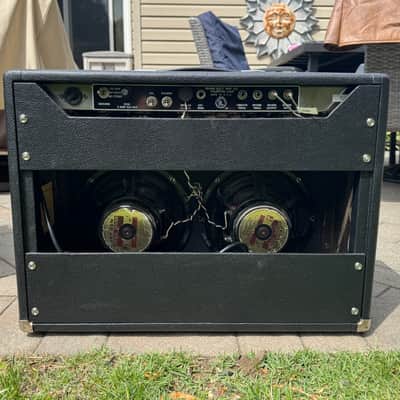

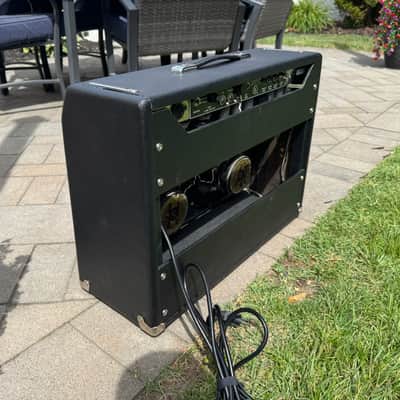

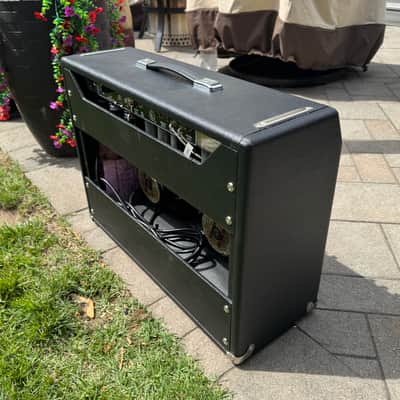

Cabinet

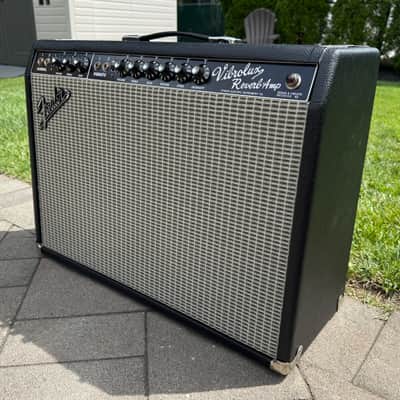

• Original 1966 Fender Vibrolux Reverb cabinet

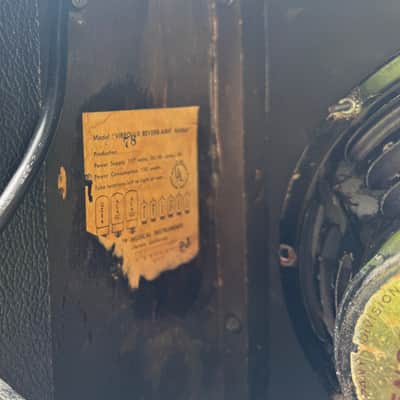

• Tube chart product code 78
• Tube chart date code PJ (September 1966)
• Tube chart circuit designation AA864
• Original tube chart remains intact

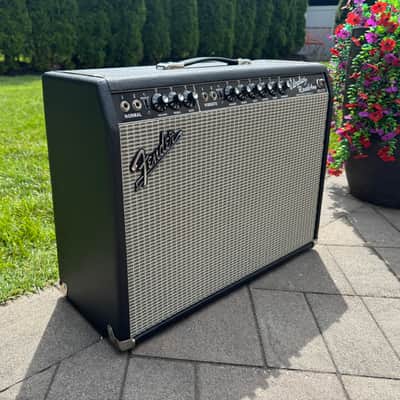

• Re-tolexed by Mojotone in '24 with new baffle board, aged cloth, "Fender" logo and Chassis Straps.

Recent Service (2025)

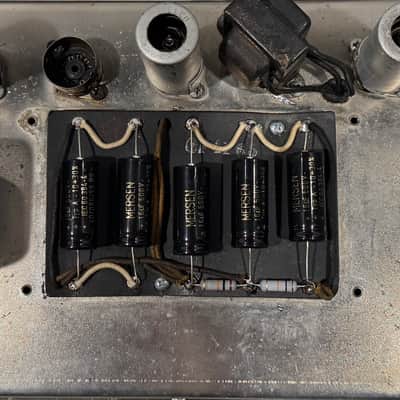

• New F&T / Mersen filter capacitors installed in doghouse
• New power supply resistors installed
• New Sprague Atom electrolytic capacitors installed throughout circuit
• Failed plate load resistors replaced with modern flameproof resistors
• Amp serviced for reliability while preserving original signal-path components wherever practical

Controls & Hardware

• Majority of original CTS potentiometers retained
• Vibrato channel volume control replaced with CTS potentiometer (Original Included)
• Reverb control replaced with CTS potentiometer
• Tremolo speed and Intensity controls replaced with CTS potentiometer
• Grounded 3-prong power cord installed
• One (1x) Switchcraft replacement reverb RCA jack installed

Tubes

• Full complement of JJ preamp tubes, and JJ GZ34 / 5AR4 rectifier tube
• Matched pair of Tube Amp Doctor (TAD) 6L6GC power tubes

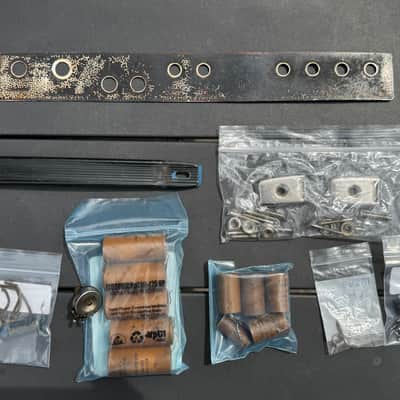

Included With Sale

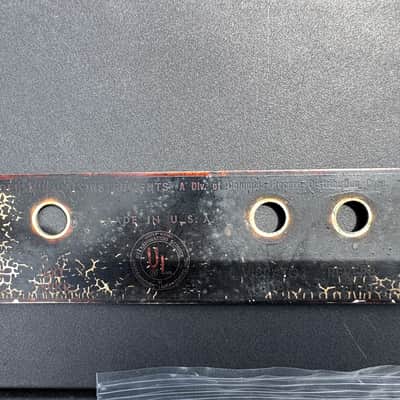

• Damaged Original CBS-era rear panel reading "A Division of Columbia Broadcasting Systems"

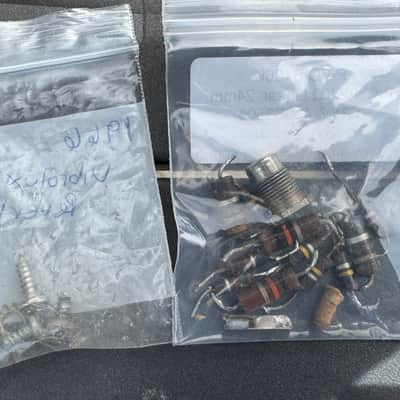

• Original removed Mallory electrolytic capacitors
• Original removed resistors
• Original (as far as I know) cabinet handle and end caps.

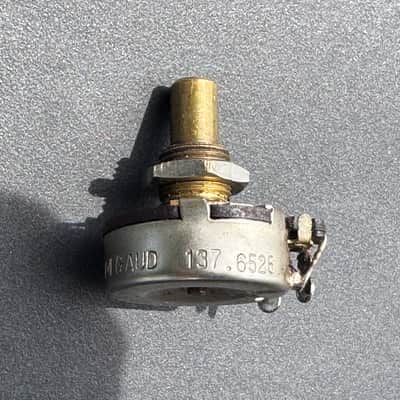

• Original vibrato channel volume potentiometer
• Original reverb RCA jack components
• Service records
• WeberVST recone documentation
• Mojotone restoration documentation
• Historical photographs documenting the restoration process dating back to 2003 ownership

Condition

This amplifier is fully functional and ready to play.

Cosmetically it presents very well thanks to the professional Mojotone cabinet restoration while retaining the character and originality of the underlying vintage chassis and components.

Please review all photographs carefully and feel free to ask any questions.

A rare opportunity to acquire a documented blackface-era Vibrolux Reverb with original Schumacher iron, original Jensen speakers, extensive provenance, and over twenty years of known ownership history.
