Happy Nerding LED Meter Eurorack Module (Black)
This seller has not set a shipping cost for Continental U.S.. Please contact them to ask about shipping.
Only 1 left
Grab it before it's gone
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb

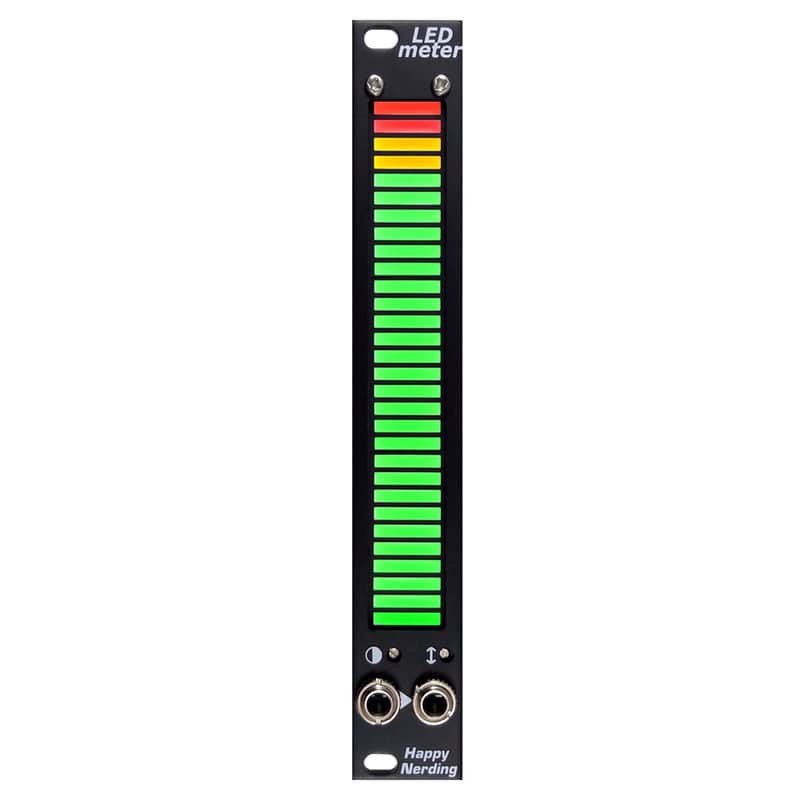

LED Meter is a handy utility module designed to show audio levels
There are total 30 led segments, each one roughly corresponds to 1 dB of level, so it is 30 dB of measurement level available with this module. Bipolar version can be switched to audio level mode with the help of onboard jumper.
The module has an input for the signal to be displayed, and its buffered copy is sent to the output for further processing, so no external splitter is needed.
Two trimmers are accessible via holes on the front panel: left trimmer adjusts brightness and right trimmer is used for the level adjustment. So the module can represent full scale signals ranging from 2 V to 12 V.
