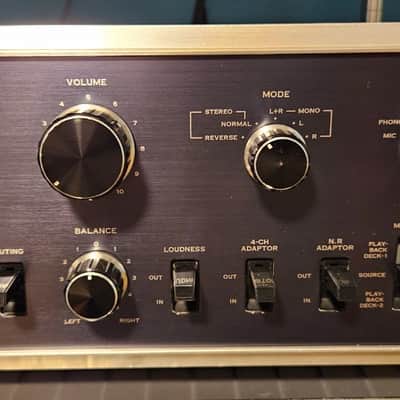

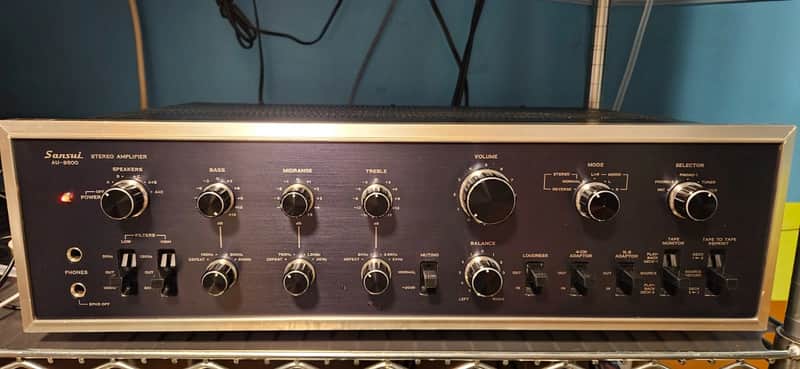

Sansui AU-9500 - Fully Restored

Sansui AU-9500 vintage integrated amplifier for sale. This is in excellent condition and has been fully restored. Sounds absolutely amazing with the classic Sansui sonic character; powerful, rich, musical tube-like sound.

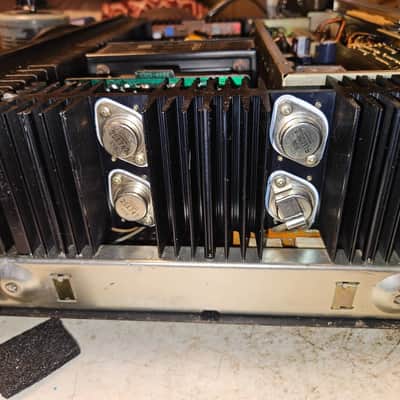

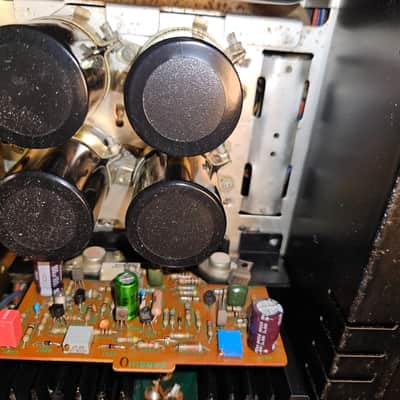

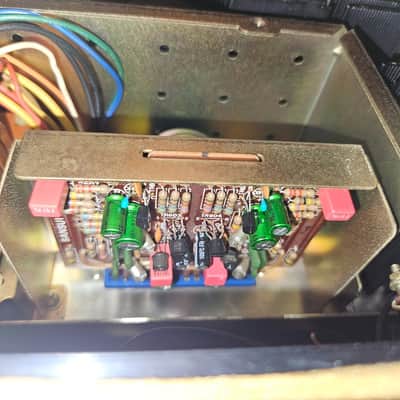

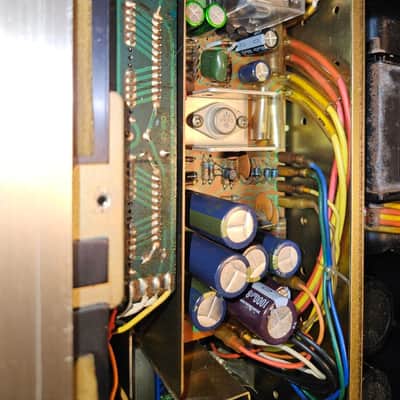

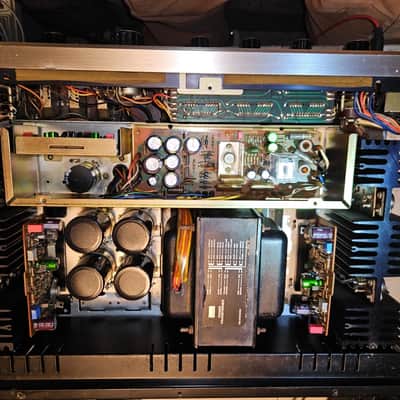

Extensive restoration includes; power supply and amp boards completely rebuilt with nearly every transistor replaced, all capacitors and all solder connections reworked, all bias pots replaced, all switches and pots cleaned, all connectors scrubbed and cleaned, all diodes replaced, power indicator lamp replaced with new LED, amplifier bias set to factory specs, power cord cleaned and prongs cleaned and polished, tested and confirmed for a return to its former glory!

The AU-9500 was the last integrated amplifier overseen by Sansui's founder, Kosaku Kikuchi, before his retirement, often regarded as his personal masterpiece. This was his swan song creation.

Key Features & Technical Specifications:

- Power Output: 75W+75W RMS (20-20,000Hz)

- Circuitry: All-stage, direct-coupled OCL, parallel push-pull

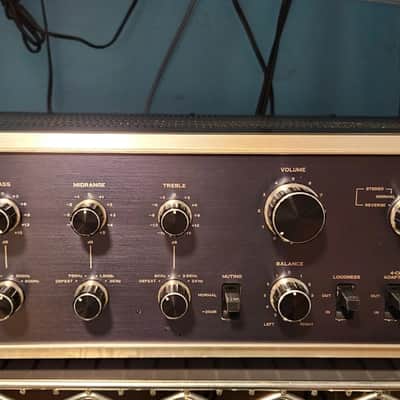

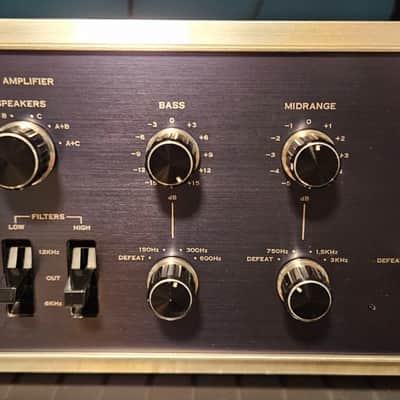

- Tone Control: Triple Tone Control (TTC) for flexible adjustment of bass, middle, and treble

- Filter System: 12dB/oct active filter circuit

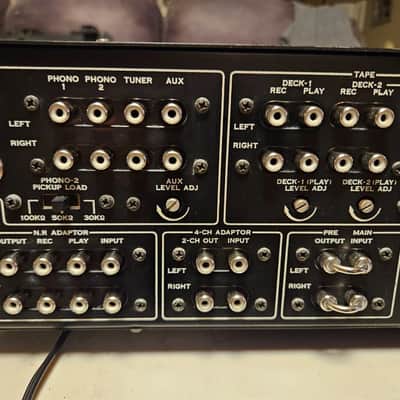

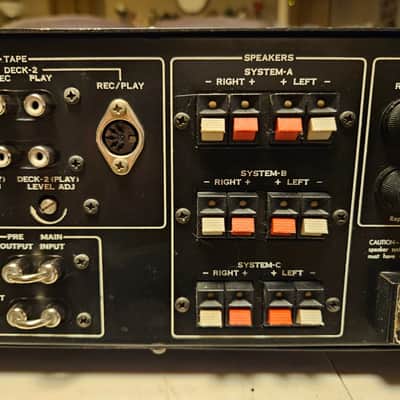

- Inputs: Versatile inputs including two phono (MM), microphone, and multiple line inputs

- Design: Heavy, durable construction with a classic black faceplate

- Frequency response: 15Hz to 40kHz

- Total harmonic distortion: 0.1%

- Damping factor: 50

- Input sensitivity: 2.5mV (mic), 2.5mV (MM), 100mV (DIN), 100mV (line)

- Signal to noise ratio: 65dB (mic), 75dB (MM), 85dB (line)

- Output: 100mV (line), 30mV (DIN), 0.8V (Pre out)

- Speaker load impedance: 4Ω to 16Ω

- Dimensions: 140 x 500 x 347mm - Weight: 23.3kg (51.4lb)

Available for demo if needed. I have recently swapped this out for a separate preamp and amp, otherwise I would keep this beast.
