Casio CSM-10P Digital Piano Module

Casio collectors! Complete your collection with this vintage Midi Piano module. Powered by batteries or 9V power supply. Brand new power supply (wall wart) is included. Polarity is reversed as per Casio specification (9VDC on outer sleeve, ground reference is on the center pin receiver). Tested and works with unit!

Features:

• MIDI piano sound module
• 5 Preset sounds: piano, harpsochord, vibraphone, elec piano, pipe organ
• 4 Built-in demos (Etudes by FF Chopin)
• Front-panel controls: Demo switch, Preset switch, On / Off switch, Volume control

The Casio CSM10P is a small (322 x 236 x 60mm) sound module which can be driven from any MIDI source, such as a MIDI keyboard or a sequencer. It uses 12-bit digital sampling to generate five keyboard instrument timbres, all of which are 16-note polyphonic: Piano, Harpsichord, Vibraphone, Electric Piano, and Pipe Organ. The Piano, Vibraphone and Electric Piano timbres have touch response - they respond to MIDI Note-On velocity information from a touch-sensitive MIDI keyboard, for example), while the Pipe Organ and Harpsichord timbres realistically ignore it.

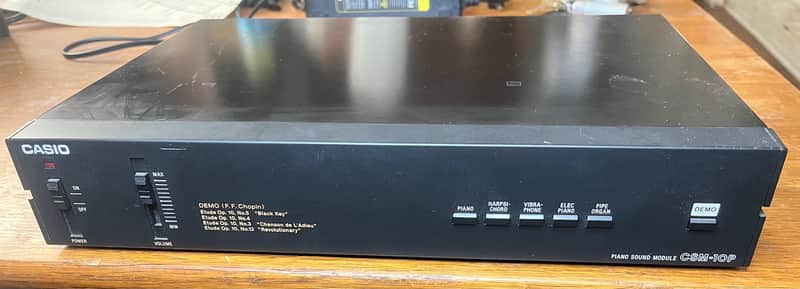

Timbre selection is done by pressing one of five buttons on the front of the module. Another button selects the continuous playing of four demonstration tunes. An on/off switch with LED and a volume slider complete the front panel. On the rear panel are MIDI In and Thru sockets (no Out), a DC 9V power supply input, and a single Line Out jack socket, together with miniature switches to enable MIDI channel selection (1-16 or Omni) and a rotary control for tuning. Underneath the unit is a battery compartment which takes six AA cells.
