Phasemation PP-1000 MC Phono Cartridge, DLC Body, 6N OFC Coil, Line contact Diamond on Boron Cantilever

From my private collection:

This is one of the best-sounding cartridges I have kept for years.

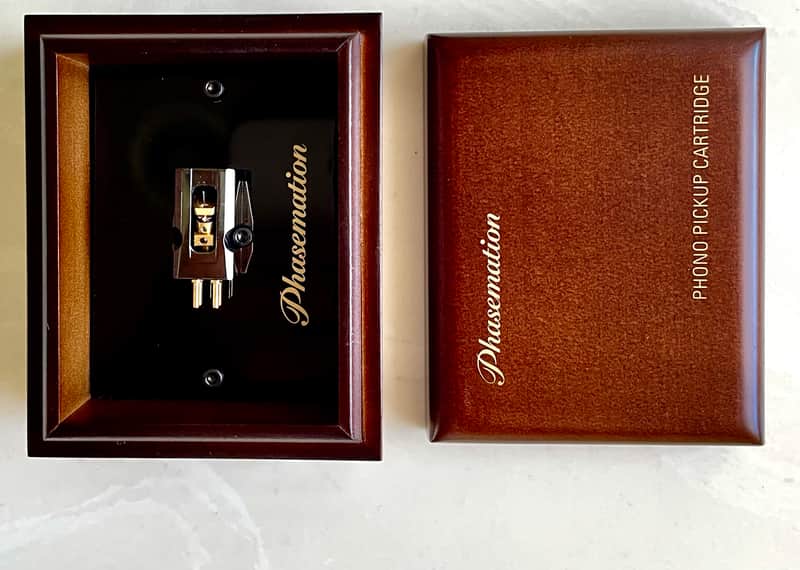

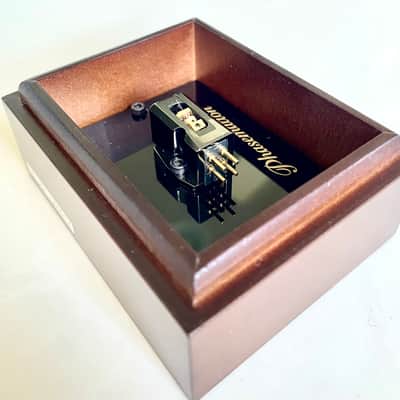

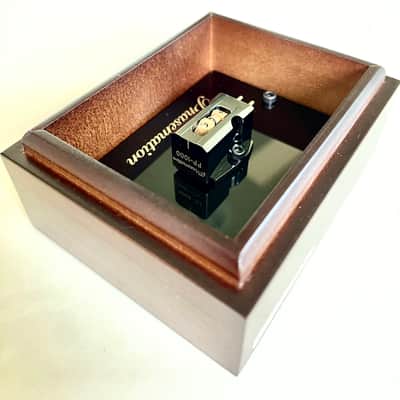

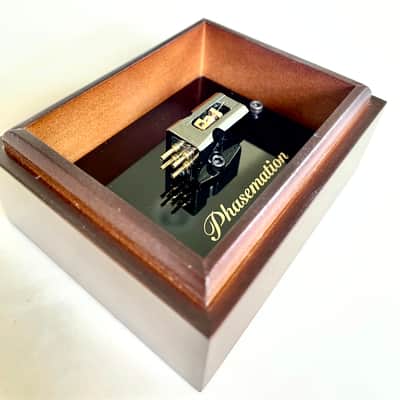

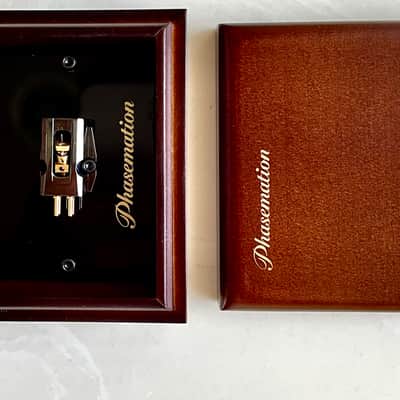

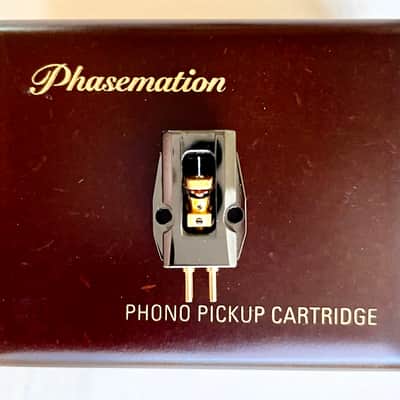

Phasemation PP-1000 MC Phono Cartridge.

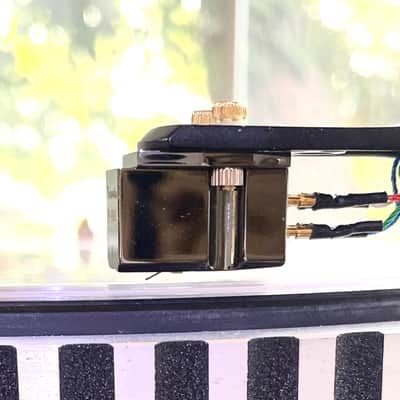

This cartridge is in very good operational and cosmetic condition, the sound is detailed, fast, and dynamic, stylus still sharp, cantilever and suspension is also in excellent condition. Used under 250 hours.

Draw Out a Virtual Feel of Music and the Artist's Passion Carved in the Record

The Phasemation brand is rooted foremost in cartridge development. The fruits of their research have accumulated since the P1 cartridge release 10 years ago. Even then, Phasemation cartridges had extremely fresh midrange/treble and rich bass, woven together in perfect harmony. In keeping with that legacy, Phasemation proudly released their flagship MC cartridge PP-1000.

Redesigning the Magnetic Circuit

The magnetic circuit of P-1G has been reconsidered in full scale; as a result, the shapes of front yoke and pole piece have been redesigned. Therefore, the shapes well suited for efficiency and magnetic uniformity have been successfully realized. It has been realized that the output is increased without increasing the mass of vibration section.

Redesigning the Body Structure

The material of P-1 body has been reconsidered from the beginning in order to get the best balance of sound quality. The materials of base and body have been respectively changed to stainless material and duralumin. Furthermore, DLC (Diamond Like Carbon) *1) coating is conducted; thereby, the sound quality being well suited for the rigidity and vibration-damping properties and being also suitable to be a flagship has been realized.

*1 DLC(Diamond Like Carbon)is a generic name of carbon film to be produced with vapor phase synthesis utilizing ion processing; and the high rigidity and high electric insulation similar to a diamond are provided for it.

Inheriting the High Quality Materials for Audio Sound
High quality materials for audio sound verified in P-1G and other models are inherited; and they are well-acknowledged until now for the following parts: Cantilever made of pure boron material, Magneto coil, pure iron coil, bobbin and wire damper made of 6N oxygen-free copper wire, and others.

Please watch the YouTube videos:

Technical Specifications

Power Generation Method: Moving Coil Type

Impedance: 4 Ohm

Applicable Stylus Force: 1.7 to 2.0g

Output Voltage: 0.29mV(horizontal direction of 1kHz 50mm/s)

Compliance: 8.0X10(e-6)cm/dyne

Playing Frequency Range: 10Hz to 30kHz

Separation: 30dB or more (1kHz)

Channel Balance: Within 1dB (1kHz)

Range of Recommended Temperature 20? to 26?

Tare: 14.3g

Stylus Chip: Diamond(line contact / curvature 0.03×0.003mm)

Cantilever: Pure Boron φ0.26

Magnet : Samarium Cobalt Magnet

Magnetic Circuit Composition Material: Permendur

Base: Stainless(Diamond Like Carbon processing)

Body Duralumin: (Diamond Like Carbon processing)

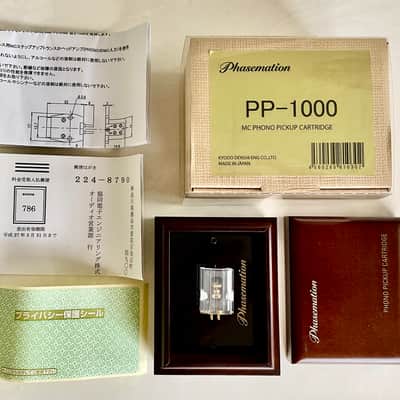

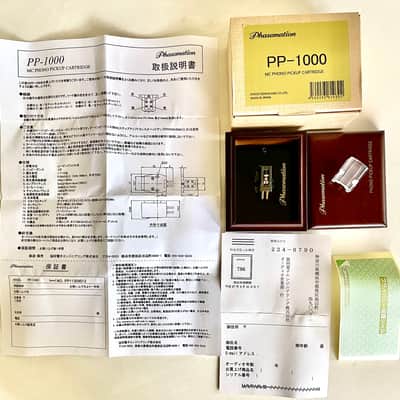

This cartridge comes with Original box, Specifications, Warranty paper, stylus guard and screws.
