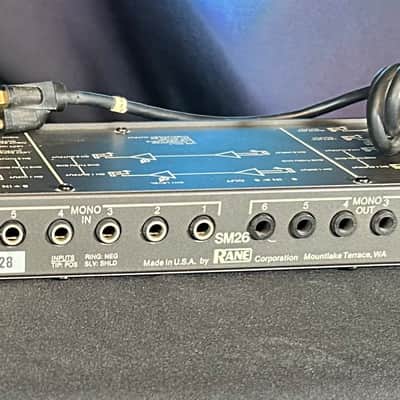

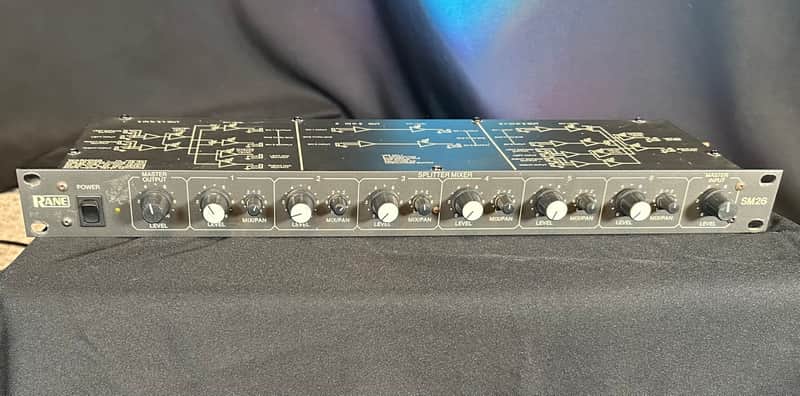

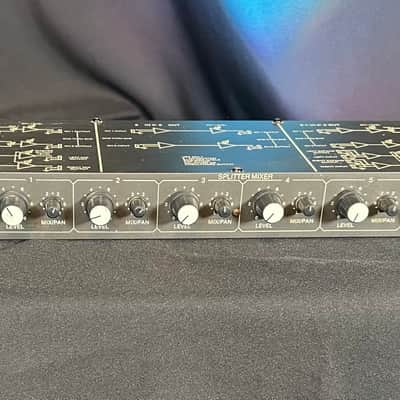

Nice Rane SM26 Splitter/Mixer.

Power Adapter Included

A few scratches on the top

Unit is in used but excellent condition

—————————————————————-

SM26S Splitter / Mixer
Feature
6 balanced mono inputs, 6 balanced mono outputs
2 main balanced Inputs, 2 main balanced outputs
6 input Level controls with 6 Mix / Pan controls
Master Input and Output Level controls
10 dBV to +4 dBu shifter
+4 dBu to –10 dBV shifter
Applications
6 mono input mixer with a stereo output
4 stereo input mixer with a stereo output
1 stereo input with 6 mono outputs splitter
1 stereo Input with 4 stereo outputs splitter
6-in, 6-out booster amplifier
Configurable to 8 outputs

Aptly nicknamed the “Swiss Army Mixer”, the SM26S is an extremely versatile single rack-space tool providing a number of different functions to solve a broad spectrum of line-level signal routing problems. Whether the need is for line mixing, line distribution or line matching/amplification, the SM26S easily performs these tasks, along with additional features for even more flexibility.

One of the most popular uses is line-level mixing for keyboards, drum machines, and effects. Expanding existing console limitations is simple. Whenever a mono or stereo sub-mix is desired, the SM26S comes to the rescue. Up to three stereo, or six mono sources easily mix together, with panning ability on every input. Many musical instrument performers find the SM26S indispensable for combining various effects and expanding the available loops on their signal processors. Here's an example of a 576-channel music mixing system using daisy-chained SM26 and SM82 Mixers.

The SM26S capabilities also include a wide variety of functions such as live recording splitting, -10 dBV to +4 dBm level matching, intercom splitting, line boosting, hotel and club zone management, restaurant paging systems, adding additional monitor buses for studio or stage use, and many more custom applications.

The SM26S provides full expansion capabilities for all applications. Simple 1/4" TRS connectors allow expansion using patch cords. Using these provisions, an unlimited number of lines may be mixed or split upon demand. For example, three units create either an 18 input mixer or an 18 output splitter, or a combination of both.
