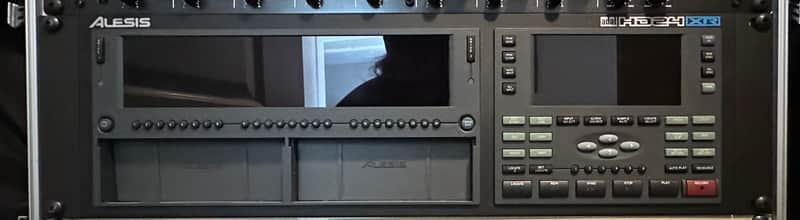

Alesis ADAT HD24XR 2010 - Black

Mint condition. Fully functioning.

The Alesis ADAT-HD24XR is a highly regarded, 24-track hard disk recorder. It captures high-resolution audio (up to 24-bit/96kHz) using standard, hot-swappable IDE computer hard drives. Known as the premium version of the standard HD24, the "XR" features superior MasterLink-quality A/D and D/A converters.

Key Features

• Track Count & Resolution: Records 24 tracks simultaneously at 44.1kHz and 48kHz, or 12 tracks at 88.2kHz and 96kHz.
• Conversion: Features upgraded 24-bit, 128x oversampling converters compared to the base HD24.

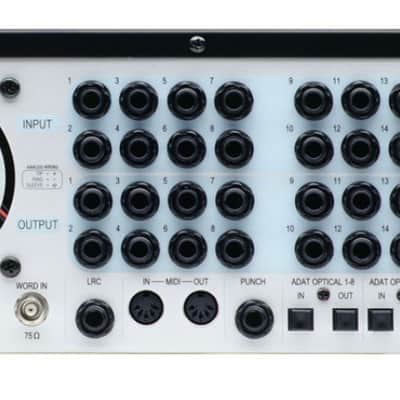

• Connectivity: Offers 24 channels of balanced 1/4" TRS analog I/O and ADAT Optical I/O.

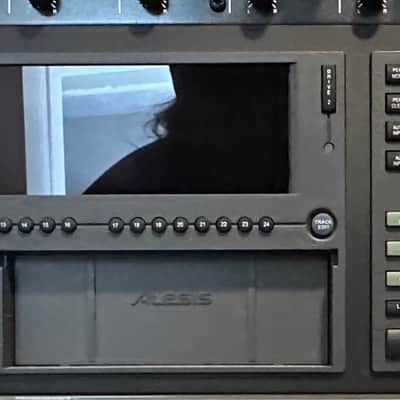

• Media Storage: Dual front-panel hot-swappable bays use standard IDE/PATA hard drives, allowing for fast backups.
• Editing & Sync: Includes onboard cut, copy, paste, and undo editing. It also supports ADAT Sync, Word Clock, and MIDI.

Workflow & Modern UsageOriginally released in the early 2000s, the HD24XR is still widely used in 2026 for hardware-only setups and "live-off-the-floor" tracking sessions.

• Computer Transfer: You can connect the recorder to a local network via the built-in Ethernet port to drag and drop your WAV files directly to a DAW.
• No OS Worries: It operates as a dedicated standalone recorder, meaning you completely bypass computer crashes, latency issues, and forced software updates during tracking.

Common Limitations & Workarounds

• Hard Drives: The unit requires older IDE/PATA hard drives, which are becoming scarce. Many users rely on IDE-to-CF (CompactFlash) or IDE-to-SATA adapters to use newer, more reliable media.
• Size Limits: Older BIOS versions may limit hard drive recognition, requiring careful drive partitioning (often around 32GB) or a BIOS update.
