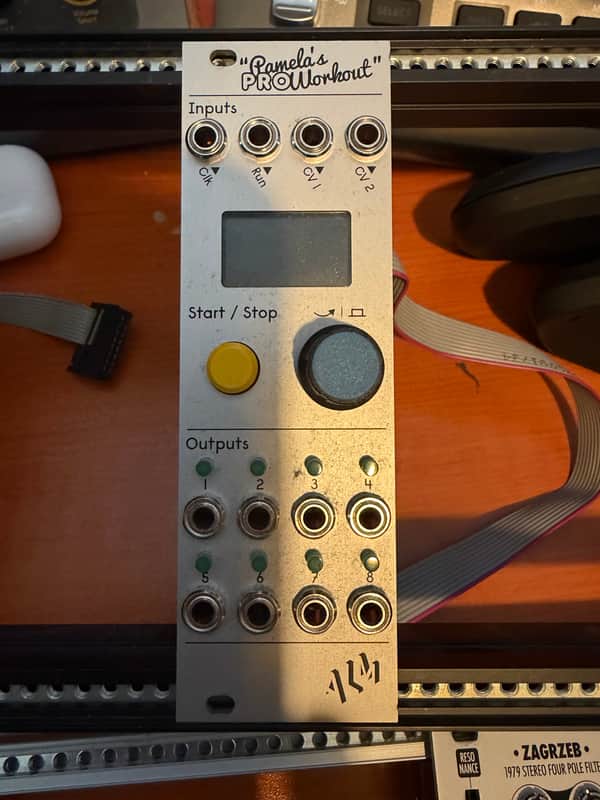

’Pamela’s PRO Workout’ is a compact programmable clocked modulation source for your Eurorack modular system.

It provides 8 highly editable outputs producing various control voltage signals correlated and synced to a BPM based master clock.

Each output can provide everything from simple clocked triggers, complex rhythmic wave- forms, quantised melodic patterns to random chaos with direct and assignable CV control over numerous parameters. These features together with a quick and easy to use interface provide almost limitless synced modulation possibilities in a tiny space.

Building on the original ’Pamela’s Workout’ & ’Pamela’s NEW Workout’ the evolved ’PRO’ Pam maintains the precursor’s form factor and intuitive workflow but improves and adds many new features with upgraded hardware, more CV inputs, a new full colour hi res display and rewrit- ten software adding many new enhancements like micro grid timings and cross output modulations.

Through optional expander modules more CV input and outputs can be added with support for external non euro equipment through Midi and Din Sync outputs.

Please enjoy your next generation PRO workout!

Features

• BPM based clock with tempo rates 10-330BPM.
• Realtime intuitive EASY and quick theme-able user interface with full colour high resolution display.
• 8 Clocked voltage outputs each with independent adjustable; Clock divisors and multipliers from /16384 to x192 including various non-integer factors.

• Numerous waveform types from staples to envelopes to ratchets to random.
• waveform level, offset, phase and shaping control.
• Extensive Euclidean, probability and beat based looping for pattern creation.
• Cross output modulation with numerous operations.
• Off-grid ’Flex’ microtiming for swing, human and bouncing ball type timing effects. All output parameters assignable up to x4 built in CV inputs with individual offset, attenuation and metering.
• Per output and group saving and loading to 64  banks.
• All settings remain between power cycles.
• Voltage and direct control of clock stop/start, reset and external syncing.
• Support for expander modules for additional CV in and outputs.
• USB-C for quick and easy ‘drag and drop’ firmware updates and memory bank backup via computer.
• Skiff-friendly with reverse power protection.
• Made in England

Specifications

• Size: 8HP
• Power: +12v 60ma / -12v 10ma
• Depth: 32mm (approx with power header)
• Outputs: 0-5v buffered low impedance. 12 bit res. 3.8khz max update freq. Inputs:CV0v-5v/Clock, Run-risingedge 700mVmin.
