Ladik Quant Q-010 eurorack quantizer

Q-010 Easy quantizer for Eurorack / Doepfer A100.

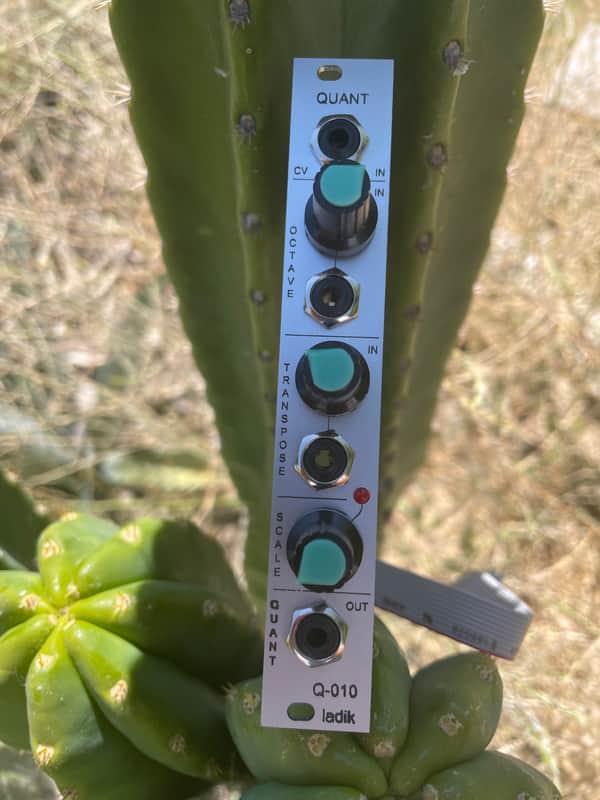

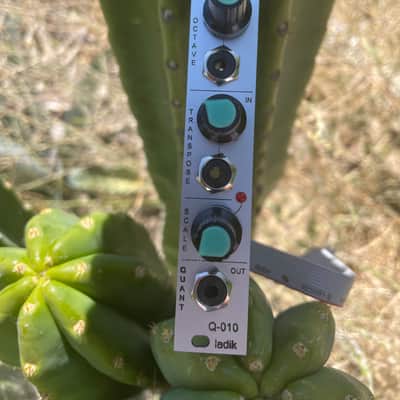

From top:
CV input jack (input range +-12V, control/working range 0-5V)
Octave transpose knob (manual transpose or transpose CV amount) & jack (ccw = 2 octaves down, 1 octave down, mid=no transpose,  1 octave up, cw = 2 octaves up), 0-5V control range if knob is CW (0-1V = -2oct, 1-2V = -1oct, 2-3V = no transp, 3-4V=+1oct,  4-5V = +2oct)
Semitone transpose knob (manual transpose or transpose CV amount) & jack (ccw = no transpose, cw = 11 semitones up), 0-5V control range if knob is CW (0V = no trasp, 5V = +11 semitones)
Scale select knob & LED
CV output jack (0-5V)

S-180 sequencer family Extensions/Add-ons:
S-181 Outs-8 – Breakout board (individual trigger outputs for every step, 4HP).
S-182 CV-8 outputs (8x step CV + overall CV output range, 4HP)
P-110 Switchable trig/gate combiner (switchable „dual 3-to-1″ or „7-to1 combiner“ = logic „or“ = max signal selector, 4HP)
Q-010 Easy quantizer (16 scales, VC octave and VC semitone transpose)
S-187 voltage controlled clock/trig/gate modifier (pulse delay and width)
S-188 Voltage controlled clock shuffler (manual or external CV swing setting, 4HP)
S-190 Clock distributor (to chain up to 8 S-180, up to 64 steps, 16 clock distribution modes, 8HP)
