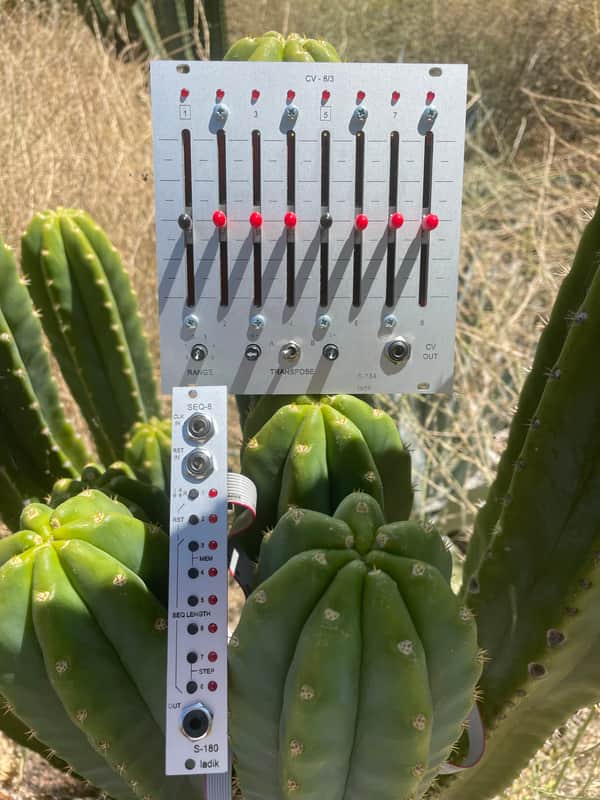

Ladik Seq-8 & CV-8/3 sequencer bundle S-180+S-184

This Ladik sequencer set is a competely analog two part sequencer. These are rare to find, especially in America.

S-180 trigger sequencer + CV extension module:

8 CV step voltage sliders + LEDs (8 black and 8 red caps enclosed) white/black/red, see below
1 overall voltage range knob
2 shift/transpose knobs + transpose switch (A/B)
1 CV out jack
internal jumper for 5V/10V max. step voltage range. P-060 – switches can be used for switching from front panel.

More S-184 CV out modules (+S-182s and/or S-183s too) can be slaved to one S-180 sequencer = more control voltage rows

S-190 clock distributor can be used for chaining more S-180s to get longer sequence, S-210 4ch switch can be used for switching output CVs (up to 32 steps)

to change seq mode (cycling in modes) – push and hold button no.1 for about 1s, LEDs will show selected mode
to on/off steps – push appropriate button shortly
to change seq length – push and hold appropriate button for about 1s

Long press of button 2 works as “manual reset” or “sequence length=2”.
Function of button 2 (its long press) can be swapped by holding button 2 at power up. This selection is memorized.
Seq length is selectable from 2 (or 3 – depends of selected button 2 function) to 8 steps

Button function table:

S-180 8-step trigger sequencer for Eurorack / Doepfer A100

Can be used as clock divider too (up to divide-by-eight):
to “divide-by-three” for example set sequence length to three with first step active only. Incoming clock pulses no. 1., 4., 7… appears on S-180 output…

S-180 family Extensions/Add-ons:
S-181 Outs-8 – Breakout board (individual trigger outputs for every step, 4HP).
S-182 CV-8 outputs (8x step CV + overall CV output range, 4HP)
S-183 CV-8/2 outputs (8x step CV + overall CV output range, shift/transpose knob & input jack, internal jumper for 5V/10V range, 8HP)

S-184 CV-8/3 outputs w. sliders (8x step CV + overall CV output range, 2 shift/transpose knobs & switch, internal jumper for 5V/10V range, 8HP)
P-110 Switchable trig/gate combiner (switchable “dual 3-to-1” or “7-to1 combiner” = logic “or” = max signal selector, 4HP)
Q-010 Easy quantizer (16 scales, VC octave and VC halftone transpose)
S-187 voltage controlled clock/trig/gate modifier (pulse delay and width)
S-188 Voltage controlled clock shuffler (manual or external CV swing setting, 4HP)
S-190 Clock distributor (to chain up to 8 S-180, up to 64 steps, 16 clock distribution modes, 8HP)

S-210 4ch Switch (to switch output CVs to get up to 32 steps, 8HP), can be used for switching audio too
