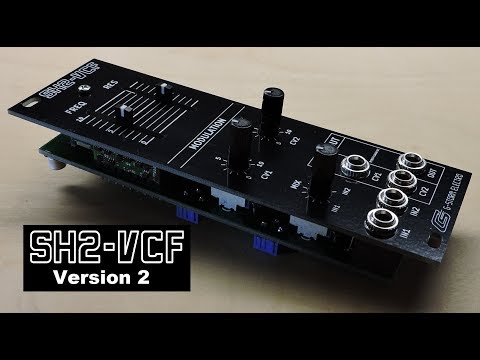

This is the SH2-VCF: a faithful adaptation of the Roland SH-2 low pass resonant 4-pole filter circuit in a slim, skiff/boat-friendly, 8HP Eurorack format module.

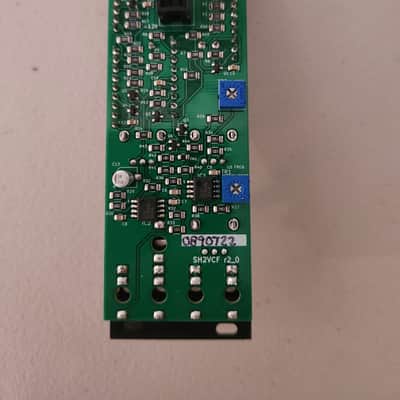

Great care was taken to keep the SH2-VCF fully analog circuit as close to the original using BA662 clones.

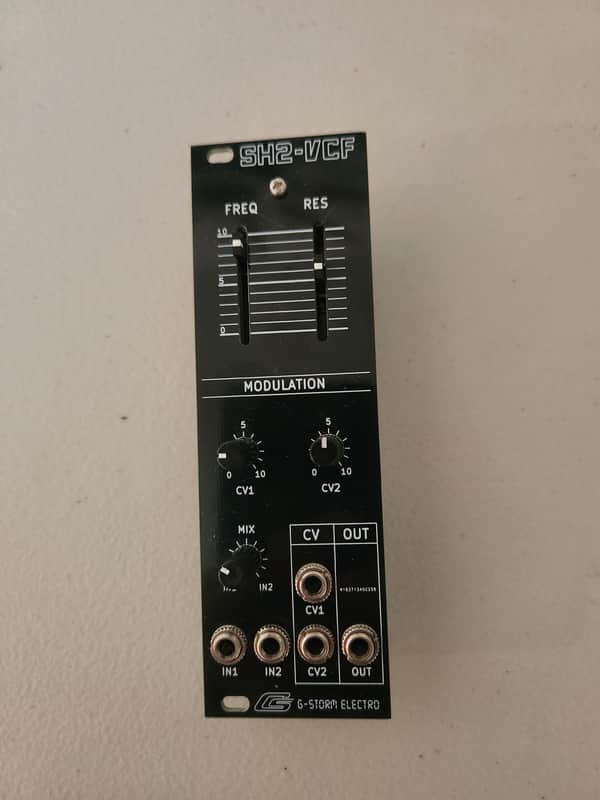

The SH2-VCF black panel boasts two audio IN jacks with a MIX pot. Two CV IN jacks w/ signal attenuation pots allow you to modulate frequency with any two polar/bi-polar signals. Every module is hand-crafted in limited quantities and ready to rock your world. Includes 16-pin-to-10-pin power connector cable.
Be sure to check out my other cool modules available in my Reverb store.
Specifications:
Inputs - 2 Audio Inputs, 2 CV Inputs
Power: 10-pin Eurorack standard shrouded header
Outputs - 1 Mono Output
Current - 18mA +12V, 22mA -12V, 0mA +5V (not used)
Depth - 22mm
