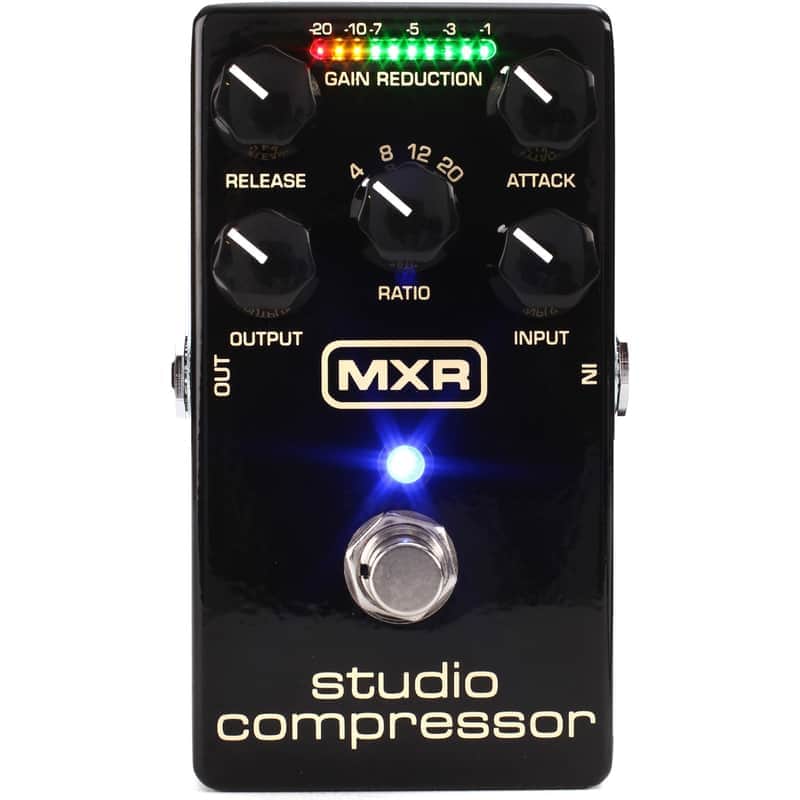

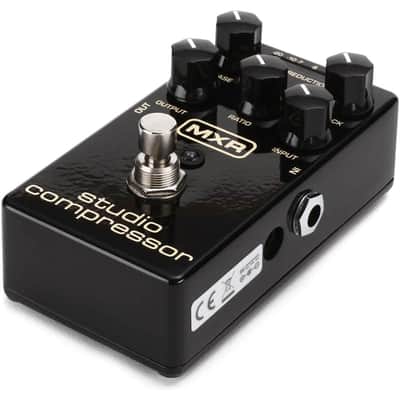

Dunlop MXR M76 Studio Compressor Guitar Effects Pedal. The Studio Compressor provides recording-quality compression with Constant Headroom Technology and true bypass switching for clear, clean performance.

The MXR design team took a classic recording studio fixture and stuffed it into a pedalboard-friendly box. The Studio Compressor features Attack, Release, Ratio, Input, and Output controls so you can fine-tune your compression level-from subtle to squashing-right on stage with visual feedback from a bright LED gain-reduction status meter. Constant Headroom Technology provides tons of headroom for clear, transparent performance that's as dynamic as you need it to be. It's all packed into a durable, lightweight aluminum-housing that's the size of a Phase 90.

Features:

• Classic studio compressor in a Phase 90-sized pedal
• CHT Constant Headroom Technology for clear, clean performance
• Ten Gain Reduction status LEDs
• True bypass
• Powered by one 9-volt battery (remove bottom plate to install), a 9-volt AC adapter such as the Dunlop ECB003/ECB003EU, or the DC Brick and Iso-Brick power supplies

Specification:

• Input Impedance: 1 MΩ
• Output Impedance: 600 Ω
• Max Input Level: +14 dBV
• Max Output Level: +8.5 dBV
• Frequency Response: ±1 dB, 20 Hz to 20 kHz
• Noise Floor*: -90 dBV
• THD**: < 0.5%
• Gain: 31 dB
• Compression Ratio: 4:1, 8:1, 12:1, 20:1
• Attack Time: 20 µs to 800 µs
• Release Time: 50 ms to 1.1 s
• Bypass: True Hardwire
• Current Draw: LEDs OFF 14 mA, LEDs ON 19 mA
• Power Supply: 9 volts DC
• UPC: 710137090644
• MPN: M76
