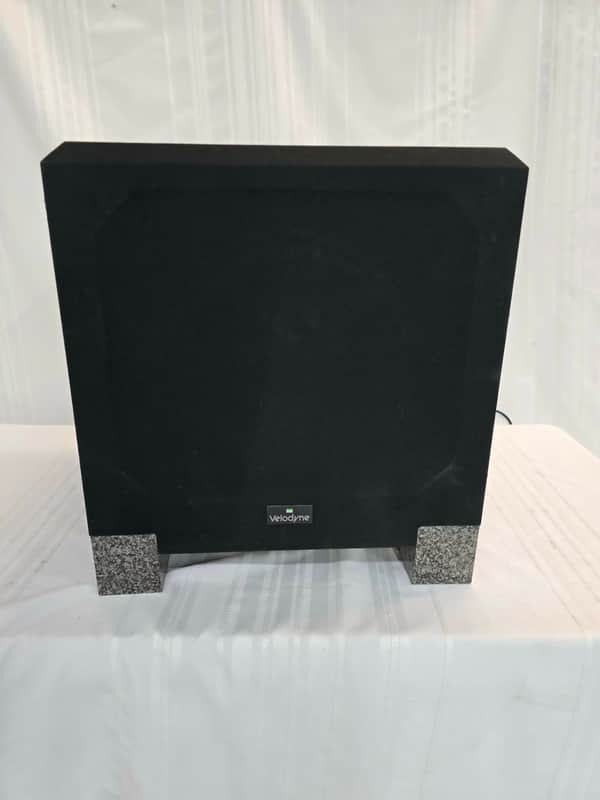

Velodyne V-1012-B Dual Driver Powered Subwoofer

Velodyne Powered Dual Subwoofer V-1012-B

The Velodyne V-1012-B is a compact home theater subwoofer featuring a 10-inch forward-firing woofer with a 38-ounce magnet and 2-inch voice coil, powered by a Class A/B amplifier delivering 60 watts RMS and 240 watts peak.

Cabinet 19" × 18.63" × 17.18"

Woofer 10" forward-firing, 38 oz magnet, 2" voice coil

Amplifier Class

A/B, 60W RMS / 240W peak Frequency Response28–85 Hz High Pass Filter85 Hz, 6 dB per octave Low Pass Filter6 dB per octave, 24 dB ultimate🔧

Amplifier & Power

The subwoofer uses an integrated Class A/B amplifier with 60 watts RMS continuous output and 240 watts peak capacity, making it suitable for moderate-sized listening rooms and home theater applications.

• Woofer specification — The 10-inch driver features a substantial 38-ounce magnet and 2-inch voice coil for controlled low-frequency reproduction
• Frequency range — Operates from 28 Hz to 85 Hz, covering the deep bass essential for movies and music
• Compact cabinet — Dimensions of 17.25" × 18.63" × 17.18" allow flexible placement in various room configurations

🎚️ Crossover & Connectivity

The unit includes both high-pass and low-pass filtering options to integrate smoothly with satellite speakers and receivers.

• High Pass Filter — Set at 85 Hz with 6 dB per octave roll off to protect satellite speakers from over excursion
• Low Pass Filter — 6 dB per octave with 24 dB ultimate attenuation for clean bass separation

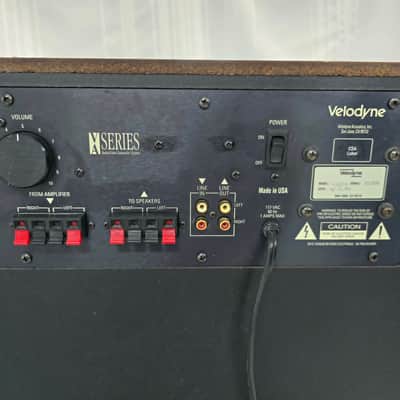

• Input flexibility — Designed to accept both line-level and speaker-level connections (consult the manual for proper setup and input selection)
