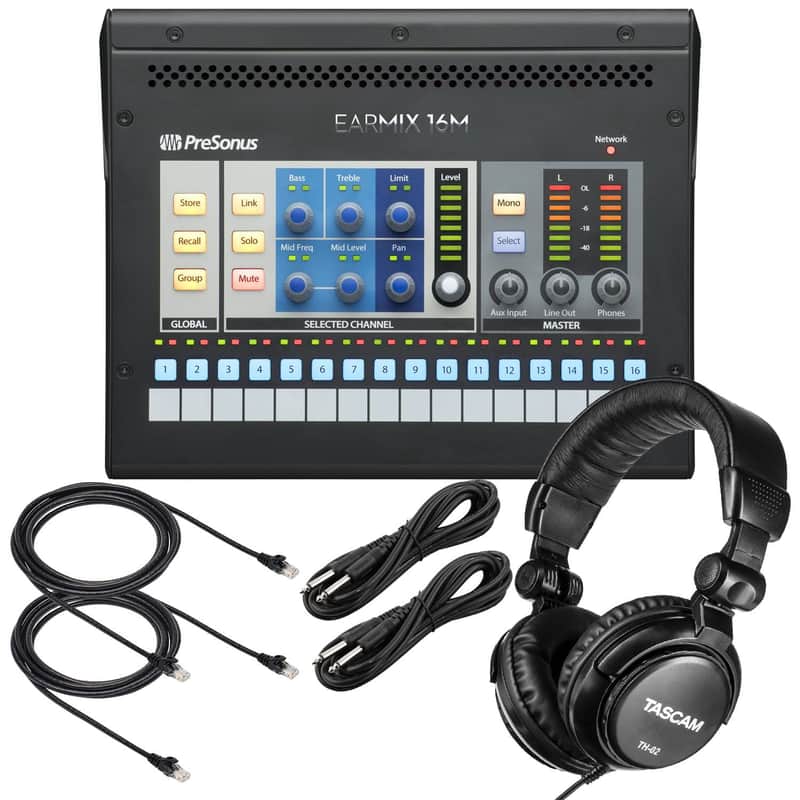

PreSonus EarMix 16M AVB Personal Monitor Mixer, Tascam TH02, (2) 1/4 Cables, (2) Ethernet Cables 10FT Bundle

The Presonus EarMix 16M is a 16-channel personal monitor mixer that is compatible with all StudioLive Series III mixers, as well as with other AVB-enabled systems. The EarMix 16M mixes 16 mono channels via AVB networking and provides stereo channel linking and channel grouping along with three-band EQ and limiting for each channel as well as the main mix. For outputs, the unit offers a pair of balanced 1/4" TRS connectors as well as a 1/4" headphone output with a loud, clear headphone amplifier capable of driving low impedance devices such as high-quality in-ear monitors. The two AVB jacks enable daisy-chaining up to 24 EarMix units with a StudioLive Series III mixer. The EarMix 16M can be powered by the included external power supply or over Ethernet (PoE) from a compatible switch.

• Analog Input/Output
  • 1/8" stereo aux input
  • 2 x balanced 1/4" TRS line outputs
  • 1/4" TRS stereo headphone output with loud, clear headphone amp that can drive low-impedance in-ear monitors
• Meters, Controls, and Processing
  • 3-band EQ with sweepable mid frequency on all channels and main mix
  • Limiter on all channels and main mix
  • Stereo channel linking
  • Channel grouping
  • Solo and mute
  • Mix scene Store and Recall; store up to 16 mix scenes locally
  • 16 x signal present and clip LEDs (one for each input)
  • 8-segment stereo output meter
  • Channel Level rotary control with 8-segment level indicator
  • Aux input level control
  • Independent monitor (line out) and phones level controls
  • Routing setup from StudioLive Series III consoles and UC Surface
• Digital
  • 16 x mono channels of input via AVB networking
  • 2 x AVB Ethernet ports
  • 24-bit, up to 48 kHz operation
• Power
  • External 24 VDC power supply (included)
  • Support for PoE power
• Physical
  • Optional mic stand mount (sold separately)

UPC: 673454006470
