NAKAMICHI DR-10 — Discrete 3-Head Cassette Deck — The Last Nakamichi Legend (1999-2002)

The Nakamichi DR-10 is the very last 3-head cassette deck produced by Nakamichi — the ultimate culmination of decades of innovation by the brand that single-handedly redefined what the cassette was capable of. A direct descendant of the legendary Dragon, it has become one of the most sought-after decks in the world: produced at the very end of the cassette era, few were sold and even fewer survive in perfect condition.

The DR-10 uses a discrete 3-head system where the record, playback and erase heads are completely independent — allowing extremely precise magnetic and mechanical azimuth adjustment and sufficient distance between heads to eliminate any magnetic interference. The playback head has an ultra-fine 0.8-micron gap to reach a response up to 21 kHz, and its coil uses top-grade oxygen-free copper (OFC). The same crystal-core head as the Dragon.

The mechanism is a marvel: closed-loop dual-capstan diffused-resonance transport, with slightly different capstan diameters on the supply and take-up sides to offset flutter and suppress parasitic vibrations. The audio circuit is fully dual-mono to eliminate all crosstalk, with a DC amplifier stage free of coupling capacitors and a pure Class A recording amplifier.

This unit is in perfect condition: flawless cosmetics, 100% functional, fully serviced. The playback head is in near-new condition — an absolutely crucial point on these machines, as the head is the irreplaceable heart of the deck. A very rare opportunity to acquire a DR-10 in this condition.

Please note: this is a 120V unit — a 120V step-down transformer is required for use in Europe.

FULLY SERVICED:

• New belts
• Heads cleaned (playback head near-new)
• Transport fully cleaned and lubricated
• Rollers and moving parts cleaned
• Contacts and potentiometers treated
• Tape speed checked and calibrated
• Tested and validated — 100% functional

SPECIFICATIONS

• Type: Discrete 3-head stereo cassette deck
• Manufacturer: Nakamichi (Japan)
• Model: DR-10
• Production period: 1999-2002 (the brand's last 3-head deck)
• Track system: 4-track, 2-channel stereo
• Tape speed: 4.8 cm/s
• Heads: 3 discrete (1 record, 1 playback crystal-core 0.8 µ gap, 1 erase)
• Head coil: Oxygen-free copper (OFC)
• Motors: Closed-loop dual capstan + reel + cam
• Transport: Diffused-resonance dual capstan, with pad lifter
• Tape types: Type I (Normal), Type II (Chrome), Type IV (Metal)
• EQ selection: Automatic
• Noise reduction: Dolby B and C
• Audio circuit: Dual-mono, DC amplifier, pure Class A recording
• Frequency response: 20 Hz - 21 kHz (±3 dB)
• Signal-to-noise ratio: > 72 dB (Dolby C) / > 66 dB (Dolby B)
• Total harmonic distortion: < 0.8% (Metal) / < 1% (Type I/II)
• Wow and flutter: < ±0.06% weighted peak / ±0.035% weighted RMS
• Counter: 4-digit digital
• Level meters: Fluorescent (FL) peak reading
• Controls: Full-logic soft-touch
• Power supply: 120V only
• Dimensions: 430 x 100 x 320 mm
• Weight: 5.4 kg
• Condition: Perfect, fully serviced, 100% functional

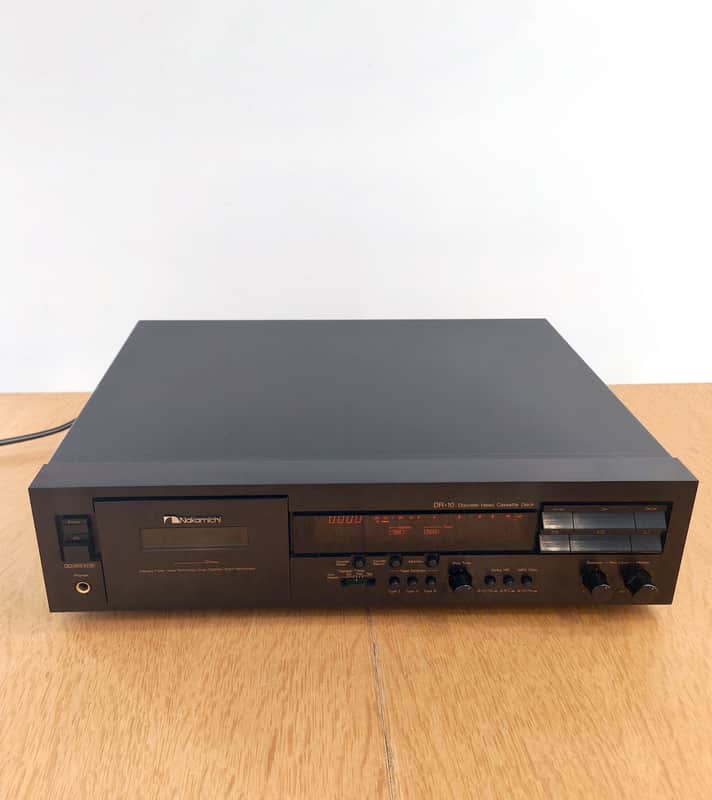

• Cosmetic condition strictly as shown in photos, please refer to listing photos!
