Zlob Modular Entropy + Expander

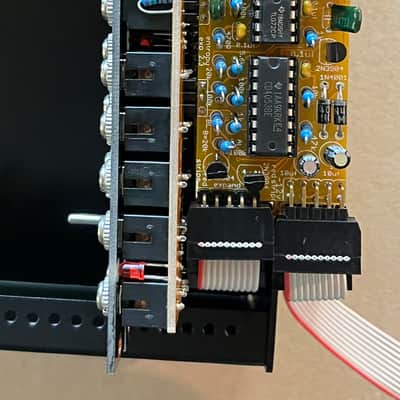

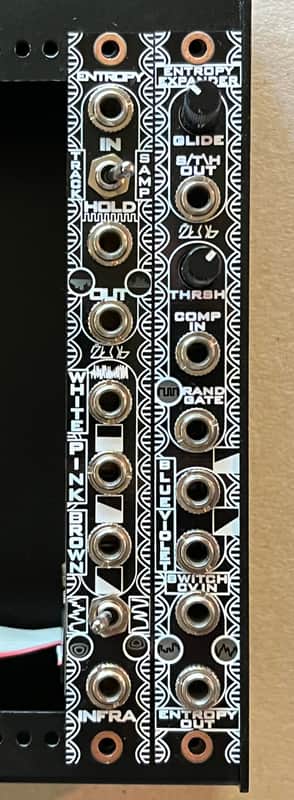

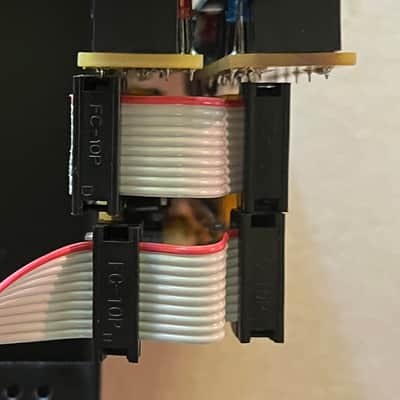

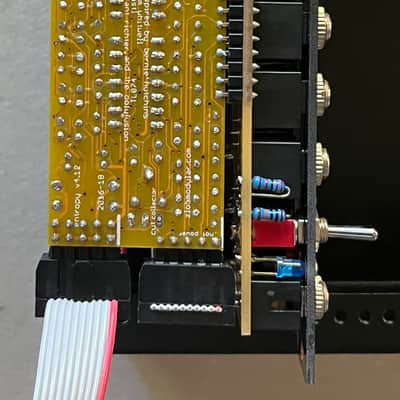

Zlob - Entropy + Expander - analog random voltage and noise generator Eurorack module - built from kits by me (experienced builder) - with power cable & screws.

from original product description:

------------------------------------------

Entropy is a 3hp analog random voltage and noise generator Eurorack Module available as a Eurorack DIY Kit, PCB and Panel, or Built.

It features sample/track and hold normalled to white noise with a toggle switch for selecting sample(switch right position) or track(switch left position) and hold function. There is also a PCB trimmer(at the top of the motherboard) to adjust the spread(gain) of random voltages out from “scalar” (low gain, counter clock wise) to large interval jumping(high gain, clock wise). All analog white, pink, and brown(red) noise 10vpp~(dependent on lower PCB trim).

Smooth/Fluctuating(Infra) random cv out with 2 range settings from wiggly with (8vpp~ with more events, switch in left position) to almost random rise and fall envelope behavior (10vpp~ with less events, switch in right position).

White noise pcb trimmer sets the amplitude of the noise which in turn influences the rate of the infra out. LED solder mask windows indicate positive(red) and negative(blue) voltage crossings. Sample and Hold droop is around 600mv~ after 5 minutes and 1.2v~ at 10 minutes.

• Width: 3hp
• Panel Material: PCB
• Reverse Power Protected
• Current Consumption: +12v: 10mA, -12v: 10mA
• Depth: 47mm
• Expandable: Yes

The Entropy Expander is a 3hp Analog Random Voltage Generator that expands upon the features of the Entropy Euroack Module. Available as a Eurorack DIY Kit, PCB and Panel, or Built Module.

The Entropy+Expander packs together some of the most random voltage options in 6hp. It provides a controllable “Glide”(slew) out for the S/T\H, a comparator with a controllable rate(“Thrsh”) of random gates(“Rand Gate”) out with an input to compare other waveforms(Comp In, inserting a cable into here breaks the white noise normalization), and high pass filtered white noise resulting in approximate “Blue noise”(+3db/octave) and “Violet noise”(+6db/octave) outs.

The unique part of the circuit is a voltage controlled A/B switch thats normalled to the “Rand Gate” out that’s switching between the S/T\H out(left Blue led window)and Infra out(right Red led window), the Glide control also effects the S/T\H coming out of the switch so you can get really random results from the “Entropy Out.” Inserting a cable into “Switch CV In” breaks the random gate normalization and lets you toggle between A/B(left S/T\H out and right Infra out, indicated by the led windows) with your own gate or trigger.

There is a jumper on the pcb to select if you want glide on the s/t\h at, Entropy out, or un-slewed operation. There is also a trimmer for setting the amplitude of the incoming signal at “Comp In” which sets the frequency range of random gates. This may have to be adjusted depending on your Entropy version.

The random gate range can also be set up more as a noise oscillator by turning the pcb trim(clockwise) up or it can be set so random gates are extremely slow(trim counter clockwise) with minutes between random gates.

Width: 3hp

Panel Material: PCB

Reverse Power Protected

Current Consumption: +12v: 15mA, -12v: 10mA

Depth: 45mm or 1.75″
