Pittsburgh Modular Local Florist 2 BBD Feedback Effect

Pittsburgh Modular Local Florist 2 - Flanger effect Eurorack module - barely used, in original box with power cable & screws.

from original product description:

------------------------------------------------

Local Florist 2 from Pittsburgh Modular is a flexible time based effect for Eurorack systems that uses bucket brigade delay chips to create a wide range of controlled feedback effects. Using its versatile controls, you can patch together flanging, chorus, reverb, plucky synthesized sounds, and more, all with a warm tone thanks to its analog circuitry. The BBD chip features a delay range of 3ms to 28ms, enabling many different effects when used in conjunction with its second generation feedback circuit to create unique harmonic modulation as signal is fed back into the delay line. This enhanced feedback path allows for more feedback level before self-oscillation for a wider palette of sounds. Also onboard is a tilt control, which allows you to filter the highs or lows of the wet signal for additional timbral shaping options. Simple to use yet host to a vast array of captivating modulation and feedback effects, Local Florist 2 from Pittsburgh Modular is a beautiful bouquet of bucket brigade bliss that will enhance any patch.

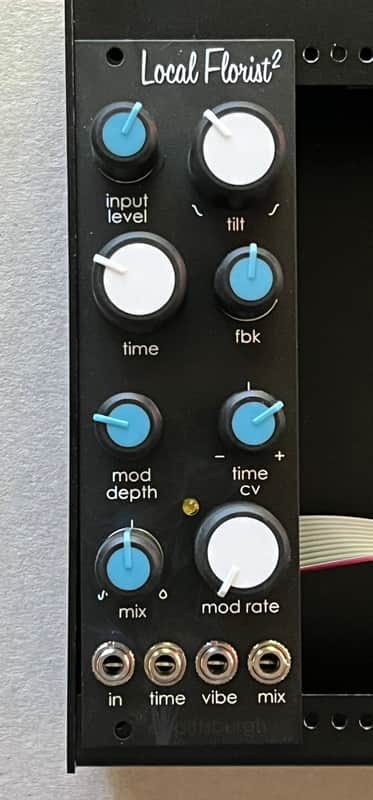

Local Florist 2 Features

Flexible BBD-based modulation and feedback effect

Create chorus, flanger, reverb, karplus strong, and many other short-delay effects

BBD delay time range from 3ms to 28ms

Time control and CV input with attenuverter

Input level control

Feedback control with improved range before self-oscillation

Modulation depth and rate controls

Mix output with blend control

Dedicated Vibe output for wet only signal

Tilt filter control adjusts spectral balance of wet signal

Product Details

Eurorack module

Width: 8hp

Depth: 35mm

Current draw: 38mA @ +12V, 26mA @ -12V, 0mA @ +5V
