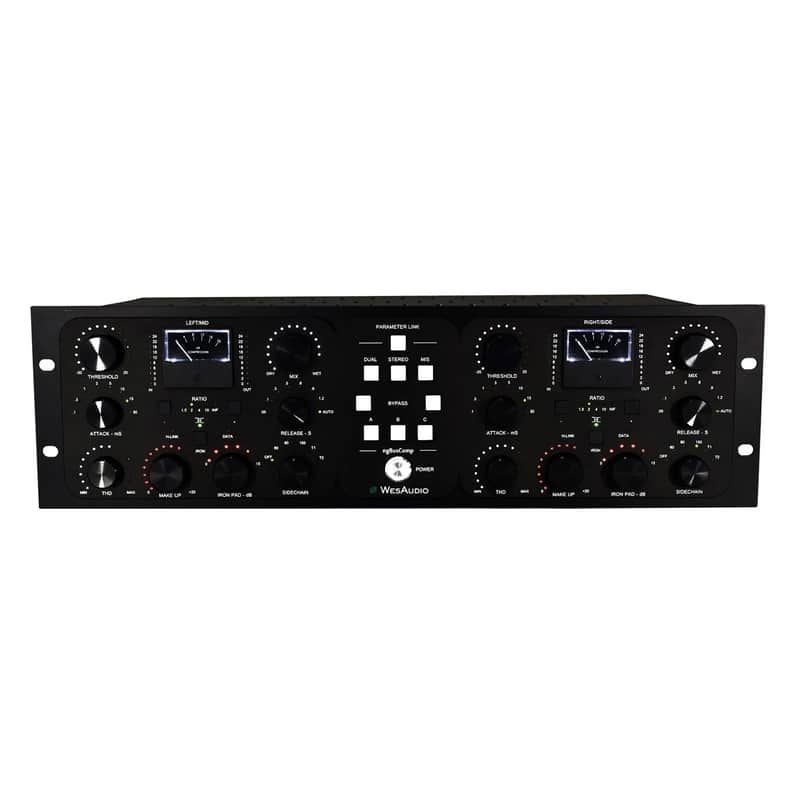

WesAudio ngBusComp Bus Compressor (B-Stock)

For over 40 years, the stereo bus compressor has been a cornerstone in mixing, often referred to as the “mix bus glue.” WesAudio elevates this classic with WesAudio ngBusComp Bus Compressor — a fully analog, dual mono, stereo, and mid-side compressor, featuring digital recall for seamless DAW integration. Experience versatile compression with Carnhill transformers, THD control, and advanced automation, blending analog warmth with cutting-edge digital precision. The ngBusComp offers a fully analog signal path with digital recall, bringing modern control to timeless sound​

TRUE QUAD VCA THAT 2181

The ngBusComp stands out as a fully analog device, boasting an impressive +24dBu of headroom for superior audio quality. While offering advanced digital control, the compressor maintains an entirely analog signal path, ensuring the renowned VCA compression sound. Equipped with four THAT 2181 VCAs in the signal path and an additional VCA for each channel’s sidechain detector, this design ensures high-performance and precise compression.

VERSATILE STEREO/DUAL MONO COMPRESSION

The detectors can be linked or unlinked at any time, enabling true stereo bus compression or dual mono compression as needed for ultimate flexibility. The channels can be linked or unlinked at any time, allowing for independent settings on each channel while still maintaining relative control. When working in Mid-Side mode, each channel can be adjusted individually, but for quick adjustments to the overall balance, engaging the “parameter link” automatically adjusts both channels’ makeup gain while preserving the volume difference.

FLEXIBLE MID-SIDE COMPRESSION SETTINGS

The compressor offers mid-side operation, allowing you to apply different compression settings to the side channel than to the middle channel, providing greater control over the stereo image. With the compressor, you have the option to choose between electronically balanced or transformer balanced output stages, with precise control over the output PAD for optimal sound shaping.

CARNHILL TRANSFORMER DRIVE

In IRON mode, the makeup gain can be used to drive the transformers, while a dedicated output PAD allows you to attenuate the signal. The PAD, a passive attenuator controlled by a relay cascade, offers up to 15dB of attenuation in 1dB steps for precise level management.

MIX KNOB: EASY PARALLEL COMPRESSION

With the MIX knob, achieving parallel compression is easier than ever. The ngBusComp allows you to automate the MIX setting directly in your DAW. Want to apply more compression during the chorus? It’s simple — just record automation using the touch-sensitive encoder or draw automation lines within your DAW for complete control.

ENHANCED THD CONTROL FOR REFINED ANALOG SATURATION

THD (Total Harmonic Distortion) enables you to saturate your signal with rich analog color. With ngBusComp, you can adjust THD from subtle warmth to prominent saturation using a dedicated knob, allowing for precise control over the distortion effect.

PREDEFINED SIDECHAIN FILTERS

The sidechain filter functionality allows you to shape the signal before it reaches the compressor’s detector. This includes three high-pass filters at 60, 90, and 150 Hz, along with two specialized tilt filters designed for fine-tuned control.

FIVE RATIO SETTINGS

The compressor offers selectable ratio settings, including 1.5:1 and 2:1 for smooth mixbus compression, 4:1 and 10:1 for versatile applications, and an INF mode to aggressively clamp down on transients. The compressor allows you to create custom sidechain signals, giving you independent control over each channel for more precise compression management. Even when using the compressor as a pure analog signal processor, you can seamlessly switch between three memory settings with the simplicity of a button press.

USB OR ETHERNET CONNECTIVITY

ngBusComp supports direct USB connection for easy setup, or you can manage it over your local network by simply connecting it to your router via an Ethernet cable. Each channel provides detailed metering for input, output, and gain reduction. Additionally, the analog metering is fully mirrored within the plug-in instance for convenient monitoring.

ANALOG AUTOMATION

Everyone has wanted to adjust device settings based on different song sections, and now it’s possible! Simply draw automation lines in your DAW, and your analog device will follow suit. Plus, you can use the five touch-sensitive encoders to record automation directly into your DAW for seamless control.

WESAUDIO NGBUSCOMP BUS COMPRESSOR FEATURES:

• Fully analog design with a +24dBu headroom for exceptional signal clarity
• Supports both dual mono and stereo compression modes
• Features mid-side processing for enhanced flexibility in stereo imaging
• Offers two distinct output stages for versatile sound shaping
• Includes an IRON PAD, a passive attenuator for transformer-driven saturation in IRON mode
• Seamless DAW integration with real-time recall via flexible plug-in control
• Can be managed through the standalone WesAudio software application
• Equipped with a dedicated mix knob for effortless parallel compression
• Provides precise metering for input, output, and gain reduction on both channels
• Incorporates a proprietary THD control for adjustable harmonic distortion
• Includes multiple sidechain filter options for enhanced signal control
